| Place of Origin: | CHINA |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT/western union/paypal |
| Supply Ability: | 1000 |

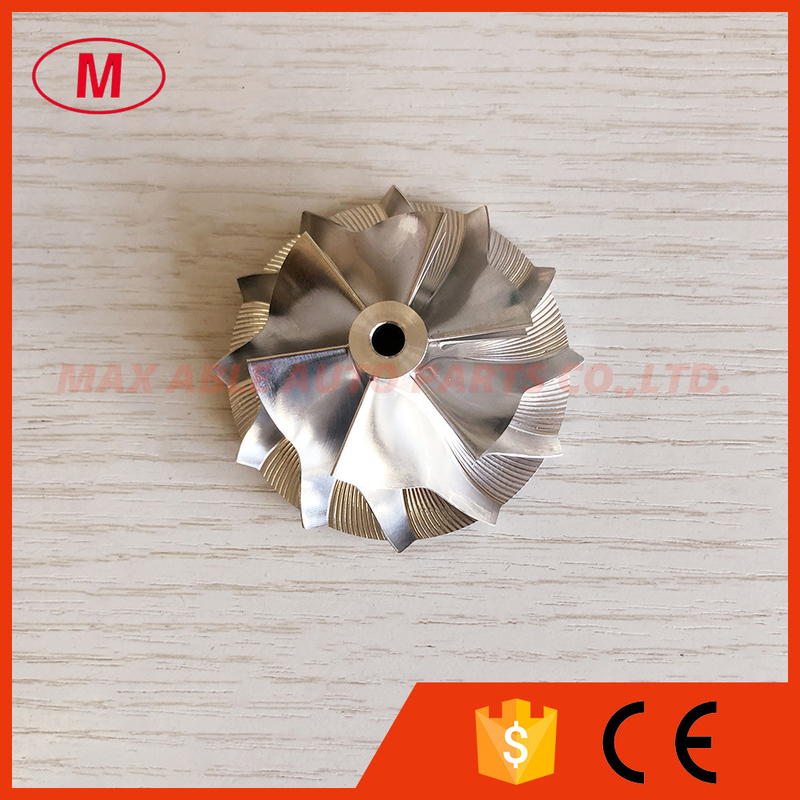

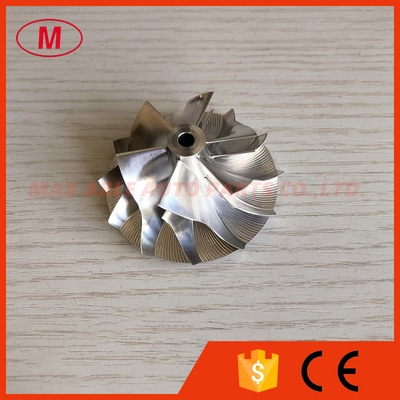

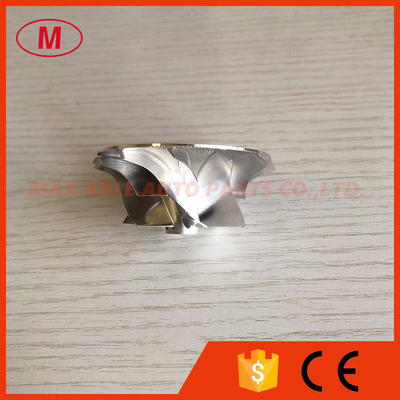

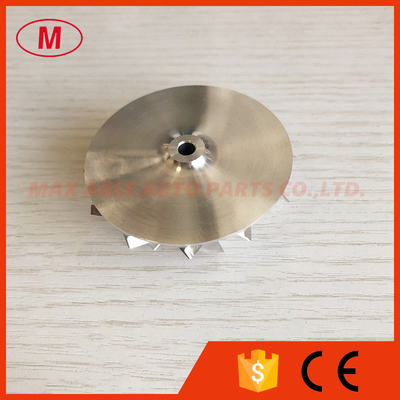

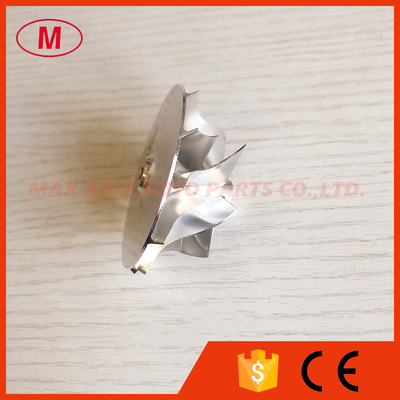

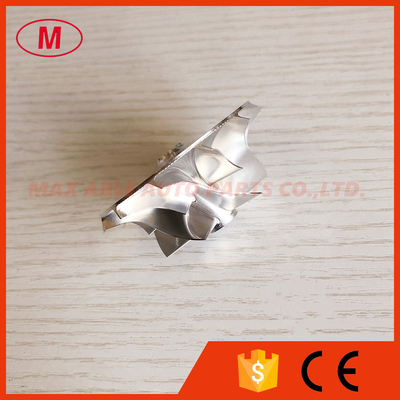

1. K04 5306-123-2047 40.50/56.08mm 6+6 blades high performance aluminum 2618/milling/billet compressor wheel for 5304-970-0189
2.SIZE:
Nose diameter:10.95mm
inducer:40.50mm
Exducer:56.08mm
Tapered tip exducer :59.62mm
tip height:4.06mm
trailing angle:55 degree
Superback:2.60mm
Overall height:27.70mm
bore size :4.61mm
bore type:through
cutback:2.1
splitter height:13.80mm
sp height angle:-3.40
Blade height:23.00mm
6+6 blades
It is for OE compressor housing.
tapered tip angle:30 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
