| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |

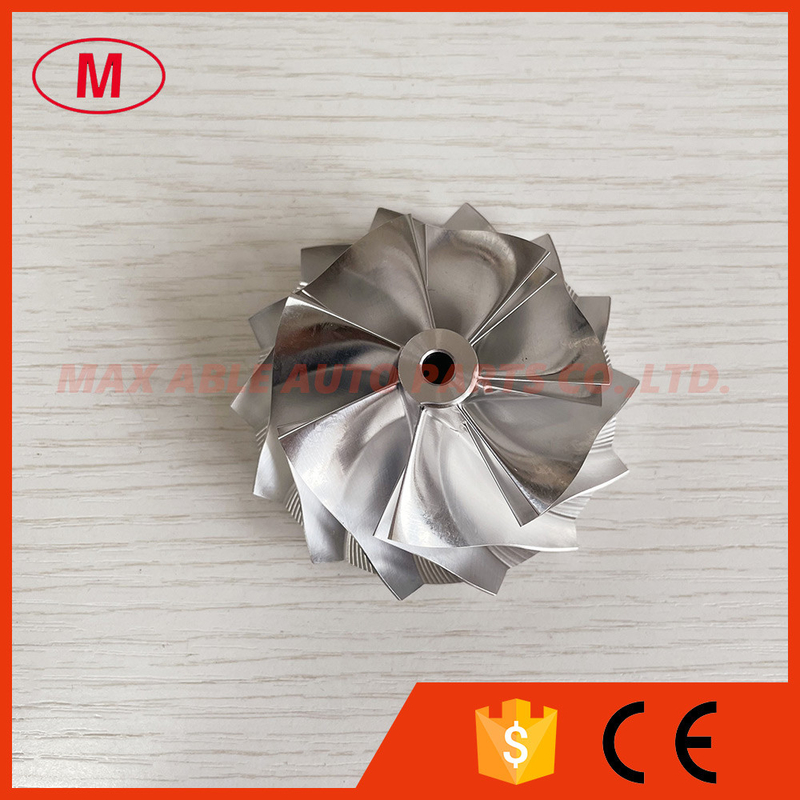

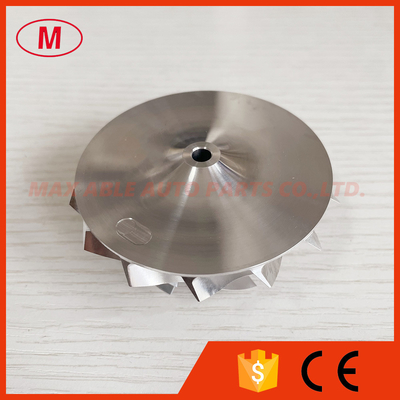

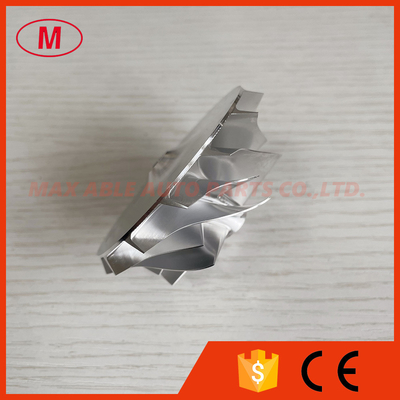

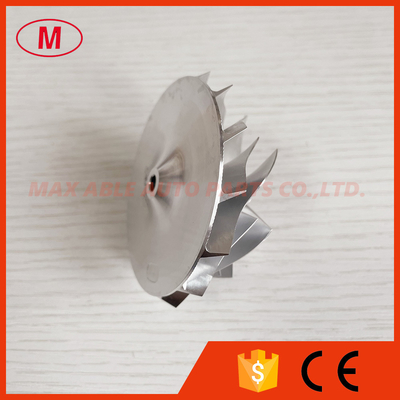

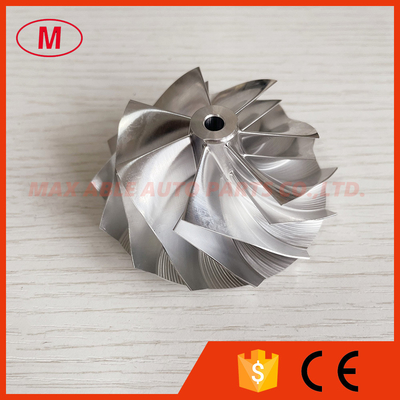

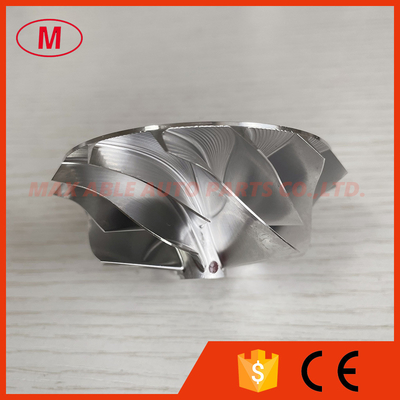

1.Model:GT15-25 FORWARD
2. GT15-25 54.28/67.40mm 7+7 Blades high performance turbo billet/aluminum 2618/Milling compressor wheel
3.Size:
Nose diameter:12.40mm
Inducer:54.28mm
Exducer:67.40mm
Tapered tip exducer:73.48mm
Tip height:6.26mm
Trailing angle:60 degree
Superback:3.80mm
Bore:5.08mm
bore type:through
Cutback:6.7mm
Overall height:32.40mm
SP Height angle:-5.00
Blades height:26.33mm
Splitter height:18.00mm
7+7 blades
Tapered tip angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
6.Application:
858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S
All the compressor wheels have been balanced.
