| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | GTX3576 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:GTX3576 forward

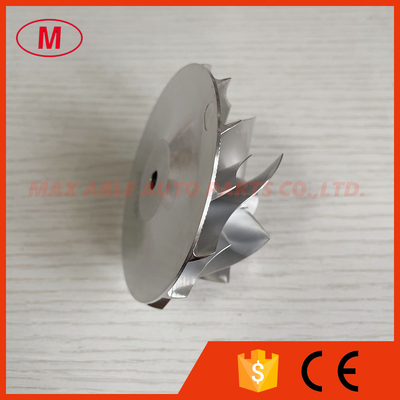

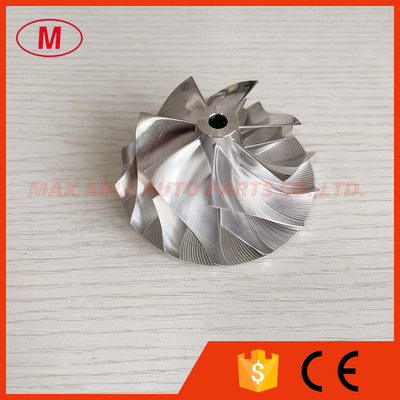

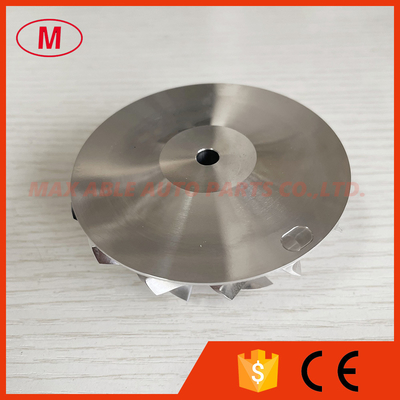

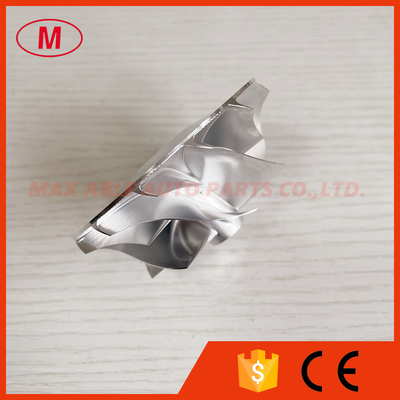

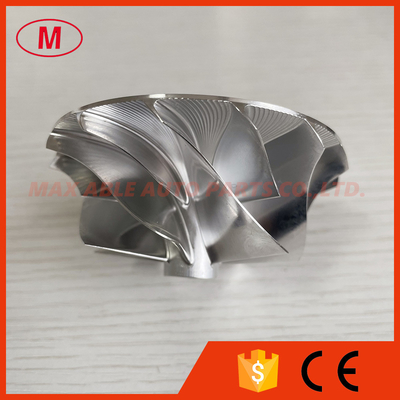

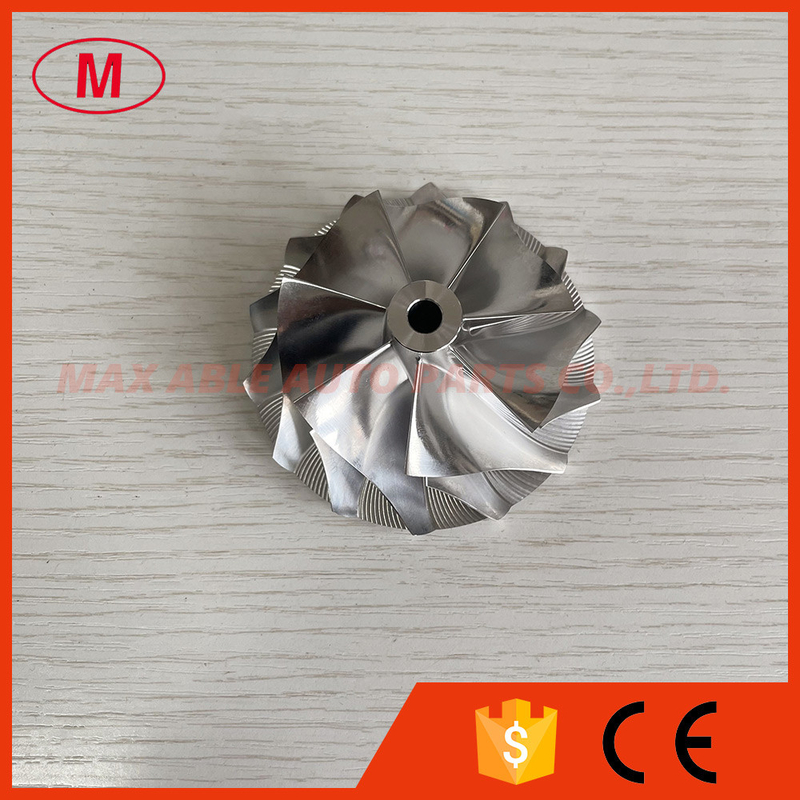

2. GTX3576 58.26/76.45mm 7+7 blades Turbocharger Milling/aluminum 2618/billet compressor wheel
3.Size:
Nose Diameter:14.00mm
inducer:58.26mm
Exducer:76.45mm
Tapered tip exducer:79.00mm
Tip height:6.17mm
Overall height:35.65mm
Superback:2.20mm
Bore size:6.36mm
Bore type:through
Trailing angle:50 degree
Cutback:5.6mm
SP Height Angle:0.00
Blades height:29.56mm
Splitter Height:15.75mm
7+7 blades
Forward rotation
Tapered tip angle:18.8 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
All the billet compressor wheels have been balanced.
