1. MODEL:GT15-25 forward

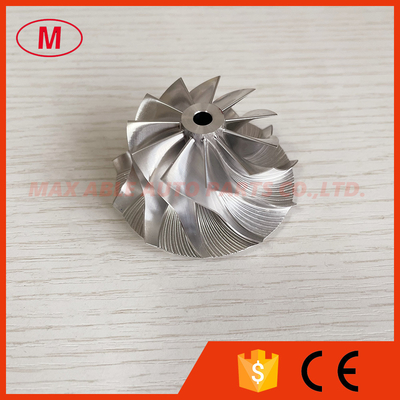

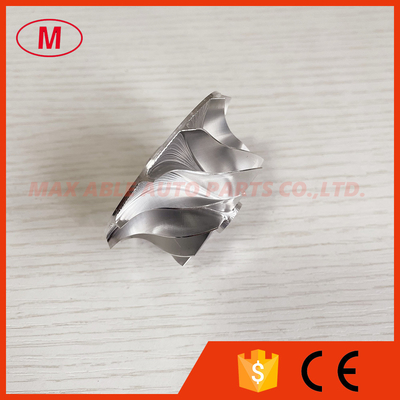

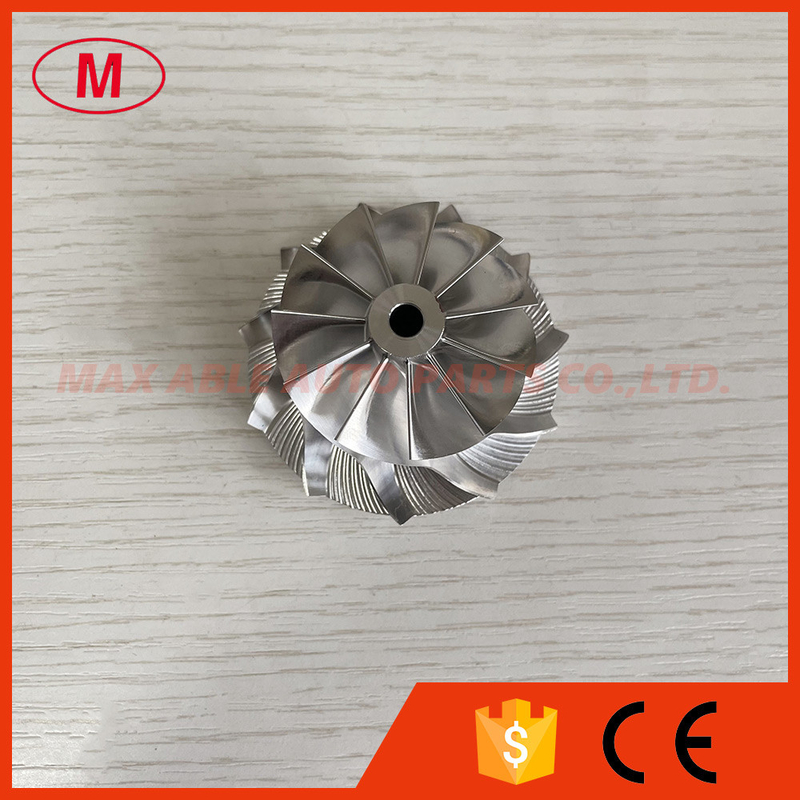

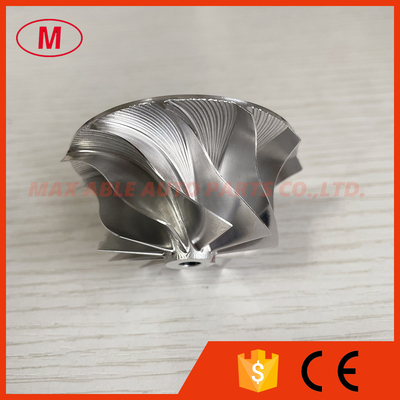

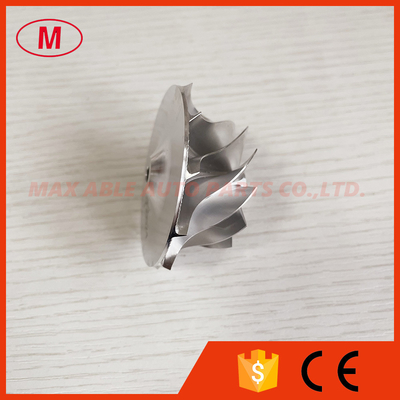

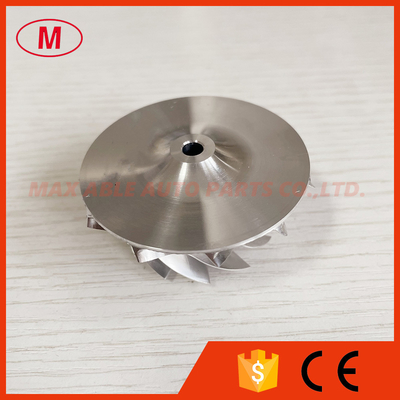

2.GT15-25 436563-0001/436563-0009/703361-0010 1102-022-400 41.47/55.90mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel for 700935-0001, 700935-0002, 700935-0003, 700935-0004, 700935-0006, 700935-0007, 704361-0004, 704361-0005, 704361-0006, 704361-0010, 711009-0001, 711009-0002, 711009-0003, 712541-0001, 712541-0002, 712541-0003, 712541-0004, 712541-0005, 712541-0006, 712541-0007, 715568-0001, 715568-0002, 721204-0001, 727463-0001, 727463-0002, 727463-0003, 727463-0004, 727463-0006, 742289-0001, 742289-0002, 742289-0003, 742289-0004, 750510-0001, 751578-0001, 751578-0002, 751758-0001, 751758-0002, 763263-0002, 763263-0003, 763263-0004, 763263-0006 BMW / Land Rover / Mercedes / Volkswagen
3.Size:
Nose diameter:11.50mm
Inducer:41.47mm
exducer:55.90mm
Tapered tip exducer:59.46mm
Tip height:4.08mm
Superback:3.70mm
bore size :5.08mm
bore type:through
Overall height:30.82mm
Cutback:4.0mm
Trailing Angle:60 degree
SP height angle:0.00
Blades height:25.10mm
Splitter height:0.00mm
11+0 blades forward
It is for OE compressor housing.
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement ,the minimum order is 5pcs
All the compressor wheels have been balanced.
