| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:K04 forward

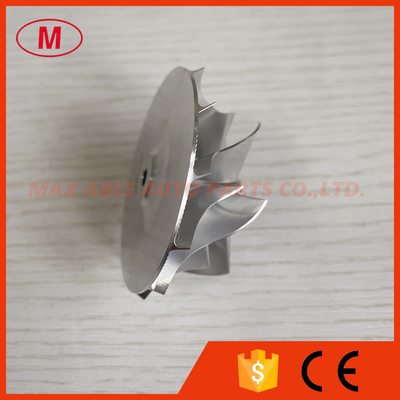

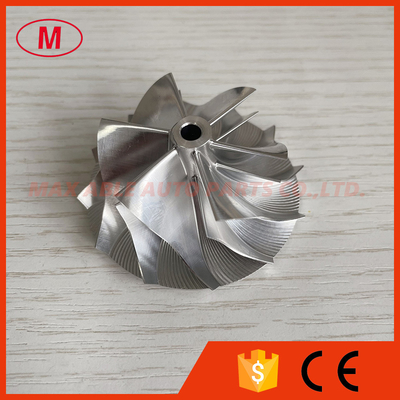

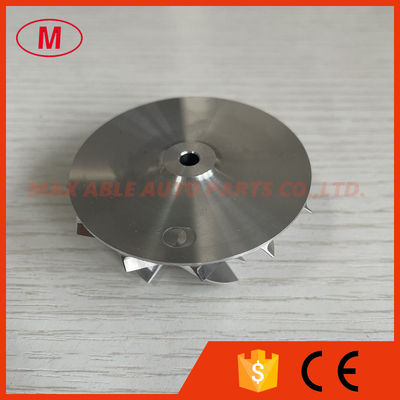

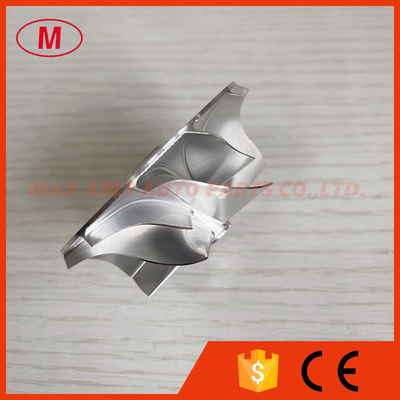

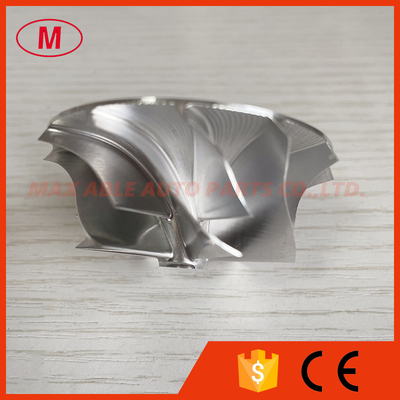

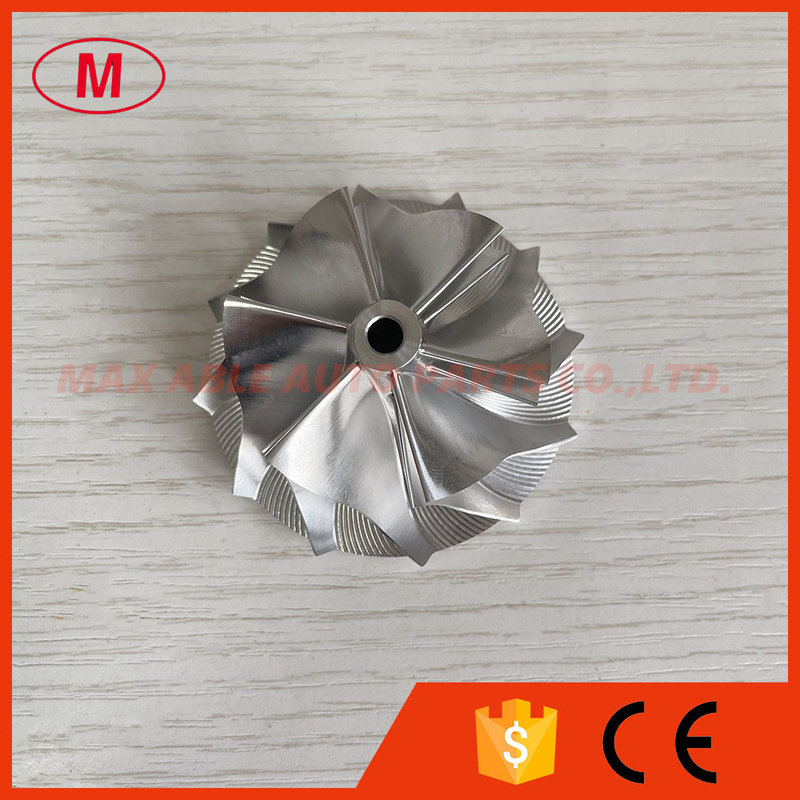

2. K04 43.50/56.08mm 6+6 blades 5306-123-2016 upgrade performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.38mm
Inducer:43.50mm
Exducer:56.08mm
Tapered tip Exducer:59.43mm
Tip height:3.90mm
Superback:1.80mm
Bore size :4.61mm
bore type:through
Overall height:25.60mm
Trailing Angle:60 degree
Cutback:3.0mm
Blade height:22.16mm
SP height Angle:-1.00
Splitter height:15.10mm
Tapered tip Angle:30 degree
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
All the billet compressor wheels have been balanced.
