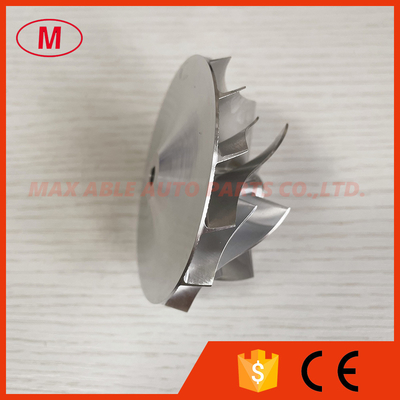

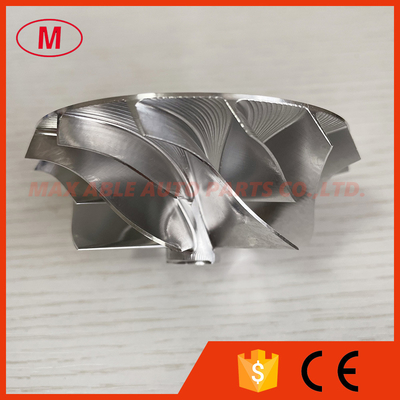

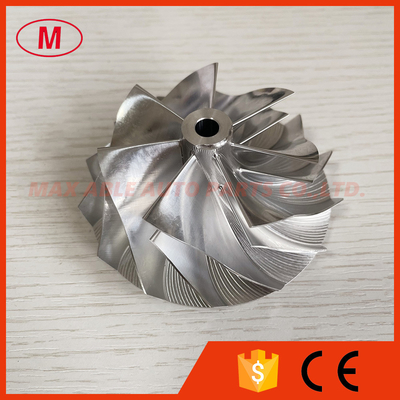

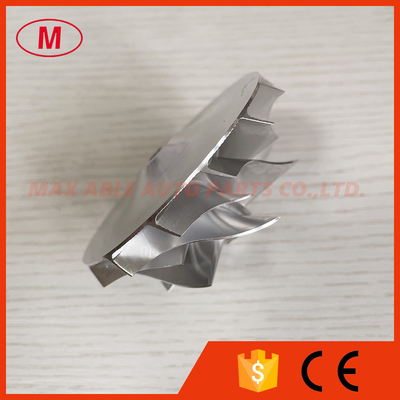

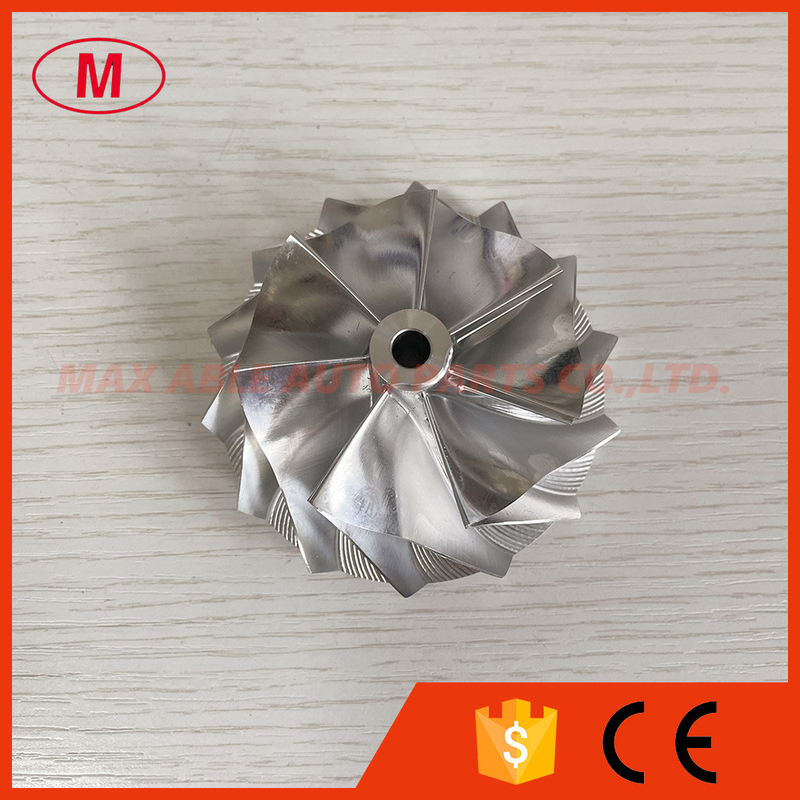

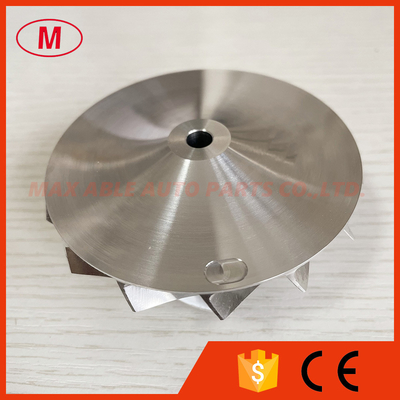

T04S 409535-0001 59.05/76.07mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel for racing

Minimum Order Quantity:	1PC
Price:	DISCUSS
Packaging Details:	neutral packing
Delivery Time:	3-7 DAYS
Payment Terms:	T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

1. MODEL:T04S forward

2.T04S 409535-0001 59.05/76.07mm 7+7 blades turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.56mm

Inducer:59.05mm

exducer:76.07mm

Tapered tio exducer:80.42mm

Tip height:7.70mm

Superback:4.97mm

bore size :6.35mm

bore type:through

Overall height:35.97mm

Cutback:0.0

Trailing Angle:65 degree

SP height angle:-4.00

Blades height:27.27mm

Splitter height:17.45mm

7+7 blades

forward rotation

It is for OE compressor housing

Tapered tip Angle:18 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

T04S 409535-0001 59.05/76.07mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel for racing
