| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GBC22-350 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

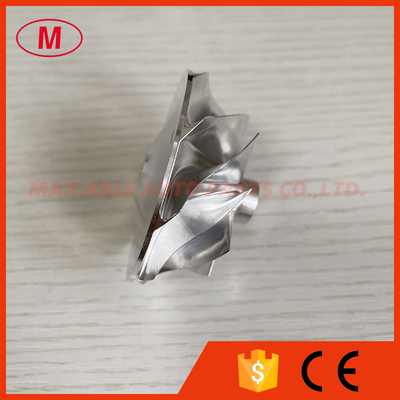

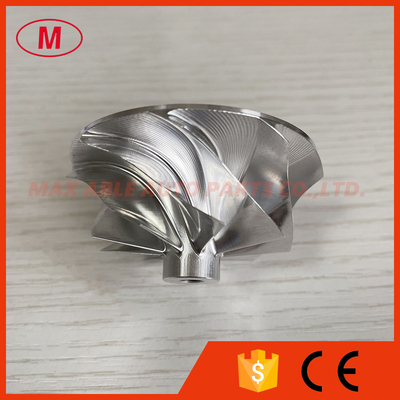

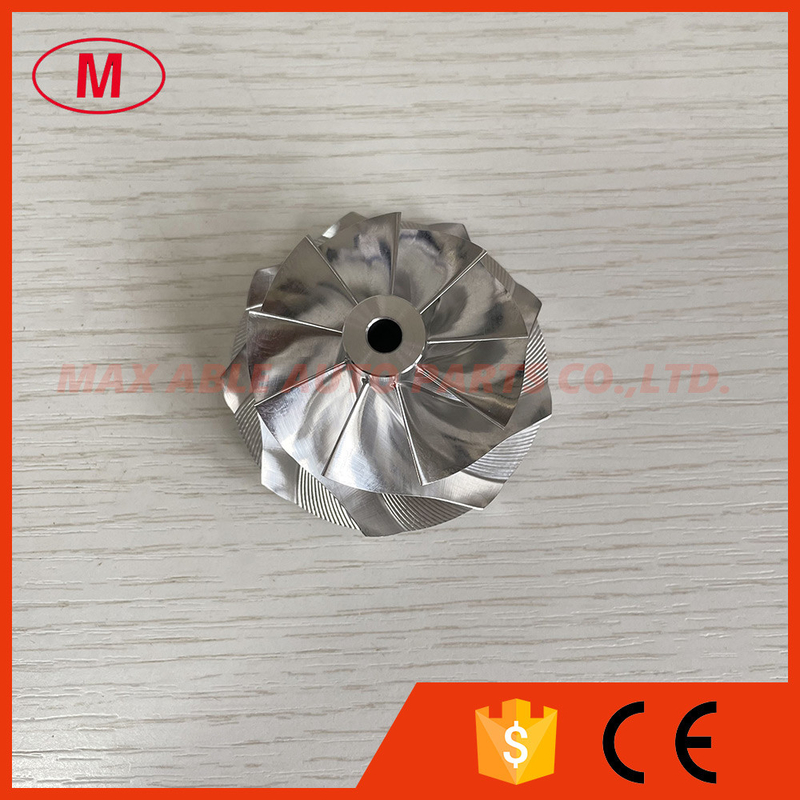

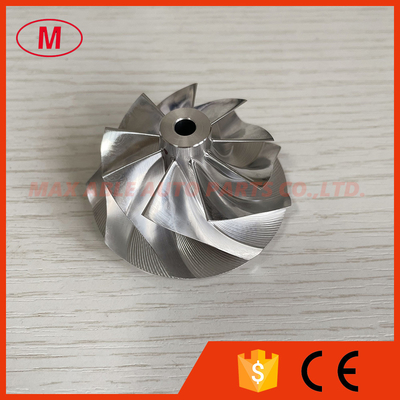

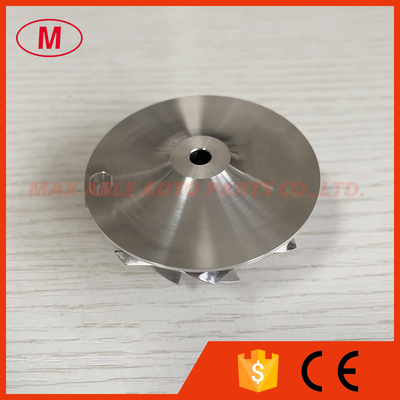

1.Model:GBC22-350 forward
3.Size:
Nose diamter:12.44mm
inducer:44.10mm
Exduder:56.02mm
Tapered tip exducer:57.90mm
Tip height:4.97mm
Superback:3.81mm
Overall height:30.92mm
bore size :5.08mm
bore type:through
Trailing angle:35 degree
Cutback:6.6
SP height angle:0.00
Blade height:21.57mm
Splitter height:0.00mm
Fit for OE compressor housing
9+0 blades
Forward rotation
Tapered tip angle:13.5 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
All the billet compressor wheels have been balanced.
