Model Number: | RHF4H |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
Size: | 41.00/52.00MM | Type: | Turbochargers |
---|
1.Model:RHF4H forward

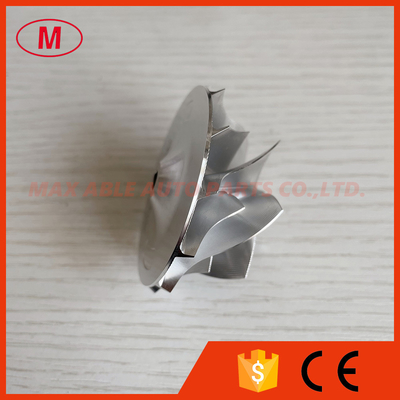

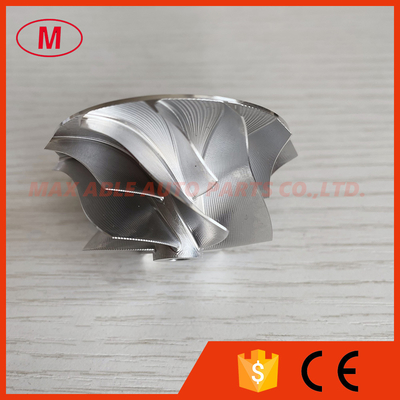

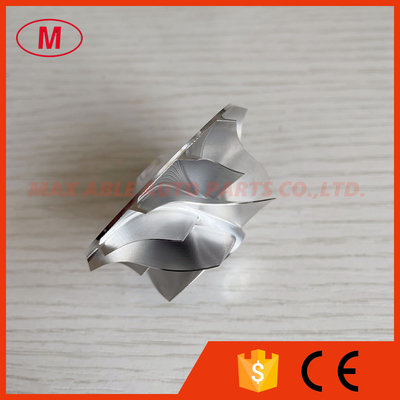

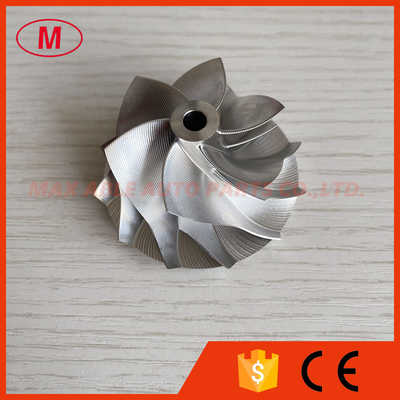

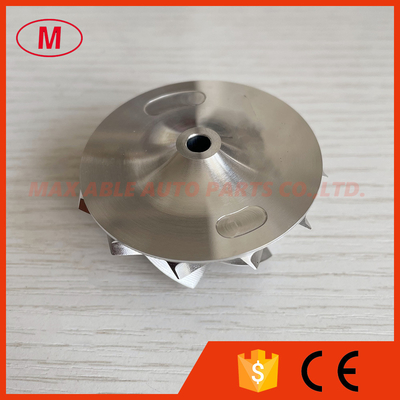

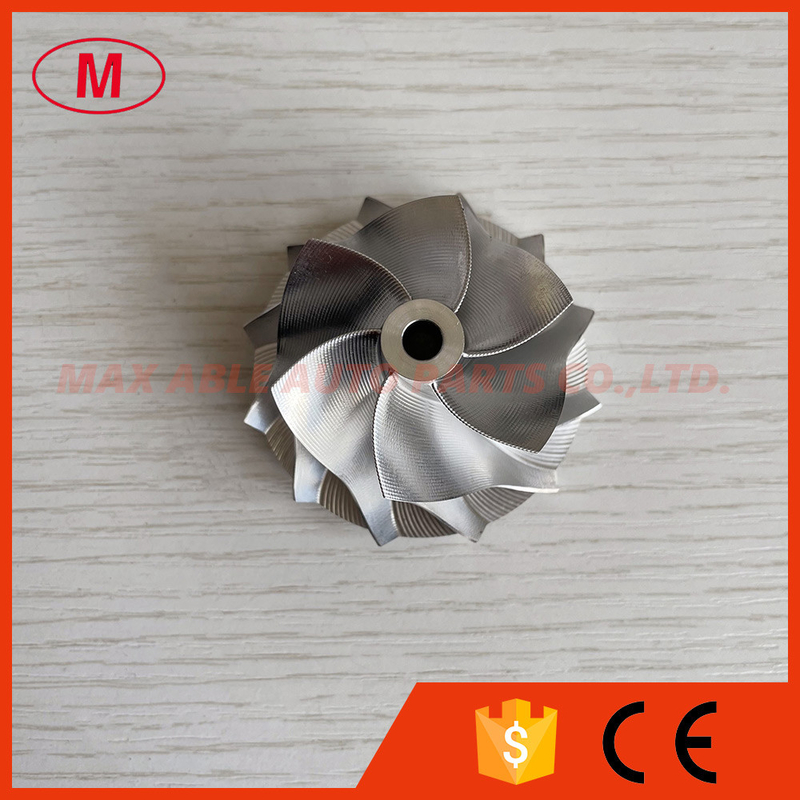

2.RHF4H 41.00/52.00mm 6+6blades Point Milling_Air Curve, Performance Design turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose Diameter:10.55mm
inducer:41.00mm
Exducer:52.00mm
Tapered tip exducer:55.70mm
Tip height:4.00mm
Superback:3.86mm
Overall height:29.61mm
bore size :5.10mm
Bore type:through
Trailing angle:50 degree
Cutback:0.0
SP Height angle:0.00
Splitter height:13.50mm
Blade height:23.65mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
