Place of Origin: | CHINA |
Brand Name: | NO |
Model Number: | TD03 |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT/western union/paypal |
Supply Ability: | 1000 |

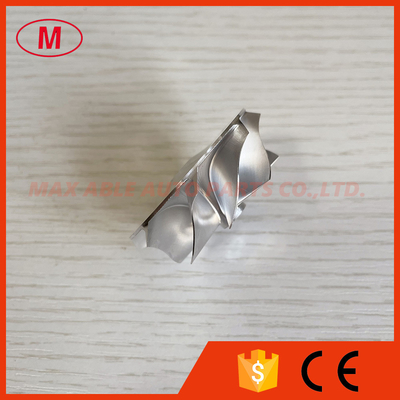

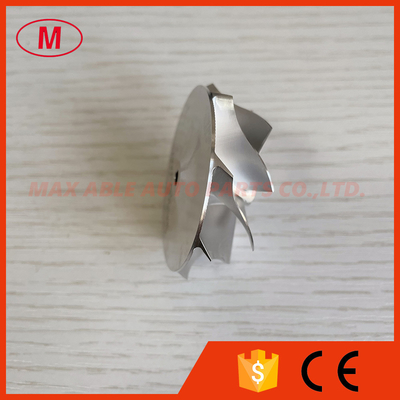

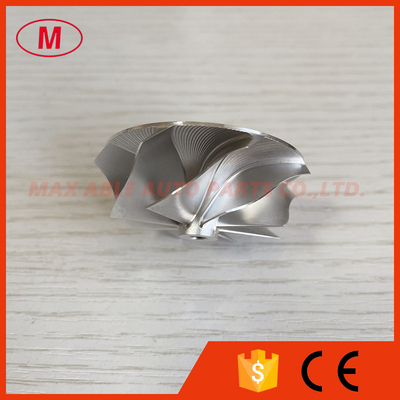

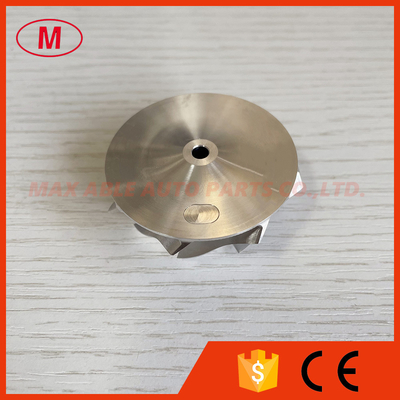

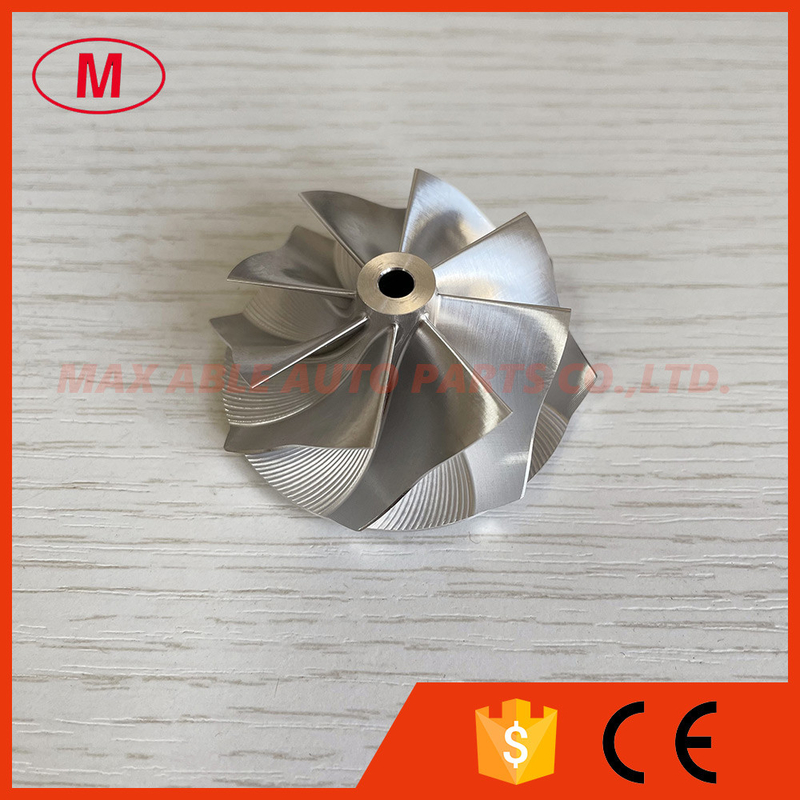

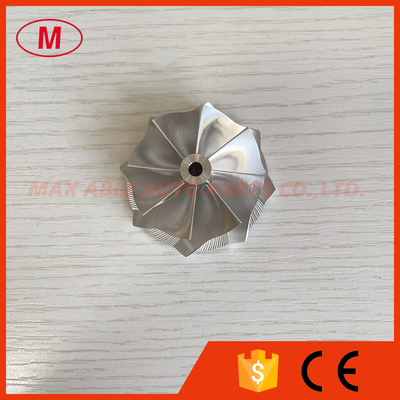

1. TD03 reverse 40.00/46.00mm 8+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel
2.Size:
Nose diameter:9.00mm
Inducer :40.00mm
Exducer:46.00mm
Tapered tip exducer:50.07mm
Tip height:4.53mm
superback:1.70mm
Overall height:19.70mm
bore size:4.01mm
Trailing angle:45
Cutback:0.7
Blades height:16.00mm
Sp height angle:0.00
Splitter height:0.00mm
8+0 blades
reverse rotation
Tapered tip angle: 30 degree
It is custom size ,please check carefully before buying
3.High quality and competitive price.
We have more size and we can produce as your requirement .
the minimum order is 5pcs
All the compressor wheel have been balanced.
