| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTB4708 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

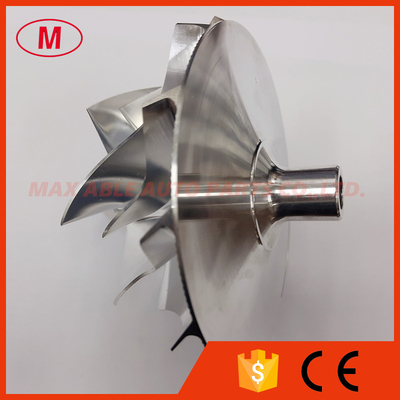

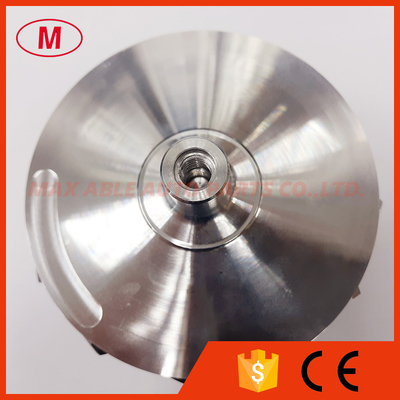

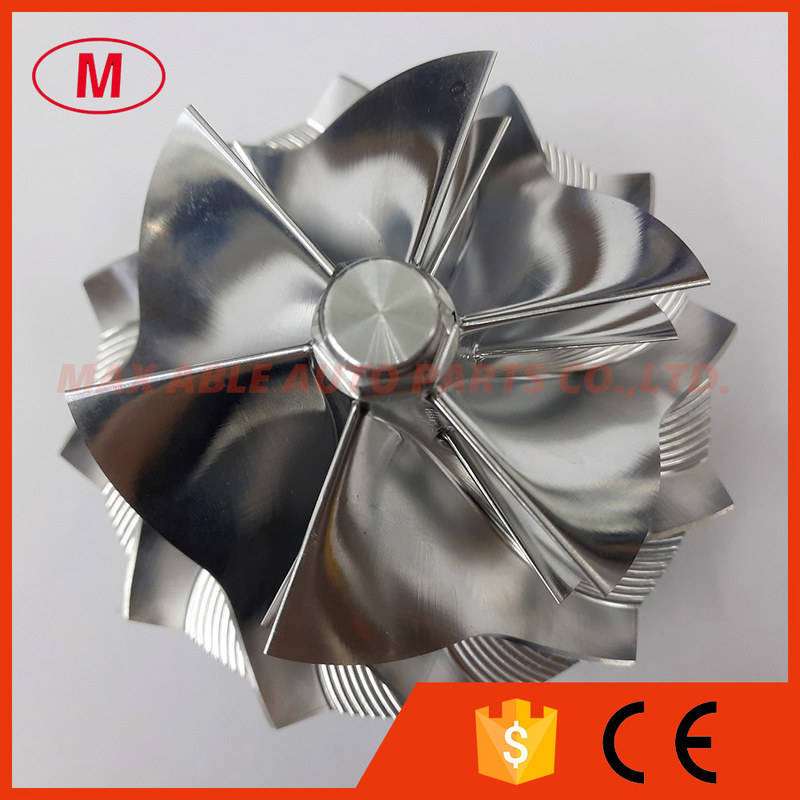

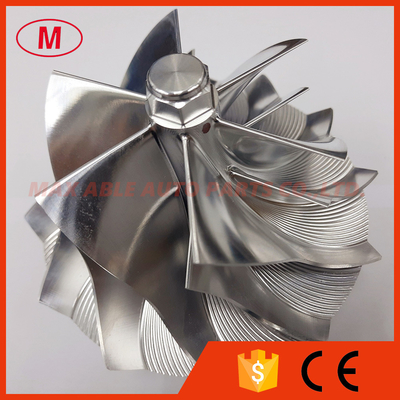

1. GTB4708 704746-0002 78.65/108.00mm 6+6blades high performance turbo milling/aluminum 2618/billet compressor wheel for 707866-0001/451686-0024 Detriot
2.Size :
Nose diameter:17.14mm
Inducer :78.65mm
Exducer:108.00mm
Tapered tip exducer:115.85mm
Tip height:7.80mm
superback:26.98mm
Overall height:86.70mm
bore size:10.32mm
Bore type:Boreless-3/8-16G-LHT
Trailing Angle:45 degree
Cutback:2.00mm
sp height angle:-8.60
Splitter height:32.75mm
Blade height:48.45mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
3.High quality and competitive price.
4.if you want more details, please send email to me.
We can produce as your requirement.The minimun order 5pcs.
All the turbine shaft and compressor wheel have balanced .
The more models we also have.
