Customer Satisfy is the eternal pursue of corporation.
Brand Name: | no |
Certification: | ISO |
Model Number: | GT28 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | DISCUSS |
Packaging Details: | Neutral packing |
Delivery Time: | 3-7 DAYS |
Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
Supply Ability: | 1000PCS |

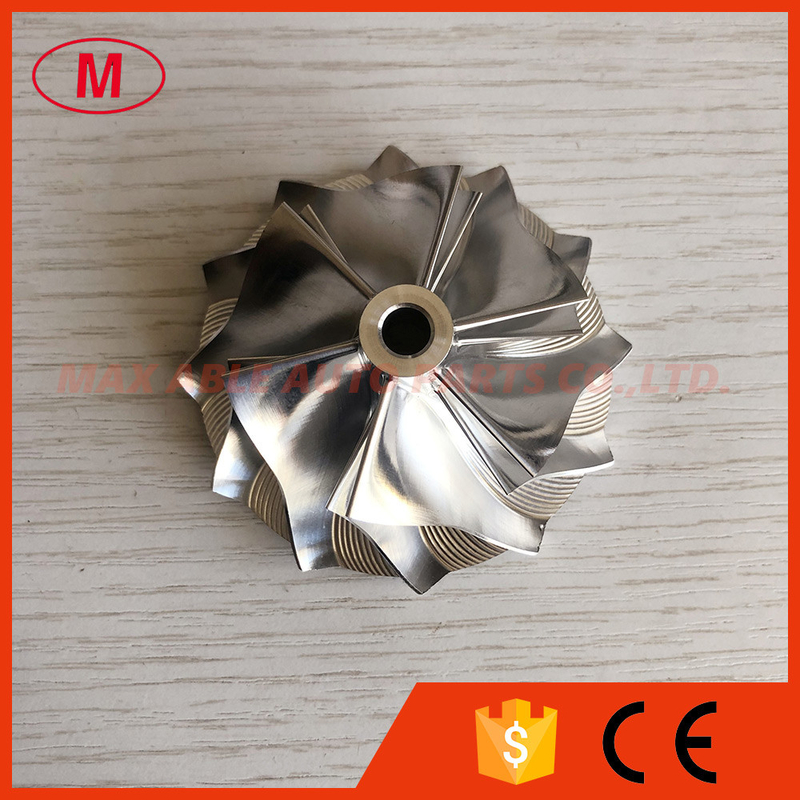

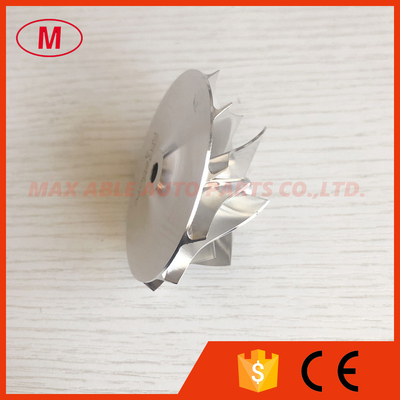

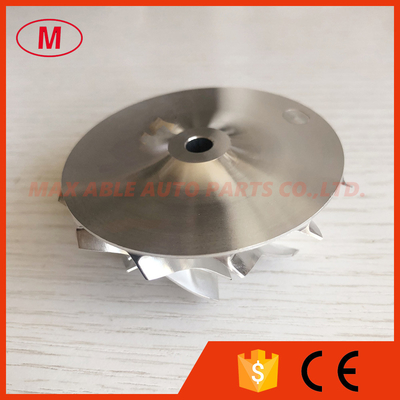

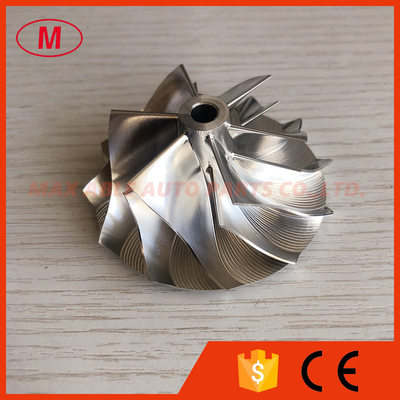

1.Model:GT28 forward
3.Size:
Nose diamter:11.72mm
inducer:47.10mm
Exduder:61.98mm
Tapered tip exducer:66.46mm
Tip height:4.88mm
Superback:2.32mm
Overall height:29.50mm
bore size :6.00mm
bore type:through
Trailing Angle:45 degree
Cutback:6.00mm
SP Height Angle:-3.00
Blade height:25.05mm
Splitter Height:14.10mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have
