| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GTX2860R |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 100pcs |

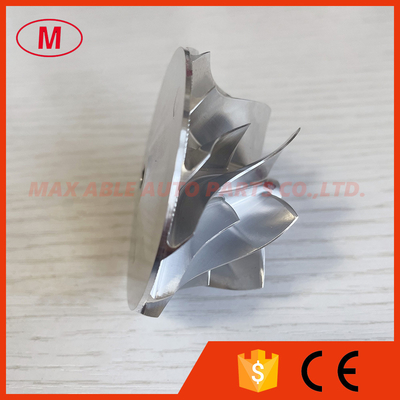

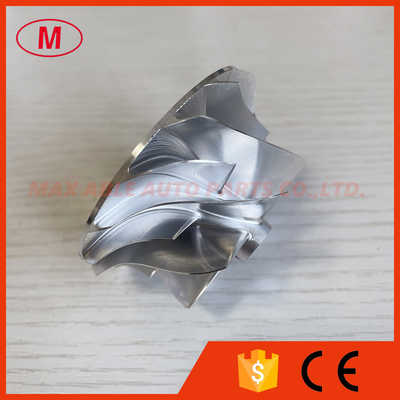

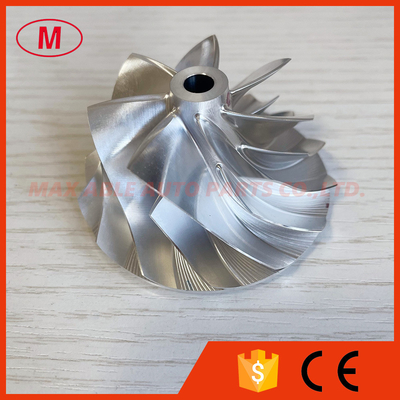

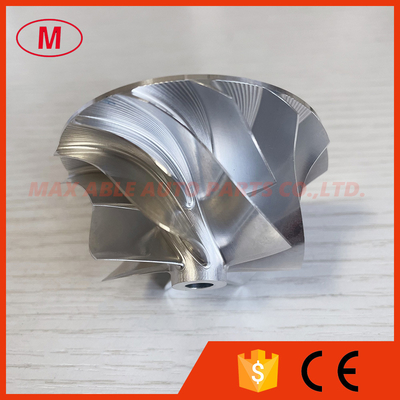

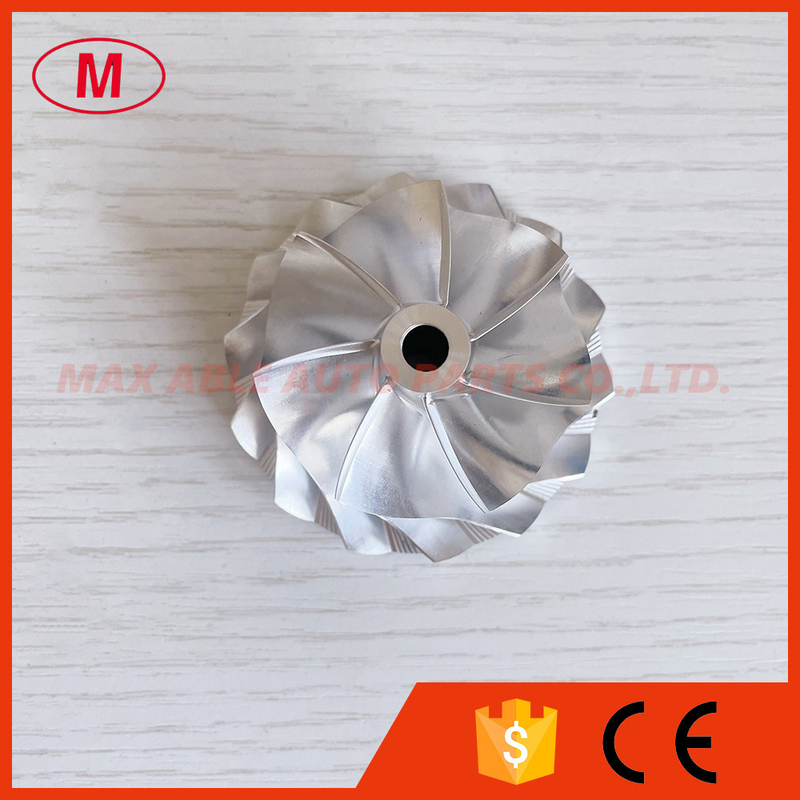

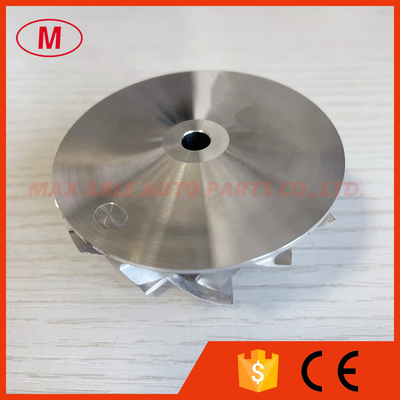

1.Model:GTX2860R forward
3.Size:
Nose diamter:11.55mm
inducer:45.66mm
Exduder:60.00mm
Tapered tip exducer:62.00mm
Tip height:5.27mm
Superback:2.23mm
Overall height:32.75mm
bore size :6.01mm
bore type:through
Cutback:0.0mm
Trailing angle:35 degree
SP Height Angle:0.00
Blade height:27.20mm
Splitter Height:15.53mm
7+7 blades
Forward rotation
Fit OE compressor housing
Tapered tip angle:13.5 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
