| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | HX40 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 100pcs |
1. MODEL:HX40 Forward

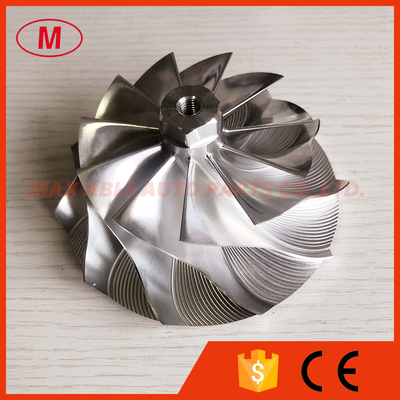

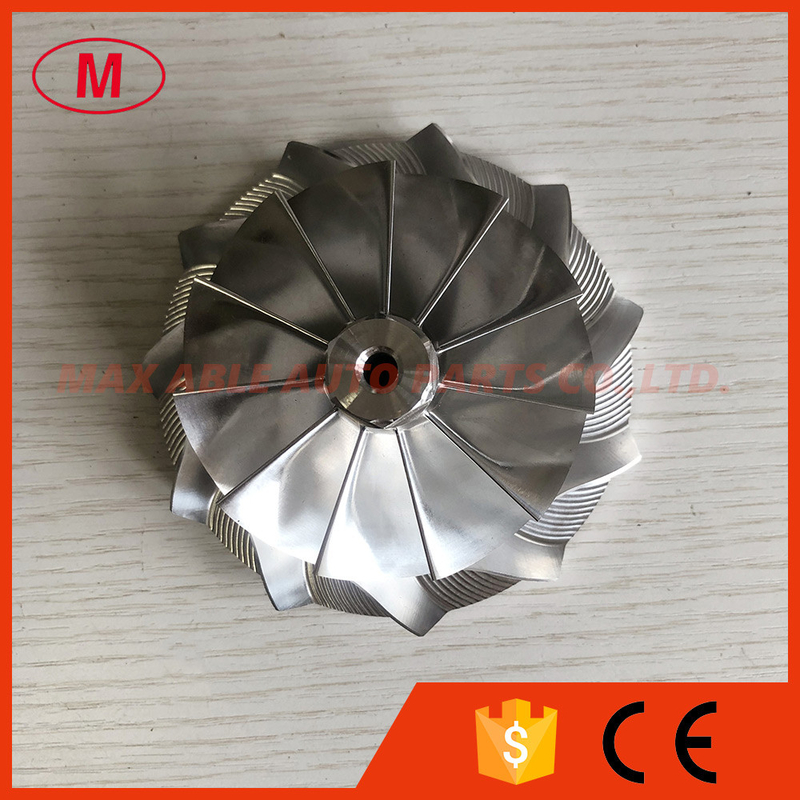

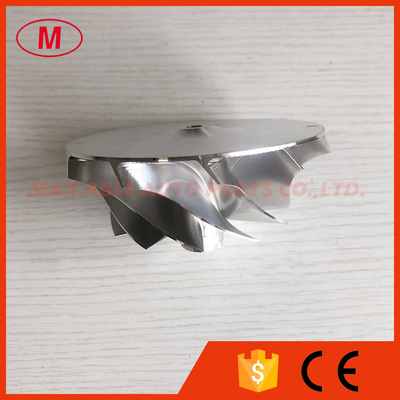

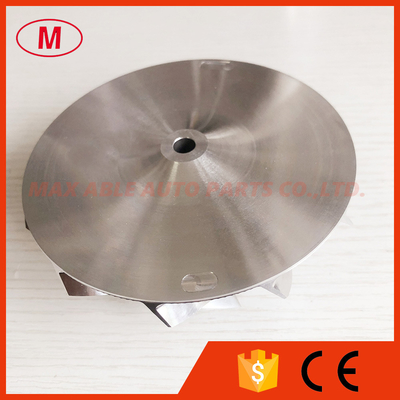

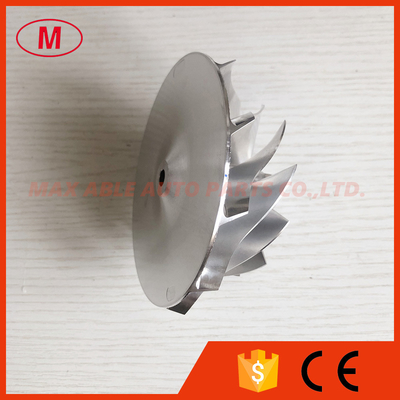

2.HX40 75.83/102.75mm 11+0 blades Turbocharger milling/Aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:19.74mm
inducer:75.83mm
Exducer:102.75mm
Tapered tip exducer:107.92mm
Tip height :8.95mm
superback:3.00mm
Bore size:7.00mm
Bore type:Threaded-M7x1.0LHT
Overall height:52.00mm
Trailing angle:60 degree
Cutback:0.00
Sp Height angle:0.00
Splitter height:0.00
Blade height:36.58mm
Tapered tip angle: 18 degree
11+0 blades Forward rototion
It is custom size ,please check carefully before buying.
