1.Model:Supercharger forward

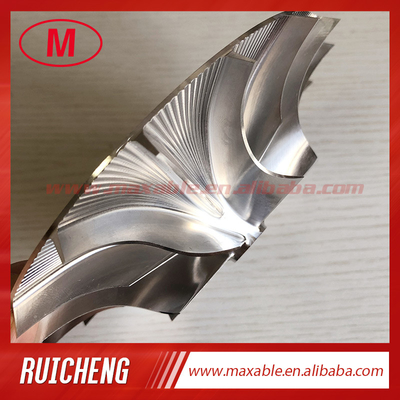

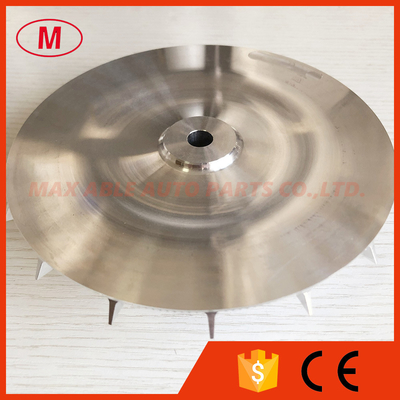

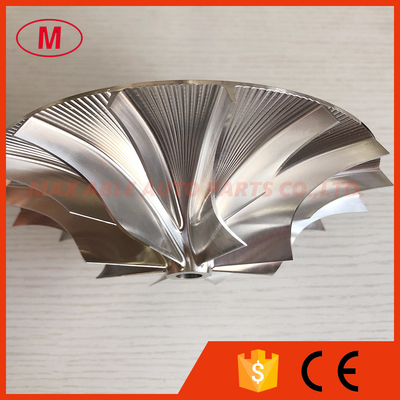

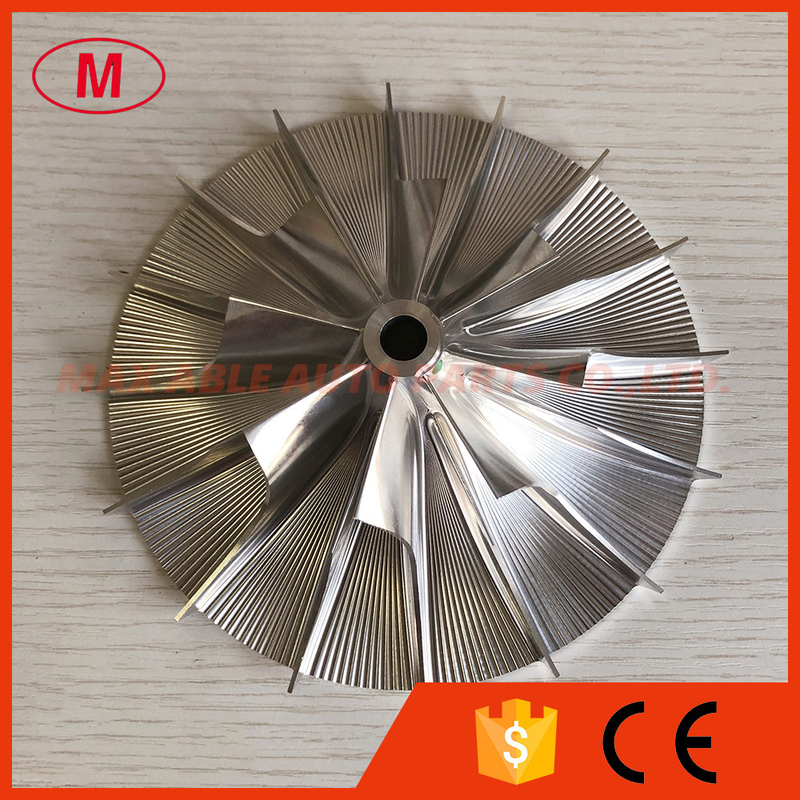

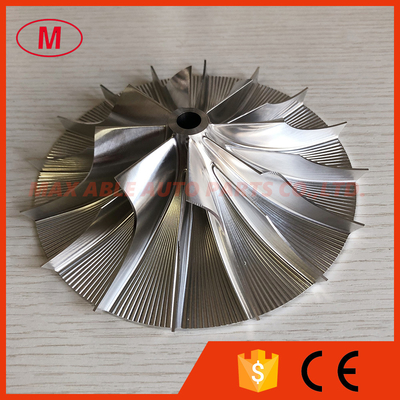

2.Supercharger 8+8 blades 77.22/146.05mm turbo/milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose diameter:17.00mm
inducer:77.22mm
Exducer:146.05mm
Tapered tp exducer:154.46mm
Tip height:8.78mm
Superback:0.78mm
Overall height:36.72mm
bore size :10.00mm
Trailing angle :90
Cutback:0.00mm
Sp height Angle:8.00degree
Splitter Height:18.00mm
Blade height:33.62mm
8+8 blades
Forward rotation
Tapered tip Angle:30 degree
Fit for OE compressor housing
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheel have been balanced.
We can produce as your requirement.
