| Model Number: | T04B |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 54.06/71.40mm | Type: | Turbochargers |
|---|

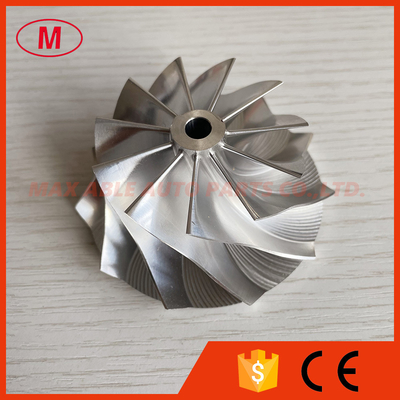

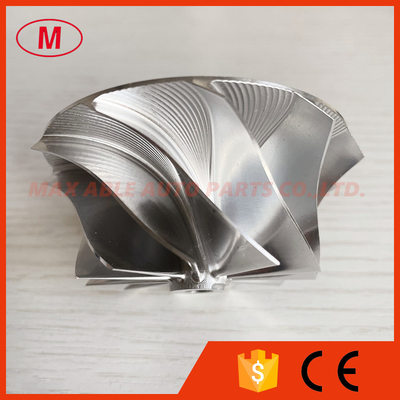

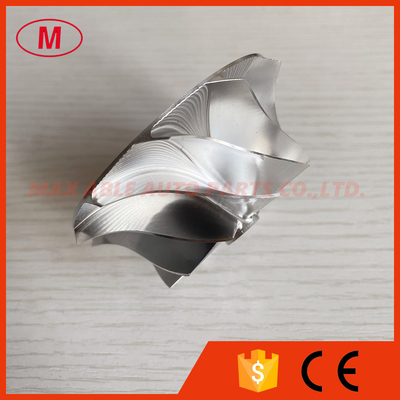

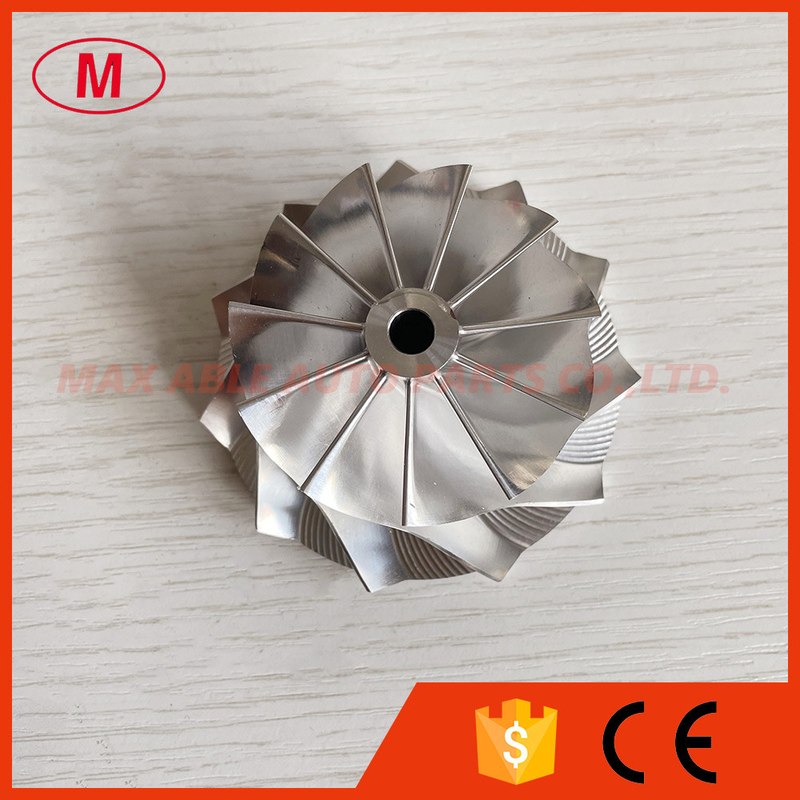

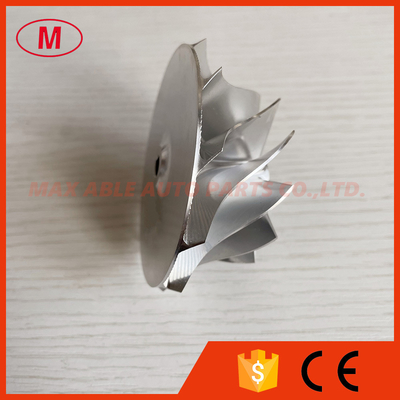

1.Model:T04B forward
3.Size:
Nose diamter:13.32mm
inducer:54.06mm
Exduder:71.40mm
Tapered tip exducer :76.51mm
Tip height:5.43mm
Superback:1.68mm
Overall height:33.92mm
bore size :6.35mm
Traling angle:45 degree
Cutback:0.00
SP height angle:0.00
Splitter height:0.00
Blade height:29.88mm
11+0 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
