| Model Number: | T04E |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100PCS |
1. MODEL:T04E FORWARD

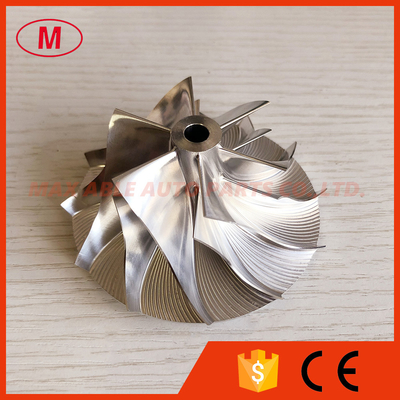

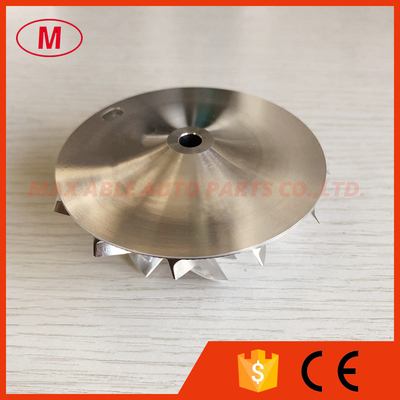

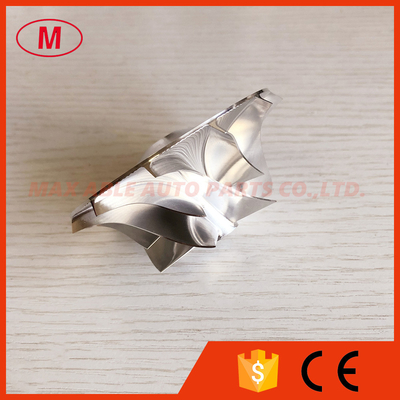

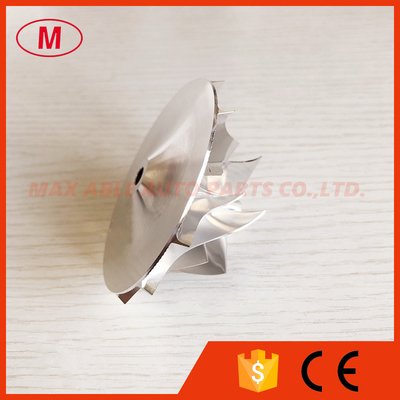

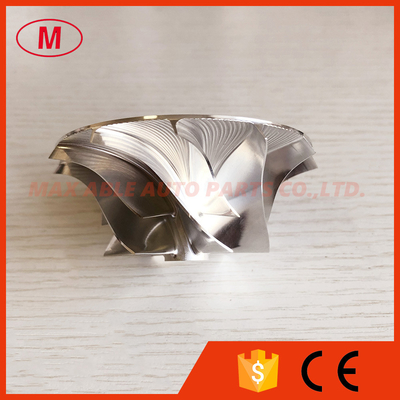

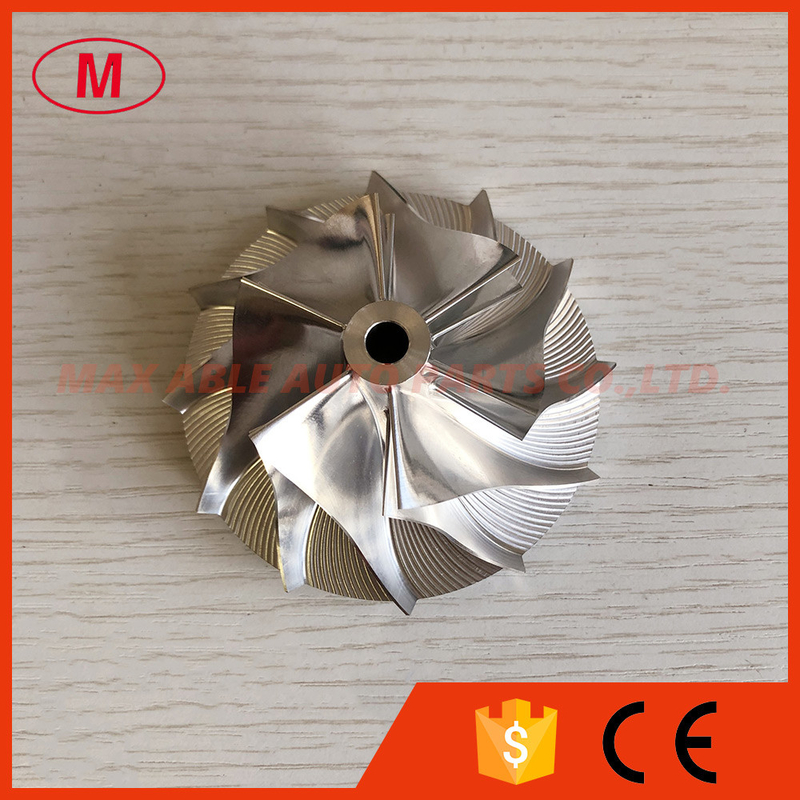

2.T04E 48.56/74.99mm 6+6 blades 442293-0009 6222-83-8120G high performance turbo billet/milling/aluminum 2618 compressor wheel for 452003-0001/452072-0002/465283-0001/465443-0003/465523-0001/465633-0005/466159-0002/466588-0001 KOMATSU
3.Size:
Nose diameter:13.06mm
inducer:48.56mm
Exduder:74.99mm
Tapered tip exducer:79.86mm
Tip height:5.22mm
Superback:4.96mm
Overall height:37.14mm
bore size :6.35mm
Trailing angle:75
Cutback:0.0
Splitter height:21.60mm
SP height angle:-8.00
Blades height:30.29mm
6+6blades
forward rotation
Tapered tip angle:30 degree
Fit for OE compressor housing.
4.Application:
452003-0001
452072-0002
465283-0001
465443-0003
465523-0001
465633-0005
466159-0002
466588-0001
5.High quality and competitive price.
6.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
