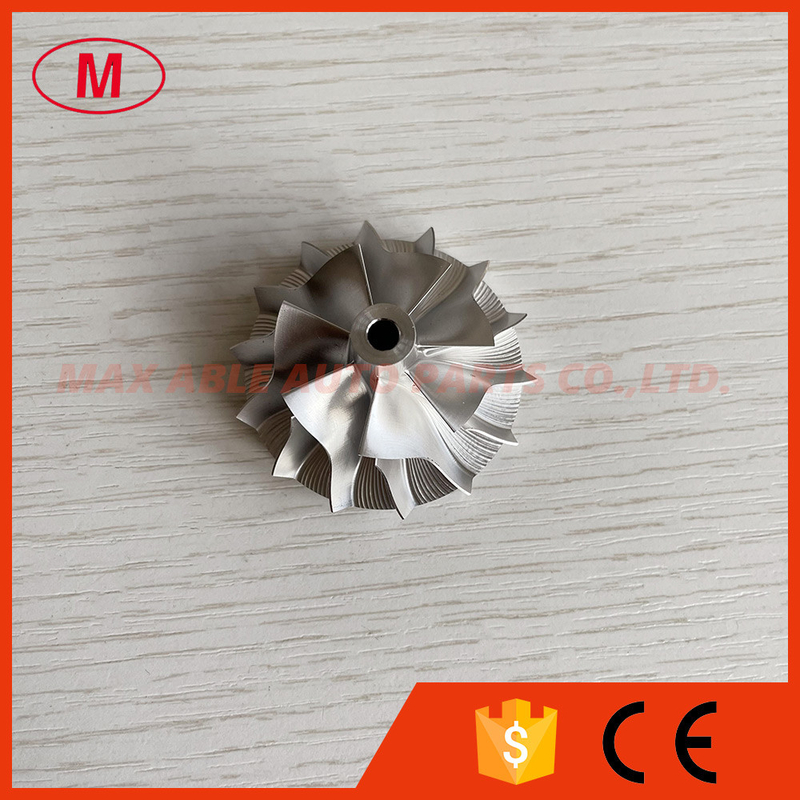

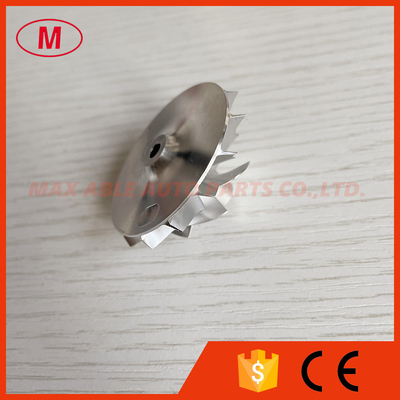

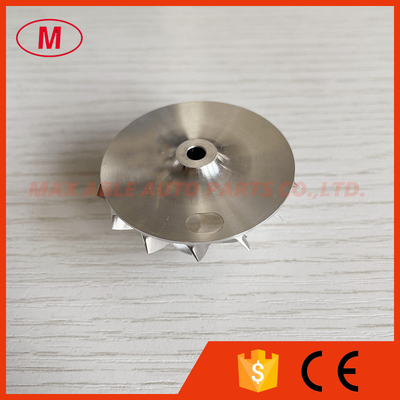

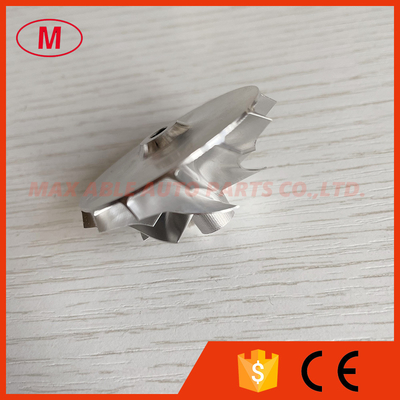

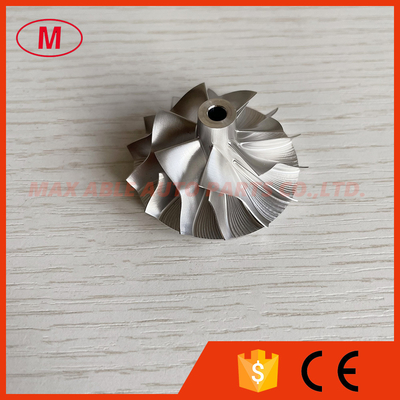

KP39 31.00/43.00mm 7+7 blades high performance turbocharger milling/aluminum 2618/Billet compressor wheel

Model Number:	KP39

Contact Now

Detailed Product Description

Size:	31.00/43.00mm	Type:	Turbochargers

1. MODEL:KP39 forward

2.KP39 31.00/43.00mm 7+7 blades high performance turbocharger milling/aluminum 2618/Billet compressor wheel

3.Size:

Nose diameter:8.50mm

Inducer:31.00mm

exducer:43.00mm

Tapered tip exducer:46.70mm

Tip height:4.20mm

Superback:2.81mm

bore size :4.10mm

bore type:through

Overall height:23.60mm

Cutback:0.0

Trailing Angle:60 degree

splitter height:9.60mm

sp height angle:-5.00

Blade height:14.60mm

7+7blades forward

It is for OE compressor housing

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheelS have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

KP39 31.00/43.00mm 7+7 blades high performance turbocharger milling/aluminum 2618/Billet compressor wheel
