| Brand Name: | NO |
| Model Number: | TD03 10T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 38.00/48.00mm | Type: | Turbochargers |
|---|
1. MODEL:TD03 10T FORWARD

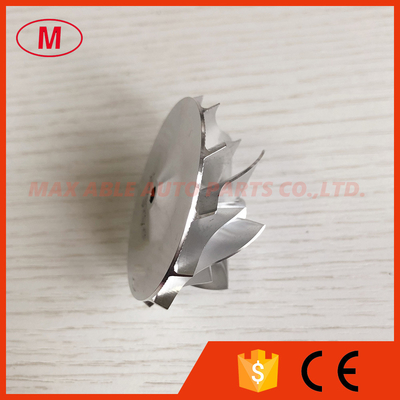

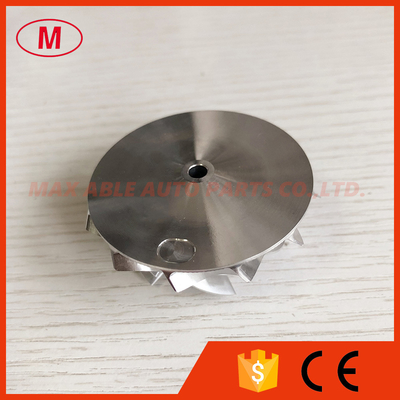

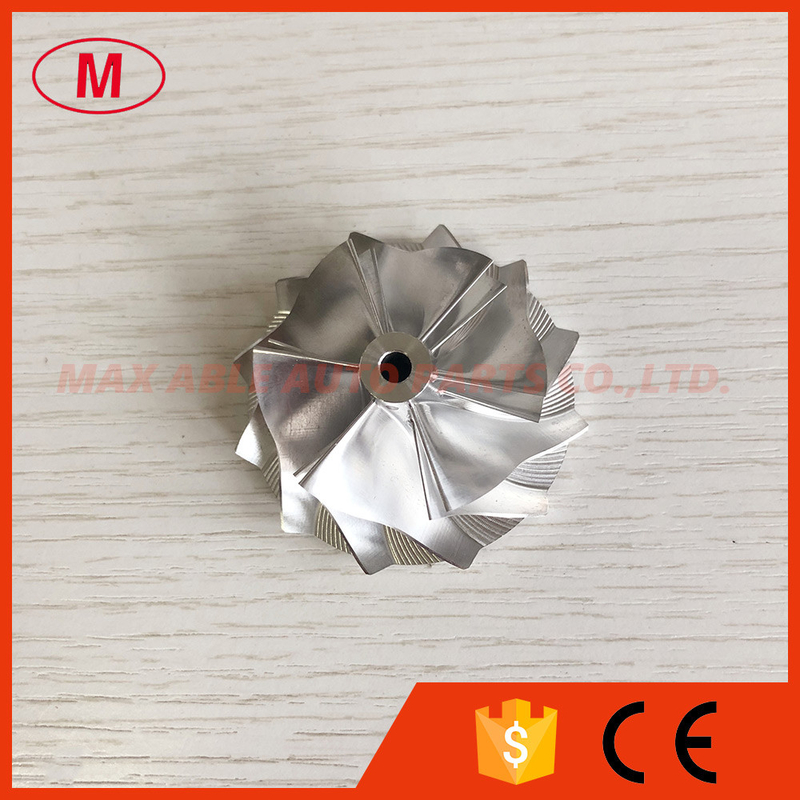

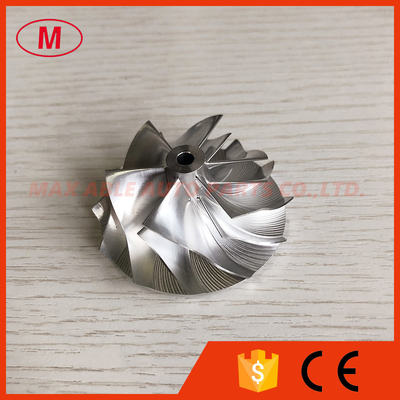

2.TD03 10T 6+6 blades 38.00/48.00mm high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.25mm
Inducer:38.00mm
Exducer:48.00mm
Tapered tip exducer:51.93mm
Tip height:4.40mm
Superback:1.68mm
Overall height:22.49mm
bore size :4.00mm
Bore type:through
Trailing angle:55 degree
Cutback:0.0mm
SP height angle:-5.30
blade height:18.79mm
Splitter height:13.55mm
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced
we can also produce as your requirement.
