| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K23/3LD |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
|

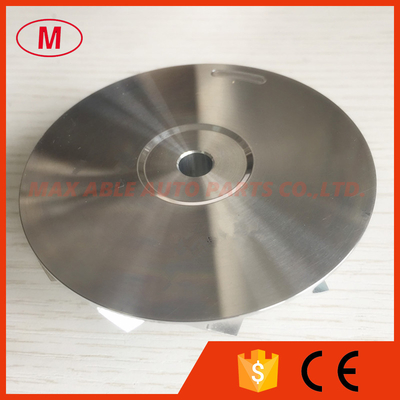

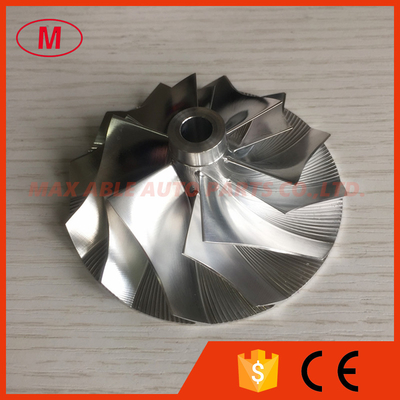

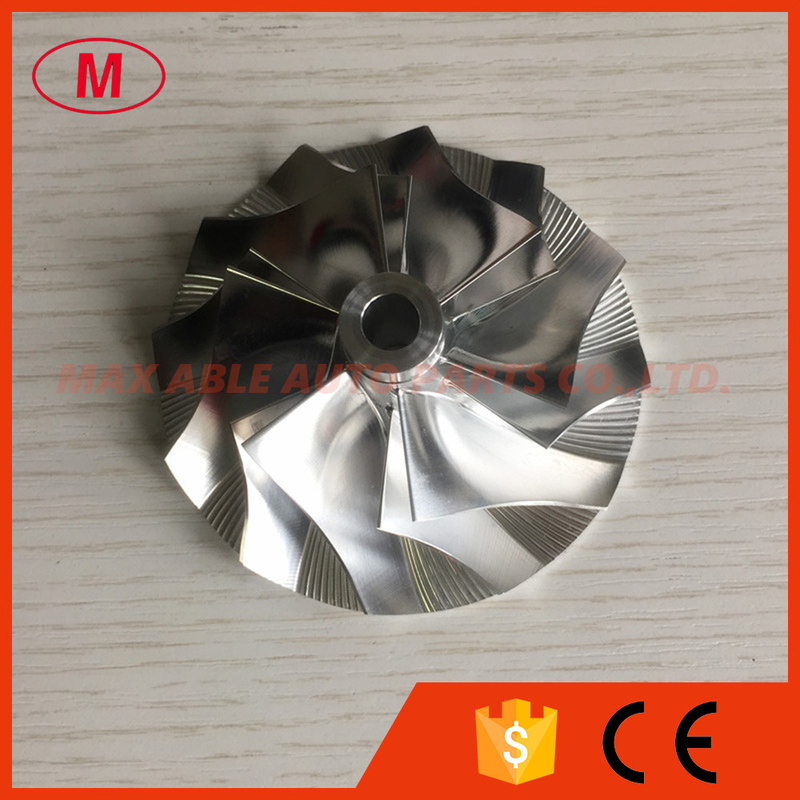

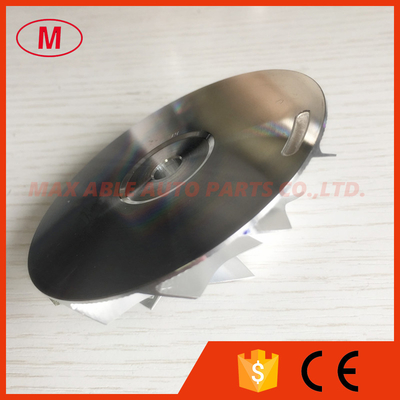

1. MODEL:K23/3LD/KKK 3LDZ forward
2.K23/3LD/KKK 3LDZ 5223-123-2005 53.50/80.00mm 6+6 blades Billet/milling/aluminum 2618 compressor wheel for
5222-988-3100,5222-970-3100
3.Size:
Nose diameter:15.10mm
Inducer:53.50mm
exducer:80.00mm
Tip height:7.61mm
Superback:-0.60mm
bore size :7.94mm
bore type:through
Overall height:29.41mm
Cutback:0.0
Trailing angle:40 degree
Blades height:21.83mm
splitter height:16.10mm
SP height angle:-4.50
6+6 blades forward
FIT for OE compressor housing
Tapered tip Angle:0 degree
Application:
5222-988-3100
5222-970-3100
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
