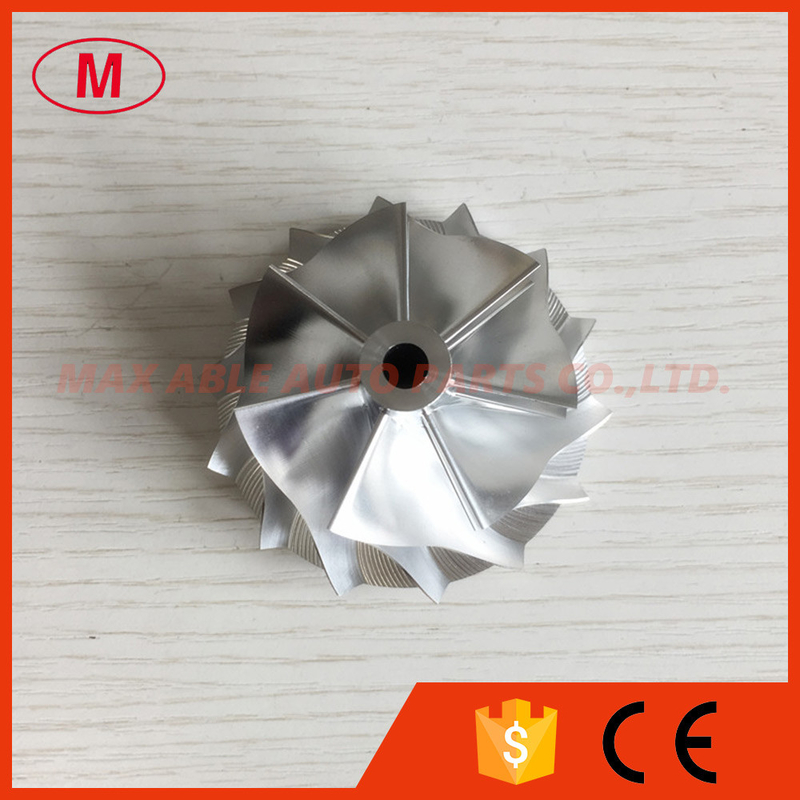

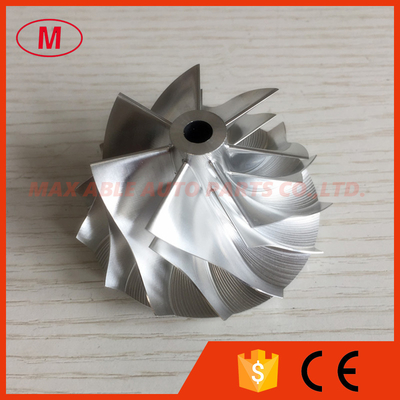

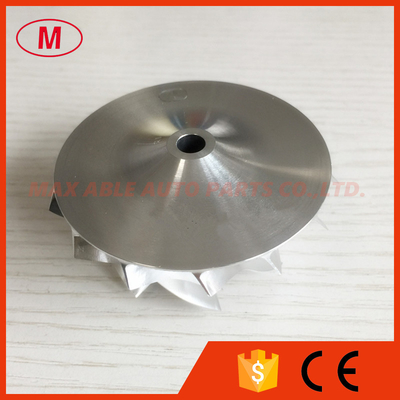

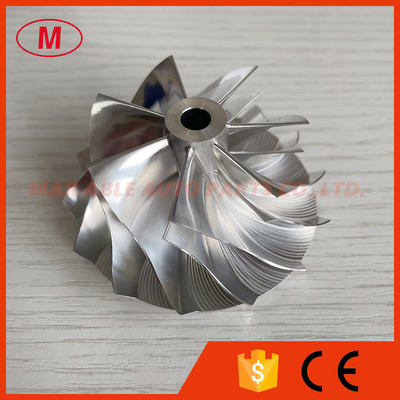

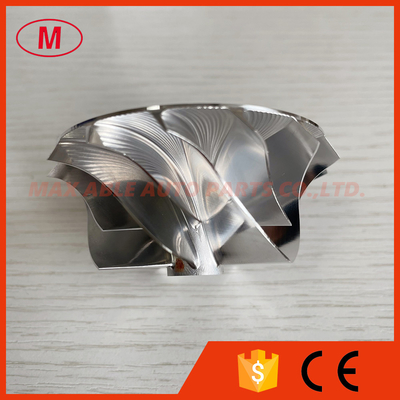

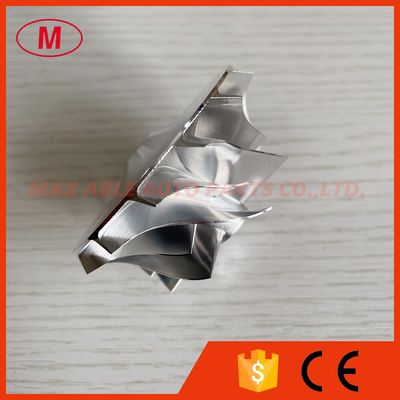

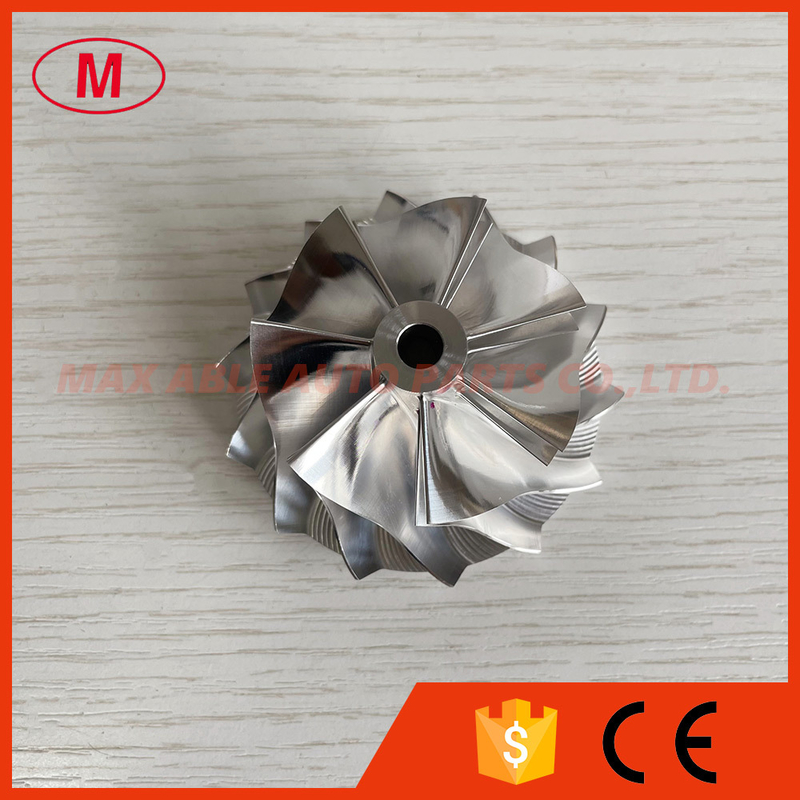

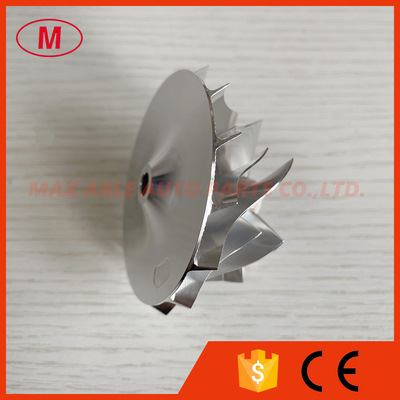

RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52

RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52

    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    • RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52

    Product Details:

    Model Number: RHF5HB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 46.50/59.94mm Type: Turbochargers

    1. MODEL:RHF5HB forward

    2.RHF5HB 46.50/59.94mm 7+7 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    3.Size:
    Nose diameter:12.57mm
    Inducer:46.50mm
    exducer:59.94mm
    Tapered tip exducer:64.92mm
    Tip height:5.32mm
    Superback:3.71mm
    Overall height:31.80mm
    bore size :6.10mm
    Bore type:through
    Trailing Angle:60 degree
    Cutback:0.0mm
    Blades height:26.09mm
    Splitter height:19.05mm
    Sp Height angle:-4.50
    7+7 blades
    forward rotation
    Tapered tip angle:30 degree
    Fits OE Compressor Housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
    RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
    RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52RHF5HB 46.50/59.94mm 7+7 blades Overall height:31.80mm high performance Turbocharger Billet compressor wheel for 07L145702J/ 07L145701J /VF30/VF34/VF35/VF36/VF37/VF39/VF41/VF42/VF43/VF48/VF52
