Home ProductsBillet compressor wheel

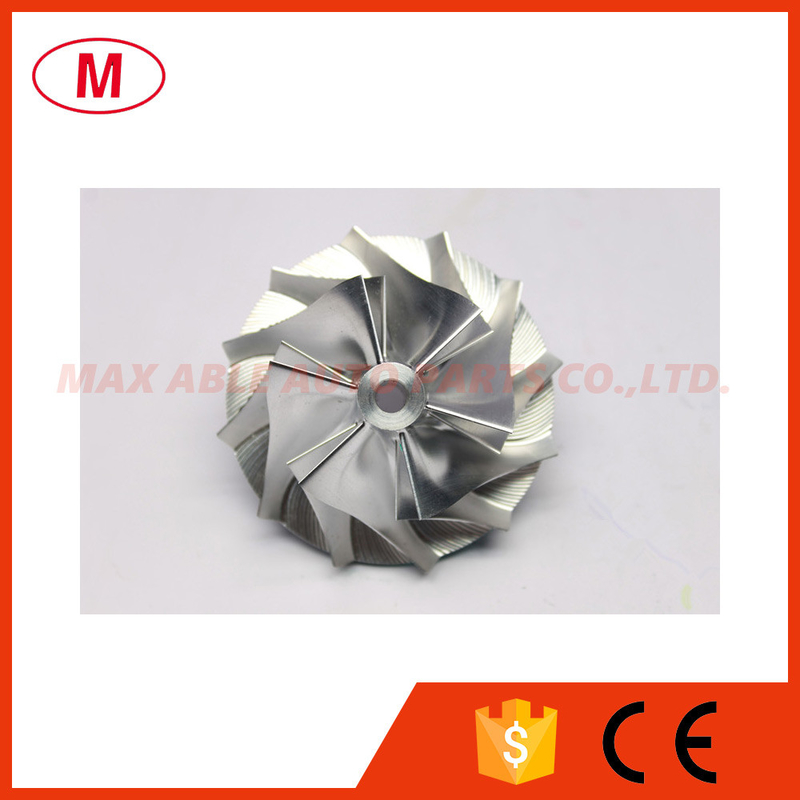

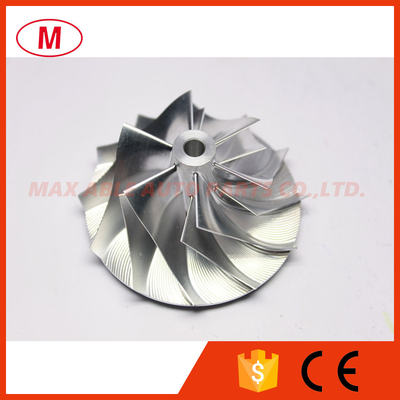

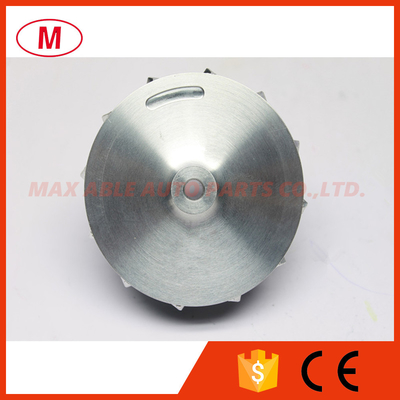

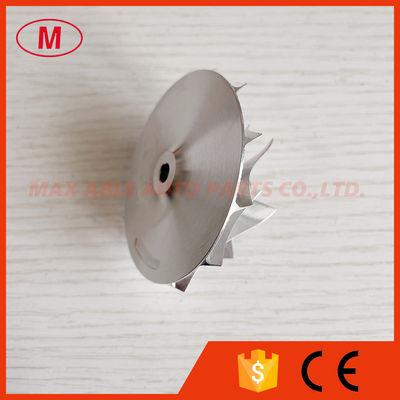

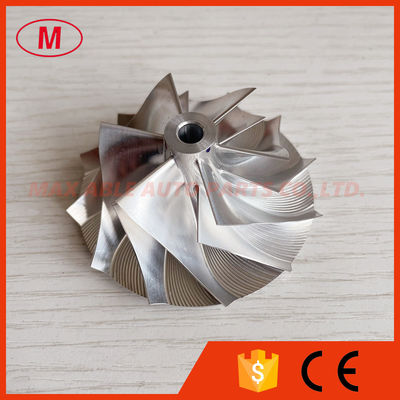

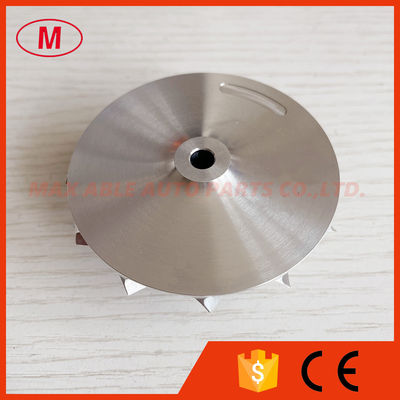

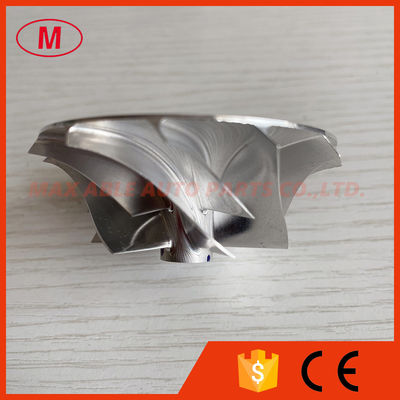

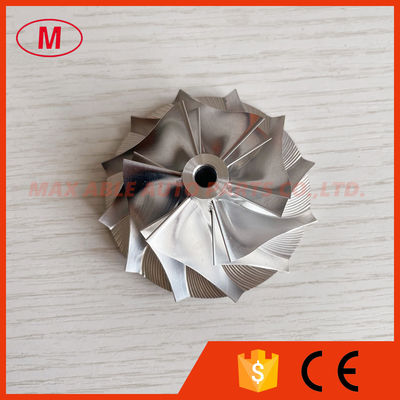

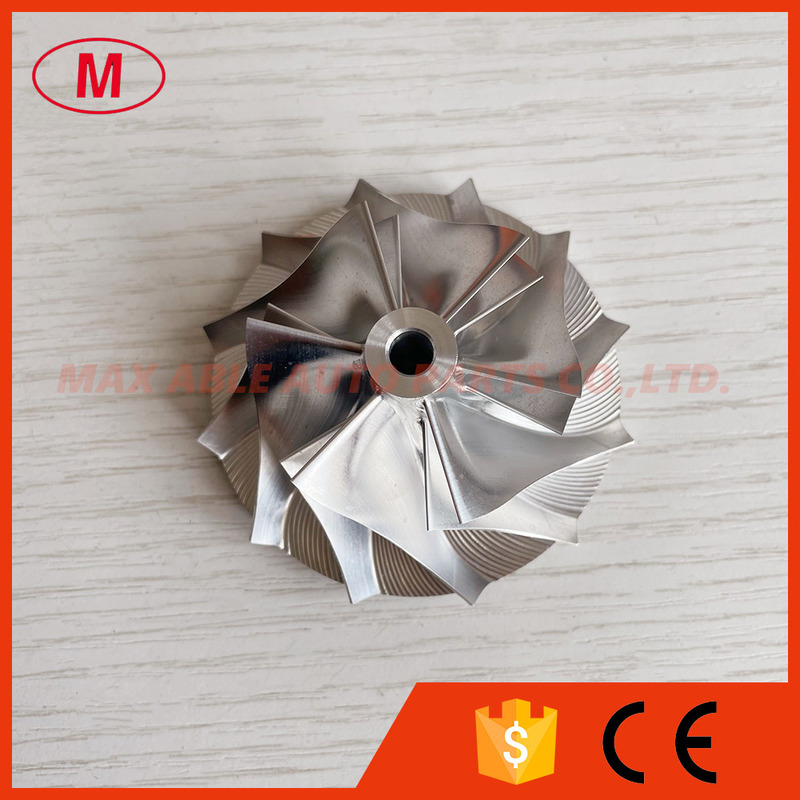

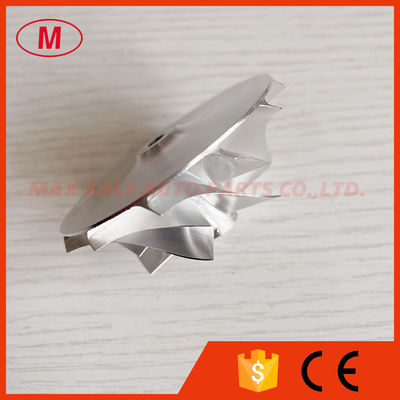

K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w

K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w

    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
    • K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w

    Product Details:

    Model Number: K24

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description
    Size: 42.30/60.50mm Type: Turbochargers

    1. MODEL:K24 forward

    2. K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor wheel for 5316-970-7003/7008/7009/7010/7013/7014/7015/7016/7017/7019/7020/7023/7024/7026/7028/7029/7030/5316-971-7017/7023/5316-710-0005/0010/0015
    3.Size:

    Nose Diameter:11.36mm

    Inducer:42.30mm

    Exducer:60.50mm

    Tapered tip exducer :64.41mm

    Tip height:4.39mm

    Superback:2.70mm

    Overall height:27.60mm

    Bore Size:5.41mm

    bore type:through

    Trailing angle:60 degree

    Cutback:0.0mm

    Blades height:22.40mm

    6+6 blades

    forward rotation

    Tapered tip angle:30 degree

    Fits OE Compressor Housing

    4.High quality and competitive price.

    5.Any questions please send email to me.

    6.Application:

    5316-970-7003

    5316-970-7008

    5316-970-7009

    5316-970-7010

    5316-970-7013

    K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w

    K24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor wK24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor wK24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor wK24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor wK24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor wK24 5324-123-2013 42.30/60.50mm 6+6 BLADES Turbo aluminum 2618/milling/Billet compressor w
