Home ProductsBillet compressor wheel

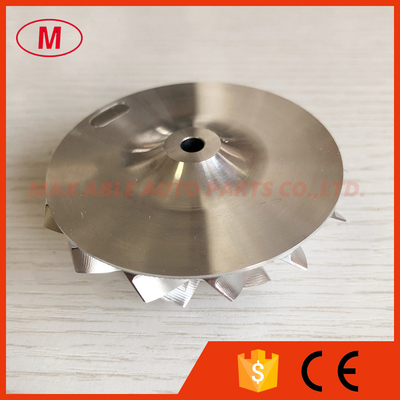

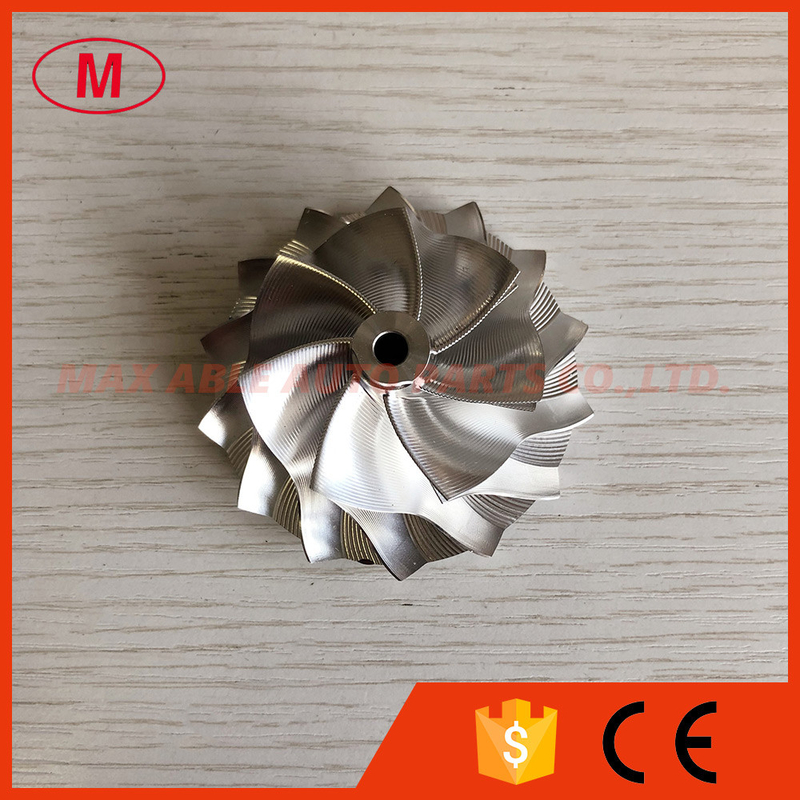

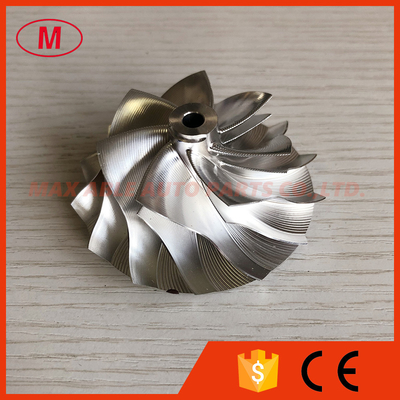

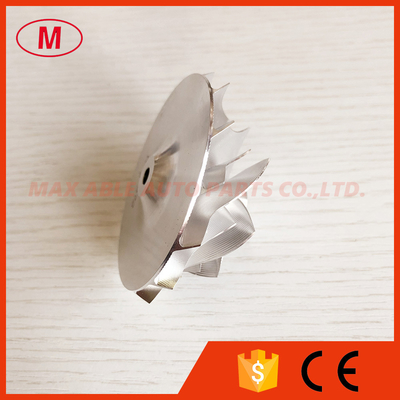

GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel

GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel

    • GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel
    • GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel
    • GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel
    • GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel
  • GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel

    Product Details:

    Place of Origin: CHINA
    Brand Name: NO
    Model Number: GT15-25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT/western union/paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description

    1. MODEL:GT15-25 forward
    2.GT15-25 47.73/64.44mm 7+7 blades high performance point milling air curve turbocharger milling/aluminum 2618/billet compressor wheel
    3.Size:
    Nose diameter:12.00mm
    Inducer:47.73mm
    exducer:64.44mm
    Tapered tip exducer:69.39mm
    Tip height:5.29mm
    Superback:3.68mm
    bore size :5.08mm
    Overall height:31.00mm
    Cutback:0.0
    Trailing Angle:45
    SP height angle:-2.50
    Blades height:23.00mm
    Splitter height:16.90mm
    7+7 blades forward
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:30 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.
    We can produce as your requirement ,the minimum order is 5pcs
    All the compressor wheel have been balanced
    GT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheelGT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheelGT15-25 47.73/64.44mm 7+7blades high performance point milling air curve milling/aluminum 2618/billet compressor wheel
