| Model Number: | CT10 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
| Size: | 36.02/50.96mm | Type: | Turbochargers |
|---|
1. MODEL:CT10 Forward

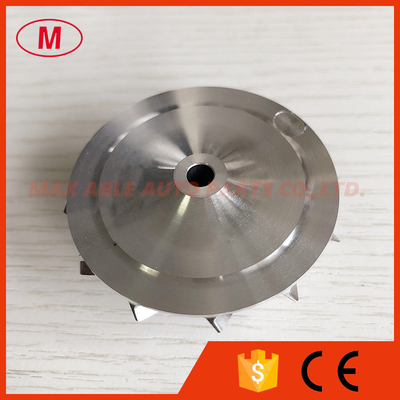

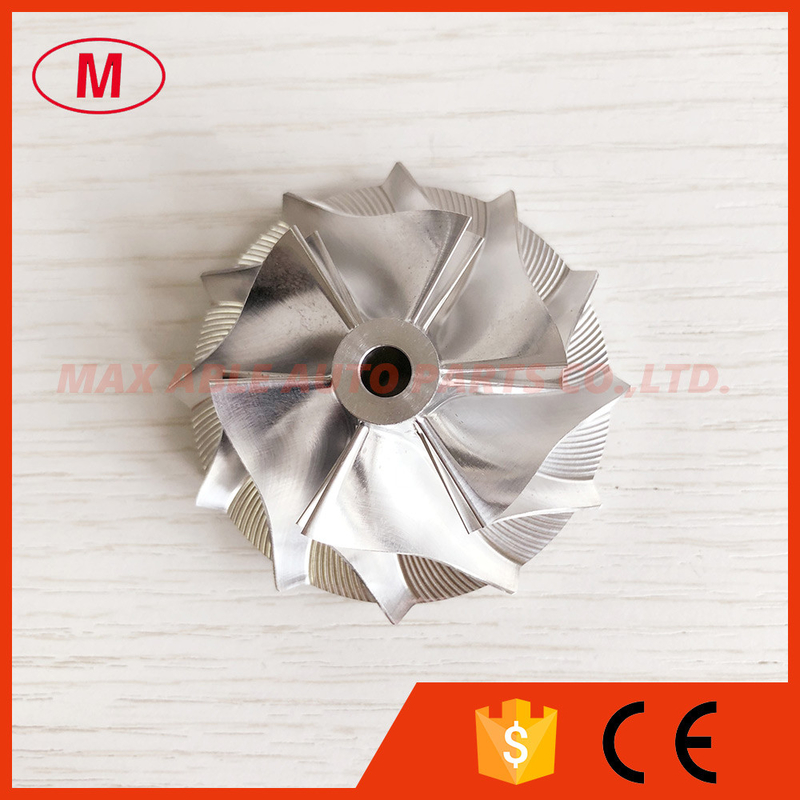

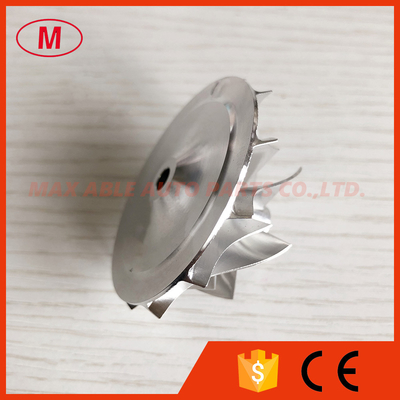

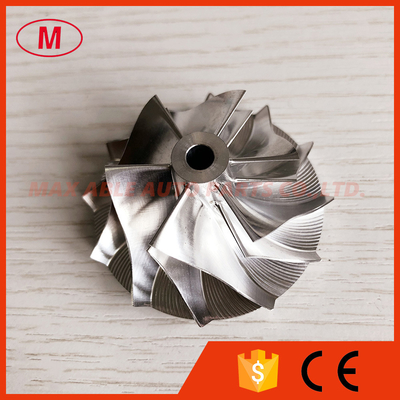

2. CT10 36.02/50.96mm 17291-0L020 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 17201-0L020/30080
3.Size:
Nose diameter:10.58mm
inducer:36.02mm
Exducer:50.96mm
Tapered tip exducer:54.71mm
Tip height:4.25mm
Superback:2.65mm
Overall height:25.27mm
Bore size:5.10mm
Trailing angle:60
Cutback:0.0
Sp height angle:-5.00
Blade height:20.35mm
Splitter height:14.40mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me,we have many size.
All the compressor wheel have been balanced.
