| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |

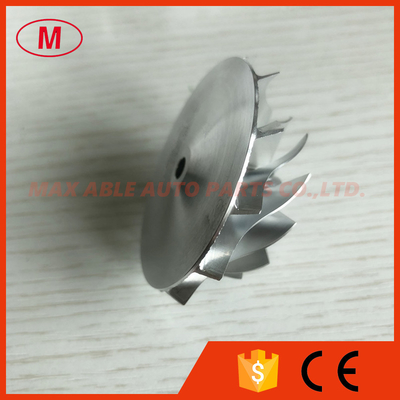

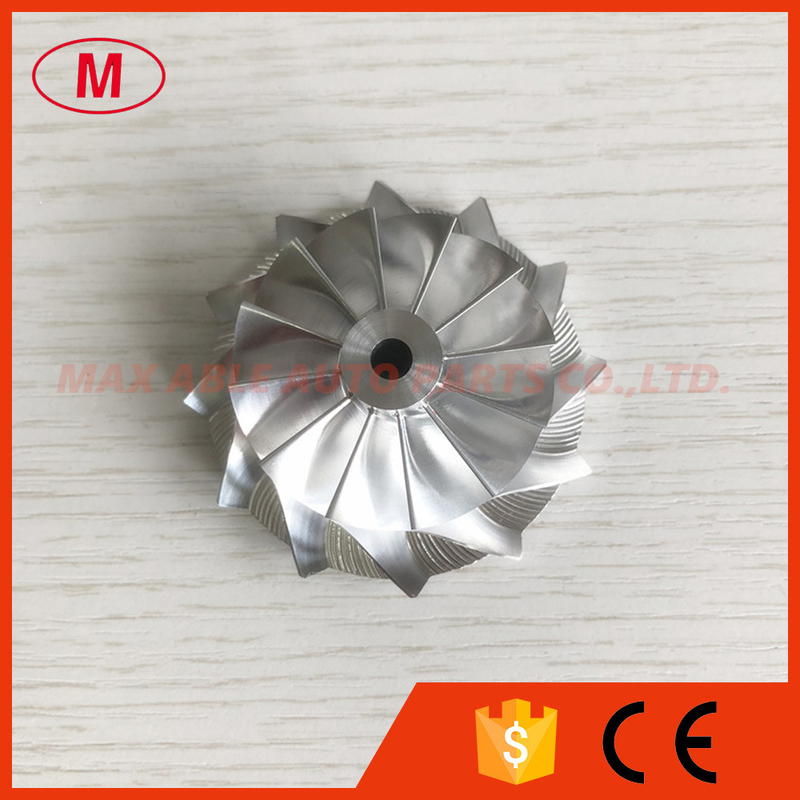

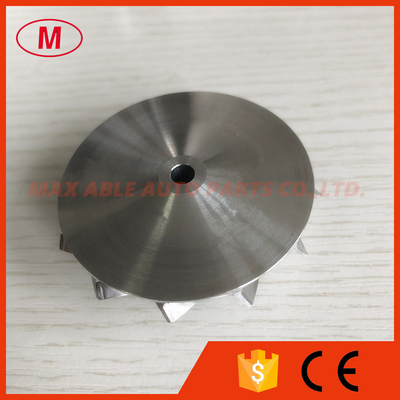

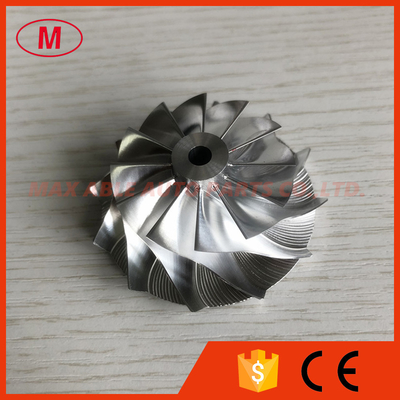

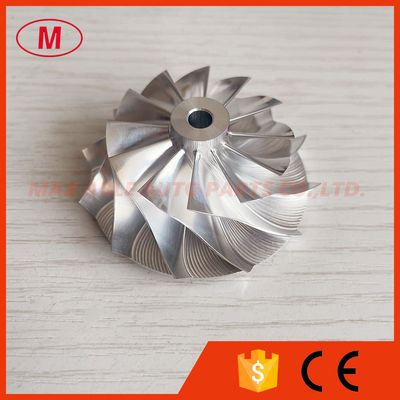

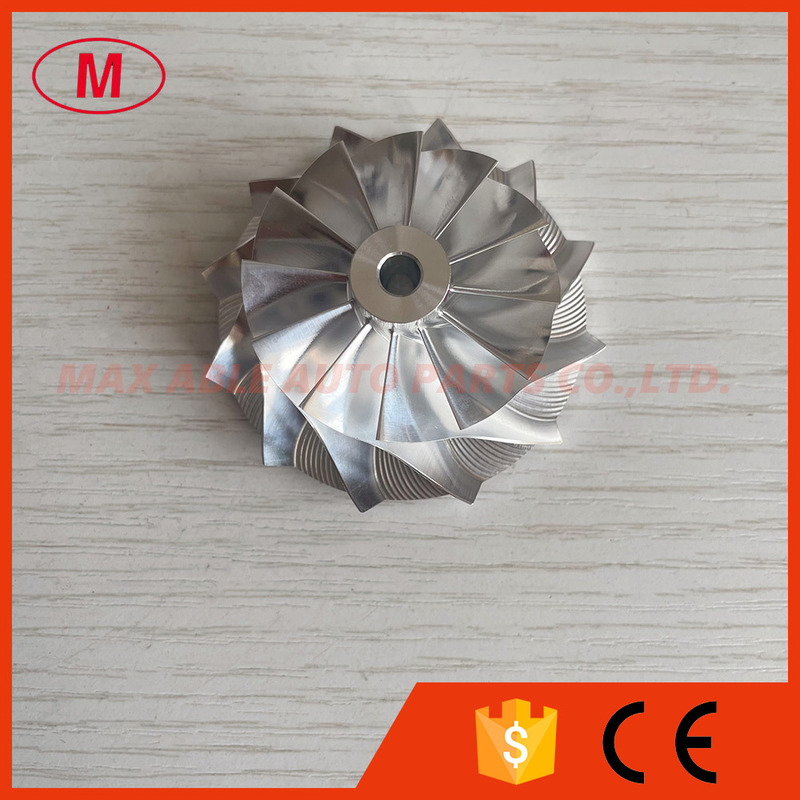

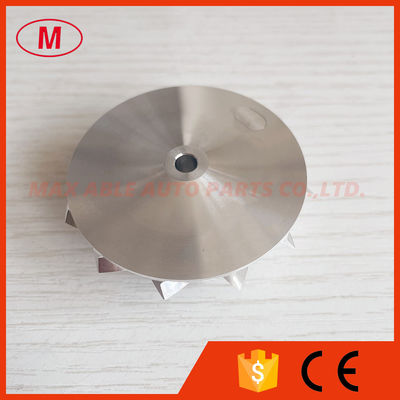

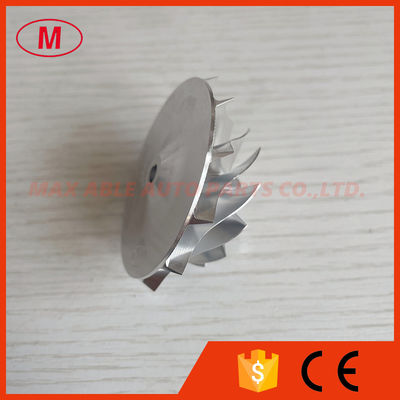

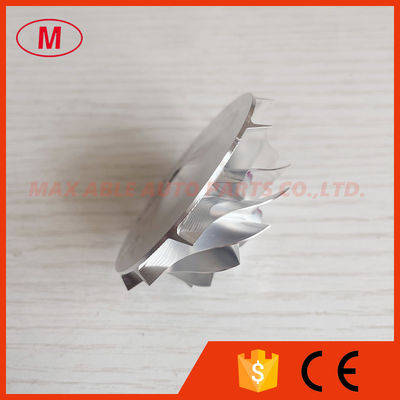

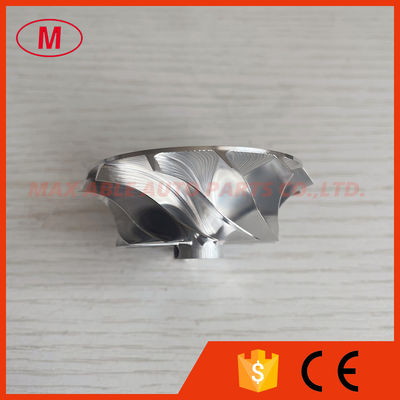

1. TD04H 13C 49183-41500 40.00/53.00mm 12+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel for 49189-01000 B230FT
2.Size:
Nose diameter:12.20mm
Inducer :40.00mm
Exducer:53.00mm
Tapered tip exducer:57.56mm
Tip height:4.95mm
superback:1.90mm
Overall height:23.40mm
bore size:5.00mm
Trailing angle:60
Cutback:0.0
SP height angle:0.00
Splitter height:0.00
Blade height:18.36mm
12+0 blades
foward rotation
Tapered tip angle: 18 degree
It is for OE compressor housing
3.High quality and competitive price.
We have more size and we can produce as your requirement .
All the compressor wheel have been balanced.
