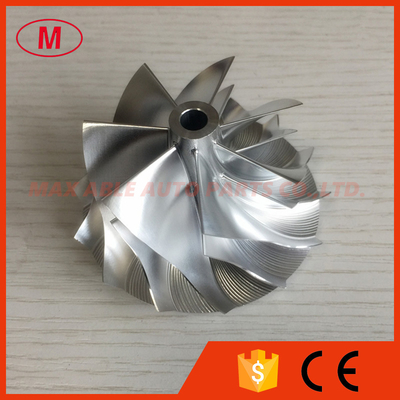

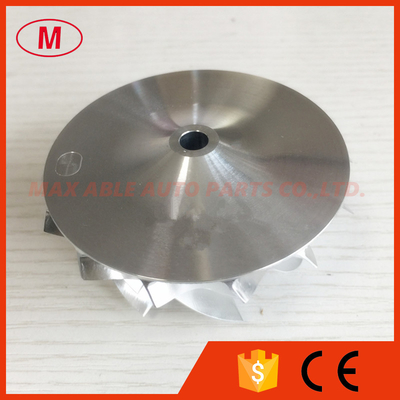

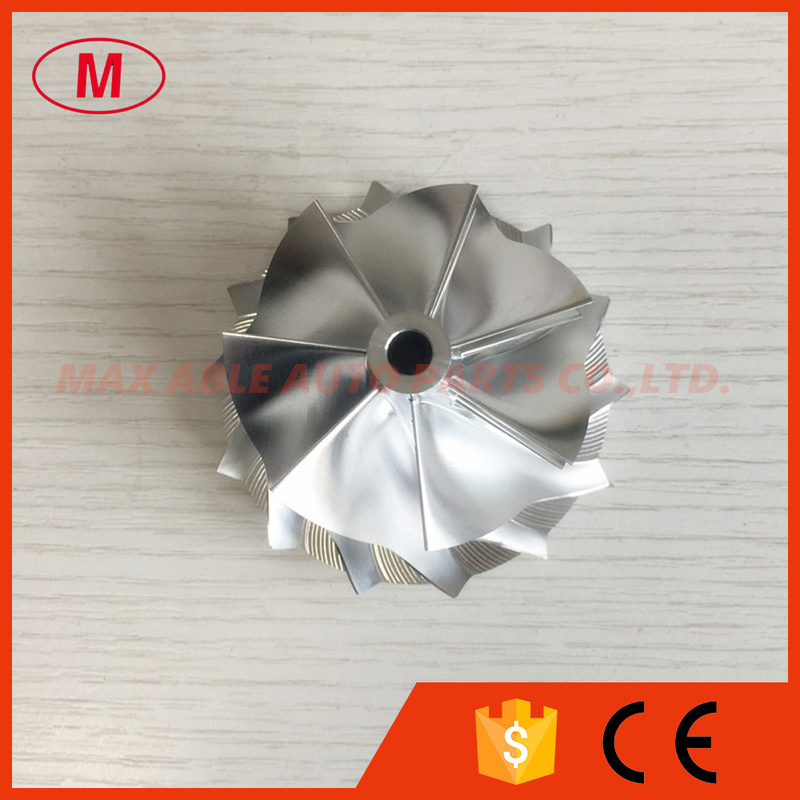

RHF55 52.60/65.00mm 7+7 blades Turbocharger milling/aluminum 2618/billet compressor wheel for VF30/VF34 Upgrade

Brand Name:	NO
Model Number:	RHF55

Contact Now

Detailed Product Description

1. MODEL:RHF55 forward

2.RHF55 52.60/65.00mm 7+7 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel for VF30/VF34 Upgrade

3.Size:

Nose diameter:11.45mm

Inducer:52.60mm

exducer:65.00mm

Tapered tip exducer:69.99mm

Tip height:5.32mm

Superback:3.71mm

Overall height:37.10mm

bore size :6.10mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

SP Height angle:-6.50

Blades height:29.66mm

Splitter height:19.75mm

7+7 blades forward

It is Customs size,please check carefully before buying.

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF55 52.60/65.00mm 7+7 blades Turbocharger milling/aluminum 2618/billet compressor wheel for VF30/VF34 Upgrade
