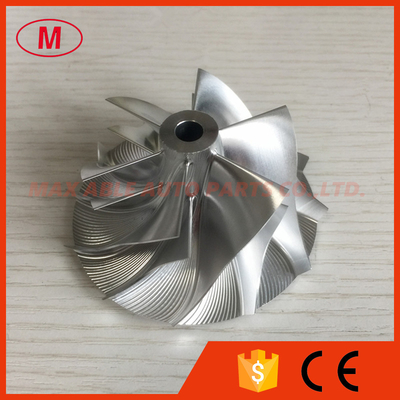

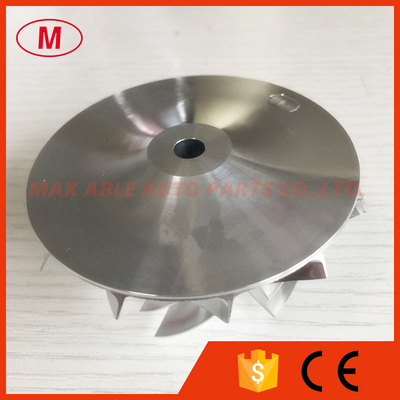

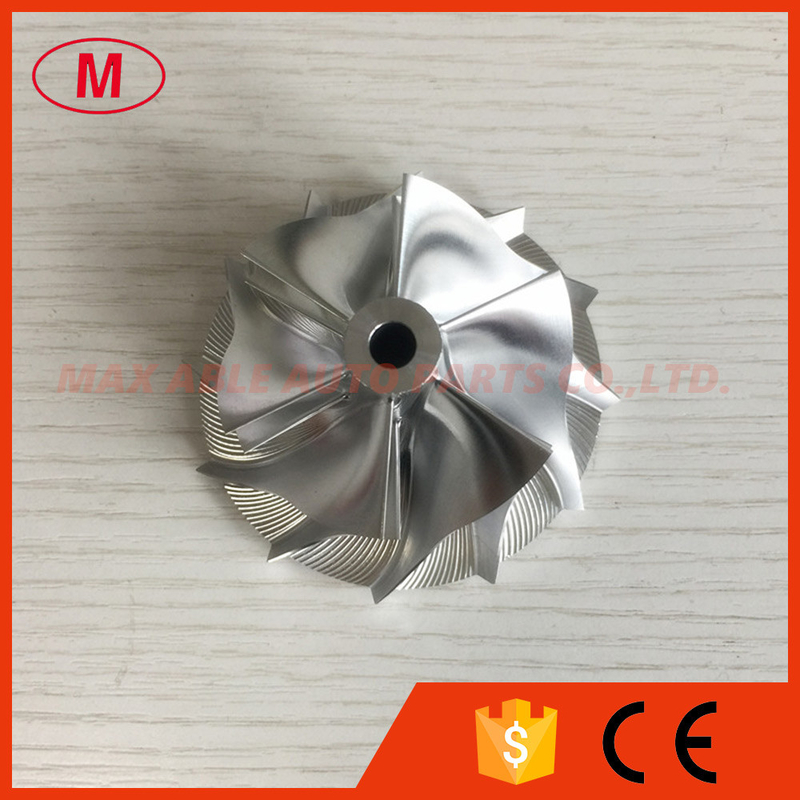

TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel

TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel

    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel
    • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel
  • TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel

    Product Details:

    Brand Name: NO
    Model Number: TD05H 20G reverse

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H 20G reverse

    2.TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

    3.Size:

    Nose diameter:13.50mm

    Inducer:52.56mm

    Exducer:68.01mm

    Tapered tip exducer:73.05mm

    Tip height:5.37mm

    Superback:2.90mm

    Overall height:35.00mm

    bore size :6.50mm

    bore type:through

    Trailing Angle:45

    Cutback:0.0

    SP height angle:-8.50

    Splitter height:20.20mm

    Blades height :28.90mm

    6+6 BLADES.

    FIT FOR OE compressor housing

    Reverse rotation

    Tapered tip angle:30 degree



    4.High quality and competitive price.

    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.



    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheelTD05H 20G reverse 52.56/68.01mm 49179-43400 6+6 blades high performance Billet compressor wheel
