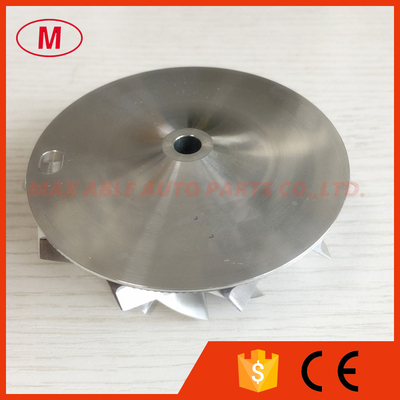

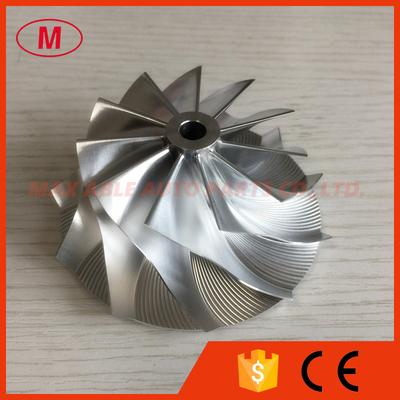

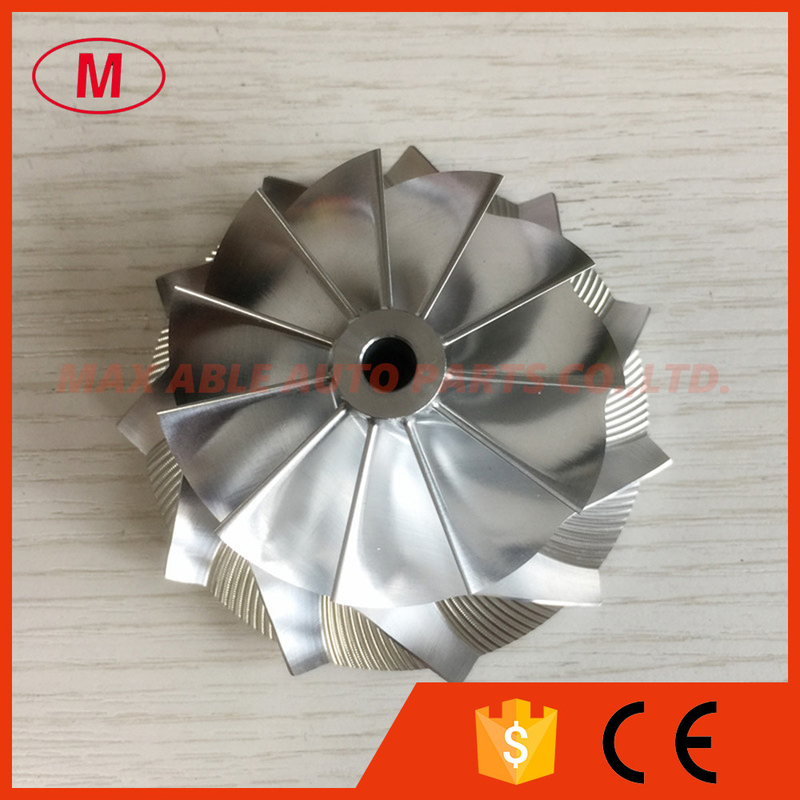

TD05H 56.24/75.00mm 11+0 blades 49179-02712 turbo Turbocharger milling/aluminum 2618/billet compressor wheel

Model Number:	TD05H

Contact Now

Detailed Product Description

Size:	56.24/75.00mm	Type:	Turbochargers

1. MODEL:TD05H FORWARD

2.TD05H 56.24/75.00mm 11+0 blades 49179-02712 turbo Turbocharger Billet/milling/aluminum 2618 compressor wheel for M-ISUBISHI

3.Size:

Nose diameter:13.42mm

Inducer:56.24mm

exducer:75.00mm

Tapered tip exducer:80.58mm

Tip height:6.58mm

Superback:2.70mm

Overall height:34.78mm

bore size :6.50mm

bore type:through

Trailing Angle:45

Cutback:0.0

Blades height:30.51 mm

Sp height angle:0.00

Splitter height:0.00mm

11+0 blades forward

Tapered tip angle:30 degree

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD05H 56.24/75.00mm 11+0 blades 49179-02712 turbo Turbocharger milling/aluminum 2618/billet compressor wheel
