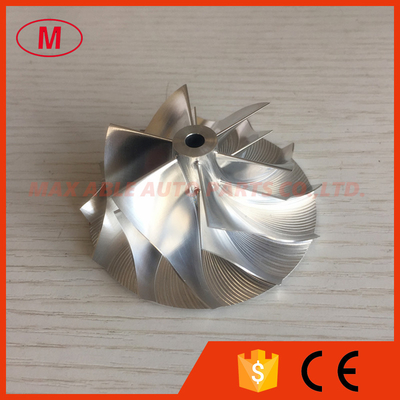

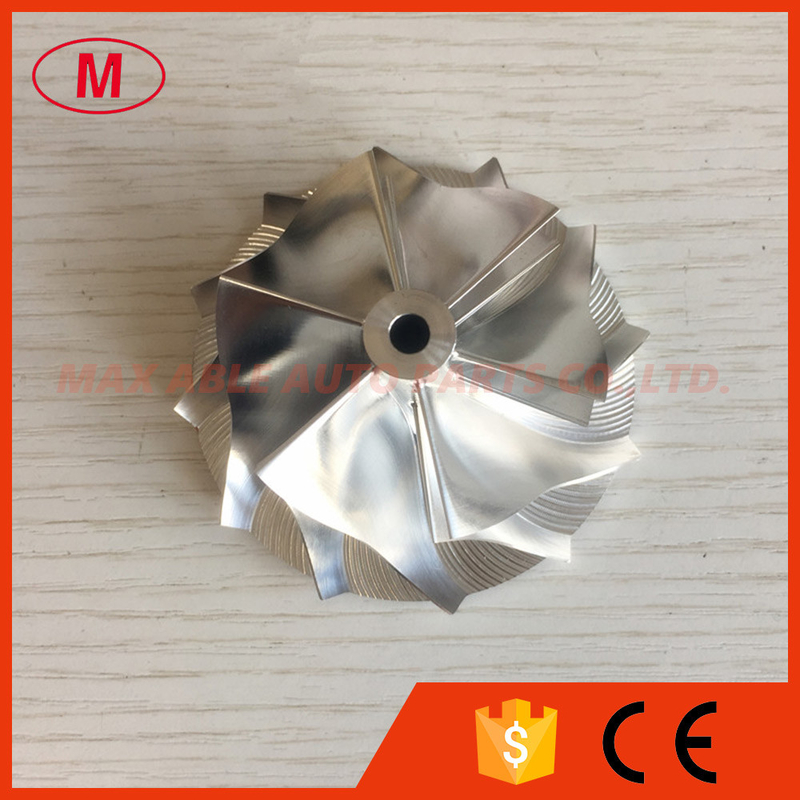

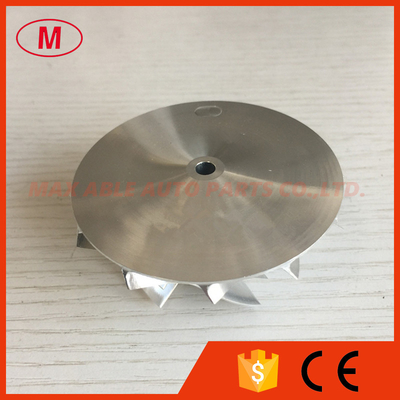

TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 51.00/67.00mm Type: Turbochargers

    1. MODEL:TD04HL FORWARD
    2.TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:11.55mm
    Inducer:51.00mm
    exducer:67.00mm
    Tapered tip exducer:71.20mm
    Tip height:4.64mm
    Superback:1.50mm
    Overall height:29.20mm
    bore size :5.00mm
    bore type:through
    Trailing Angle:55 degree
    Cutback:0.0
    SP height angle:-4.10
    Blades height:25.51 mm
    Splitter height:16.70mm
    6+6 blades forward
    Tapered tip angle: 30 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.

    Skype: maxabledieselparts

    Wechat/Whatsapp:+86-18018657719

    TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel

    TD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheelTD04HL 51.00/67.00mm 6+6 blades turbo Turbocharger milling/aluminum 2618/billet compressor wheel
