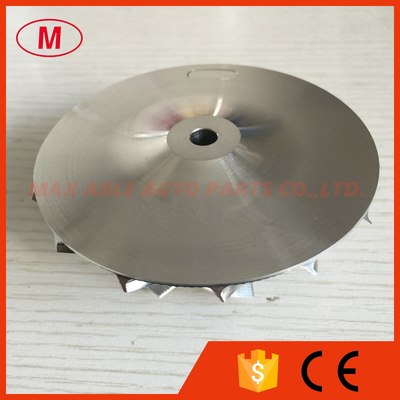

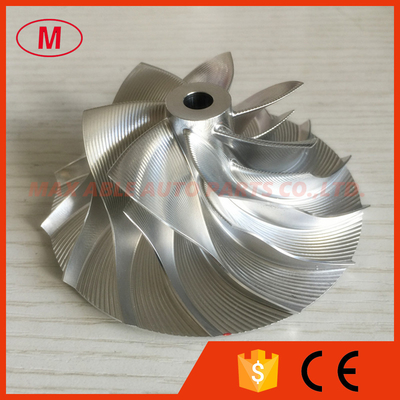

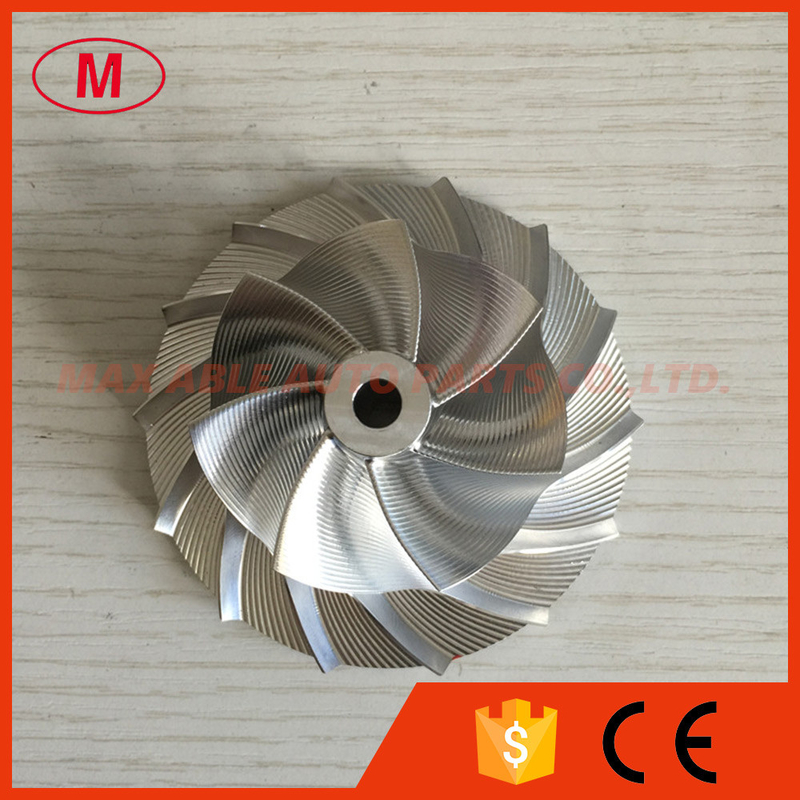

TD05H 52.56/80mm 7+7 blades high performance point milling Turbocharger milling/aluminum 2618/billet compressor wheel

Minimum Order Quantity:	1PC
Price:	DISCUSS
Packaging Details:	Neutral packing
Delivery Time:	3-7 DAYS
Payment Terms:	T/T, Western Union, MoneyGram,PAYPAL
Supply Ability:	1000PCS

Contact Now

Detailed Product Description

1. MODEL:TD05H

2.TD05H 52.56/80mm 7+7 blades high performance point milling Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose Diameter:14.40mm

Inducer:52.56mm

exducer:80.00mm

Tapered tip exducer:83.04mm

Tip height:3.63mm

Superback:2.90mm

bore size :6.50mm

Overall height:34.00mm

Blade height:28.30mm

Sp Height angle:-5.9

Splitter height:18.86mm

7+7 blades forward

Point milling

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
