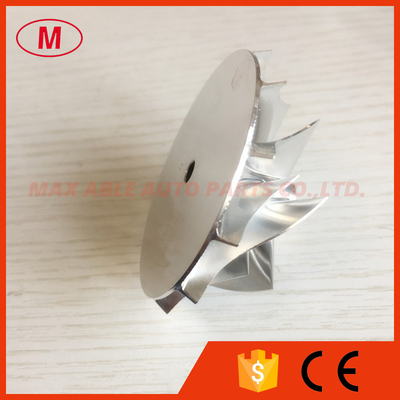

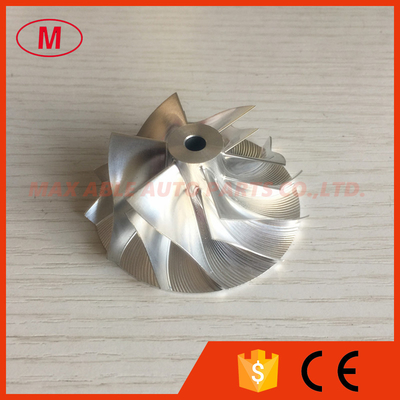

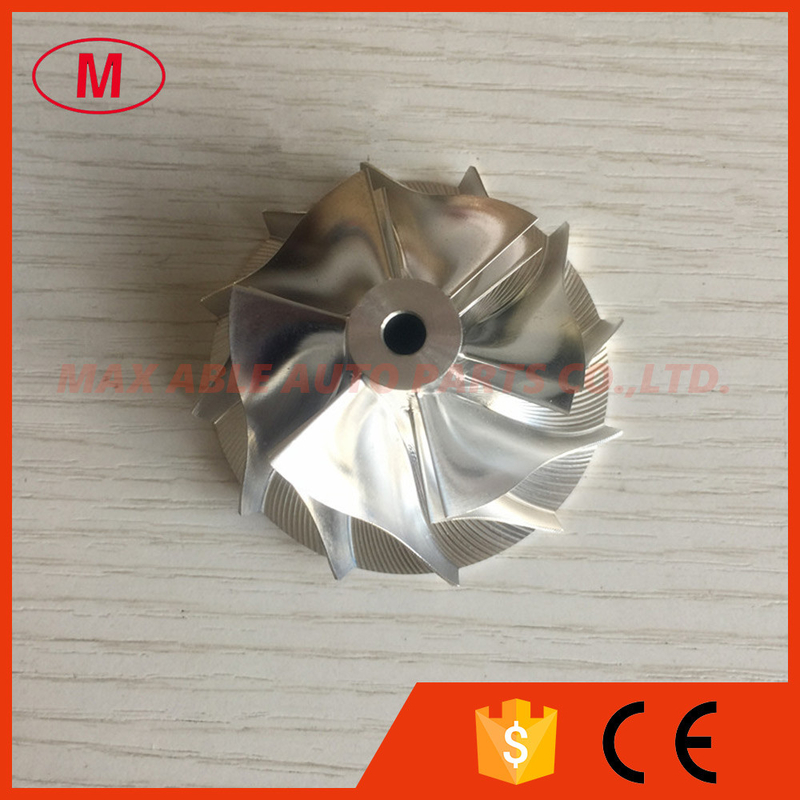

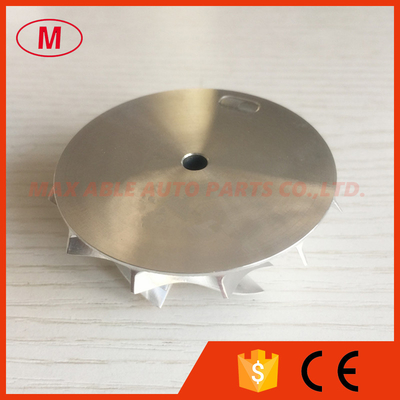

TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel

TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel

    • TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel
    • TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD04HL 15G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1. MODEL:TD04HL 15G FORWARD
    2.TD04HL 15G 43.38/55.69mm 6+6 blades 49189-40300 1401-404-415 Turbocharger Billet/milling/aluminum 2618 compressor wheel for Saab 9-3 2.3 Turbo
    3.Size:
    Nose Diameter:13.50mm
    Inducer:43.38mm
    exducer:55.69mm
    Tapered tip exducer:60.00mm
    Tip height:4.73mm
    Superback:0.00mm
    bore size :5.00mm
    bore type:through
    Trailing angle:80 degree
    Cutback:0.0
    Overall height:23.02mm
    Blades height:21.42mm
    Splitter height:14.40mm
    Sp height angle:0.00
    6+6 blades
    forward
    Tapered tip angle:30 degree
    It is for OE compressor housing
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
