| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 18G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 50.39/68.01mm | Type: | Turbochargers |
|---|
1. MODEL:TD05H 18G forward

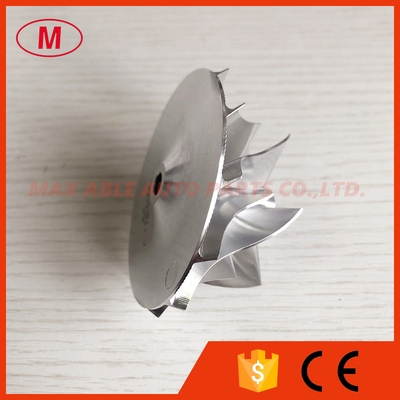

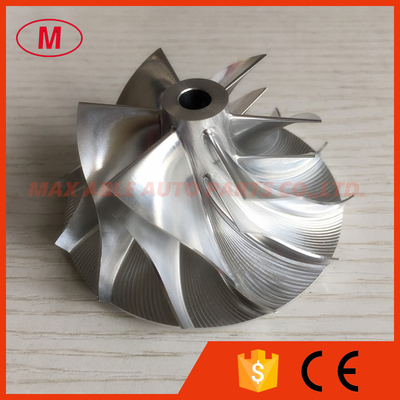

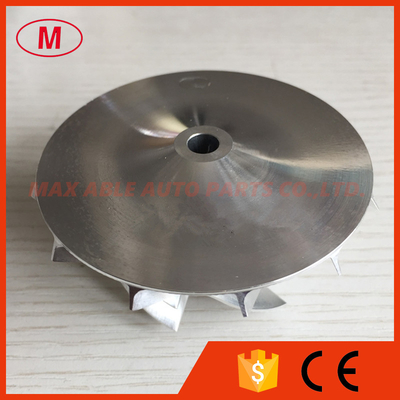

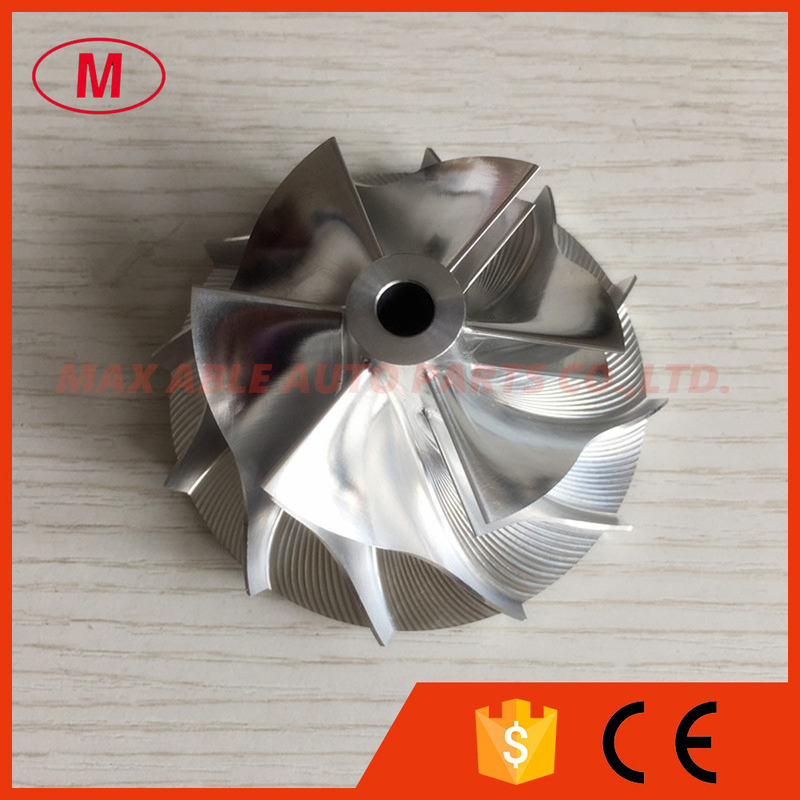

2.TD05H 18G 50.39/68.01mm 49378-01520 6+6 blades Turbocharger performance design high Blade Height aluminum 2618/milling /billlet compressor wheel
3.Size:
Nose diameter:13.51mm
Inducer:50.39mm
Exducer:68.01mm
Tapered tip exducer:72.46mm
Tip height:4.85mm
Superback:2.90mm
Overall height :35.00mm
Bore:6.50mm
bore type:through
Trailing angle:75 degree
Cutback:0.0
SP height angle:-8.40
Blade height:29.20mm
Splitter height:20.00
6 long 6 short
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
6.All the compressor wheels have balanced.
