| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 20G UPGRADE |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H 20G upgrade

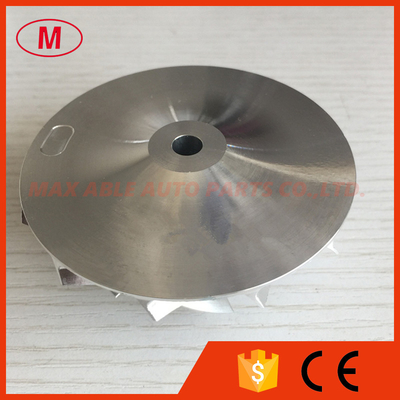

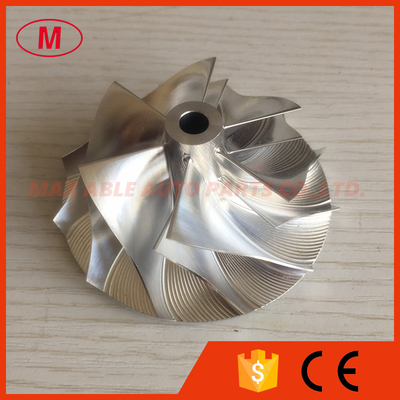

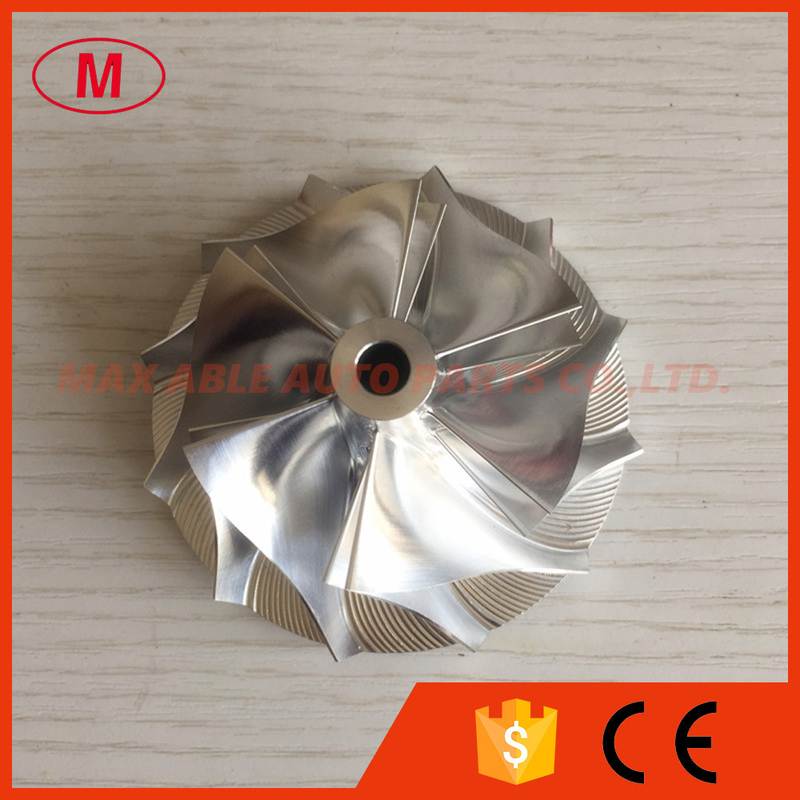

2.TD05H 20G upgrade 53.11/70.98mm 6+6 blades Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.85mm
inducer:53.11mm
Inducer:70.98mm
Tapered tip exducer:73.92mm
Tip height:5.52mm
Superback:2.90mm
Overall height:31.50mm
Trailing angle:60
bore size :6.50mm
bore type:through
cutback:1.0
SP height nagle:-7.00
Blade height:24.08mm
splitter height:17.20mm
6+6 blades
Forward rotation
Tapered tip angle:18 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
