| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H 20G reverse

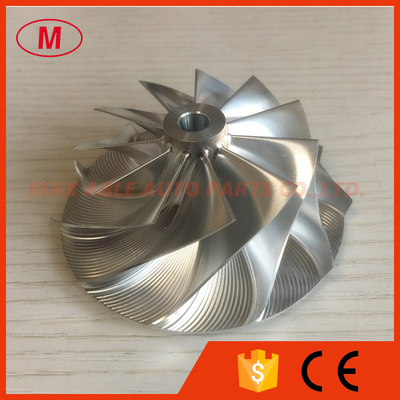

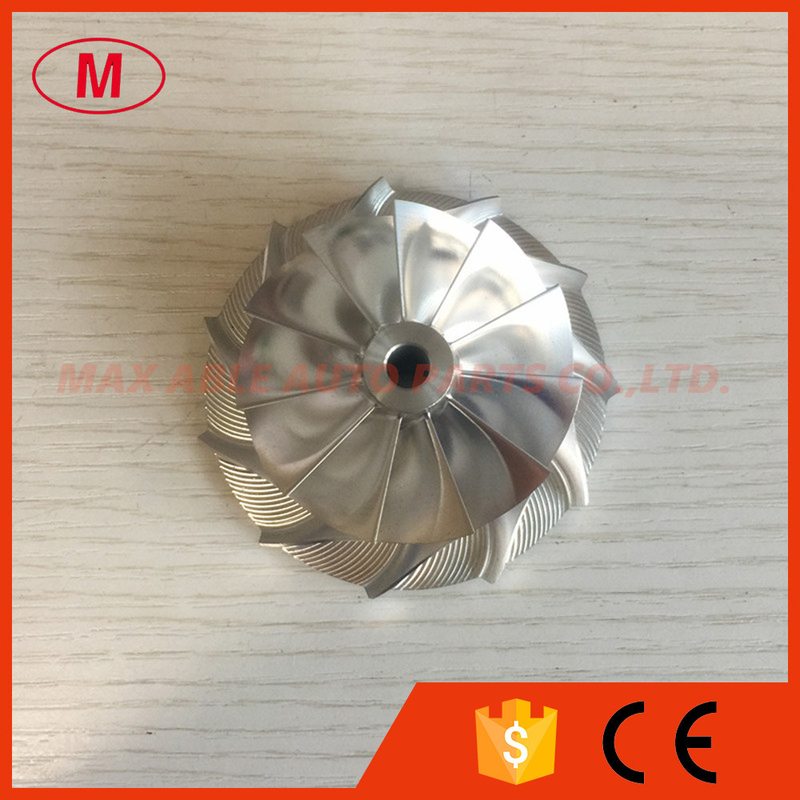

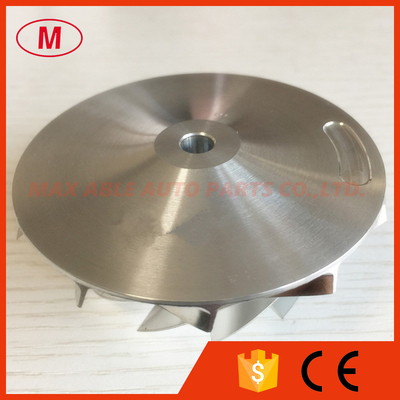

2.TD05H 20G upgrade reverse 53.11/70.98mm 11+0 blades turbocharger aluminum 2618/billet compressor wheel.
3.Size:
Nose diameter:13.54mm
Inducer:53.11mm
Exducer:70.98mm
Tapered tip exducer :73.92mm
Tip height:5.52mm
Superback:2.90mm
Bore:6.50mm
bore type:through
Overall height:31.50mm
Trailing angle:75-90
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
Blades height:25.16mm
Tapered tip angle:18 degree
11+0 blades
Reverse rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We can produce as your requirement.
All the compressor wheel have been balanced.
