| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04H 15G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD04H 15G forward

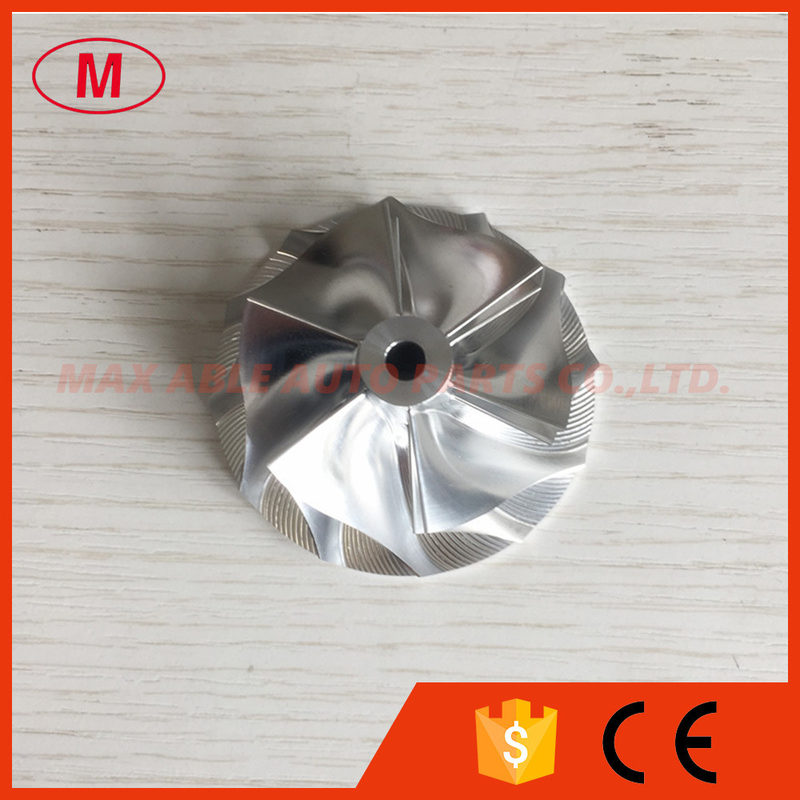

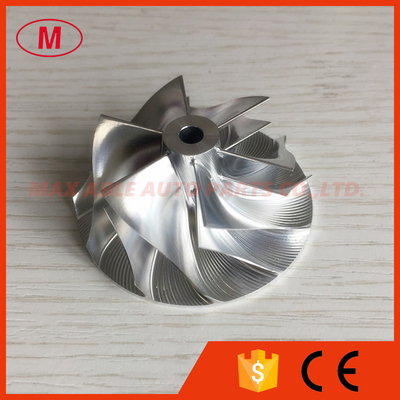

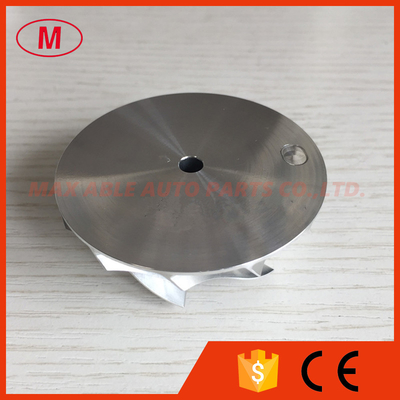

2.TD04H 15G 49189-40300 43.38/55.69mm 6+6 blades Turbo Billet/aluminun 2618/milling compressor wheel for 49189-00501 1401-404-415/49189-00540
3.Size:
Nose diameter:11.56mm
inducer:43.38mm
Exduder:55.69mm
Tip height:5.37mm
Superback:0.00mm
Bore size :5.00mm
bore type:through
Overall height:22.00mm
Trailing angle:45 degree
Cutback:0.0
SP Height angle:-6.00
Blades height:20.17mm
Splitter height:13.55mm
6+6 blades
Forward rotation
Tapered tip angle:0 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
