1. MODEL:TD05H Forward

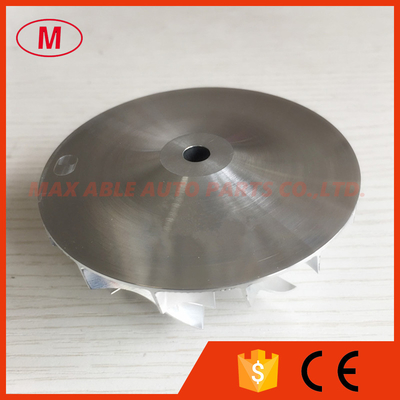

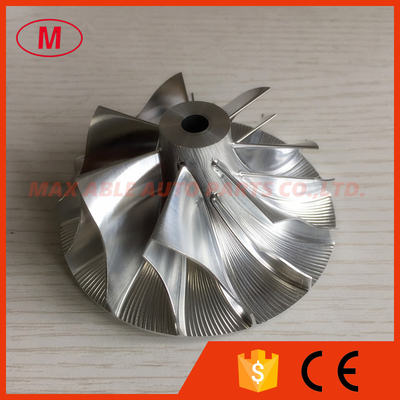

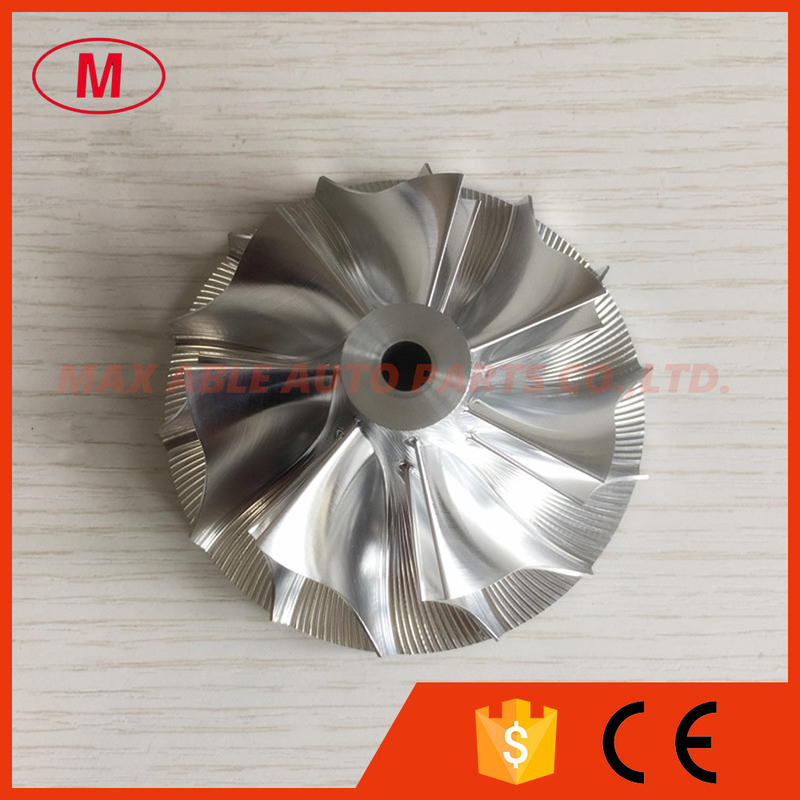

2. TD05H 59.05/76.13mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:16.74mm
Inducer:59.05mm
Exducer:76.13mm
Tip height:7.97mm
Superback:2.90mm
Overall height:35.00mm
Bore size:6.50mm
bore type:through
Trailing angle:80 degree
Blades height:26.98mm
Cutback:3.5mm
Splitter height:18.40mm
Sp height angle:-0.50
7 long 7 short
Forward rotation
Tapered tip angle:0 degree
It is custom size ,pleaes check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
