Brand Name: | NO |
Certification: | ISO |
Model Number: | TD05H |
Minimum Order Quantity: | 1PC |
---|---|
Price: | plaese discuss with me |
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | Western Union, MoneyGram, T/T,paypal |
Supply Ability: | 1000pcs |
1. MODEL:TD05H REVERSE

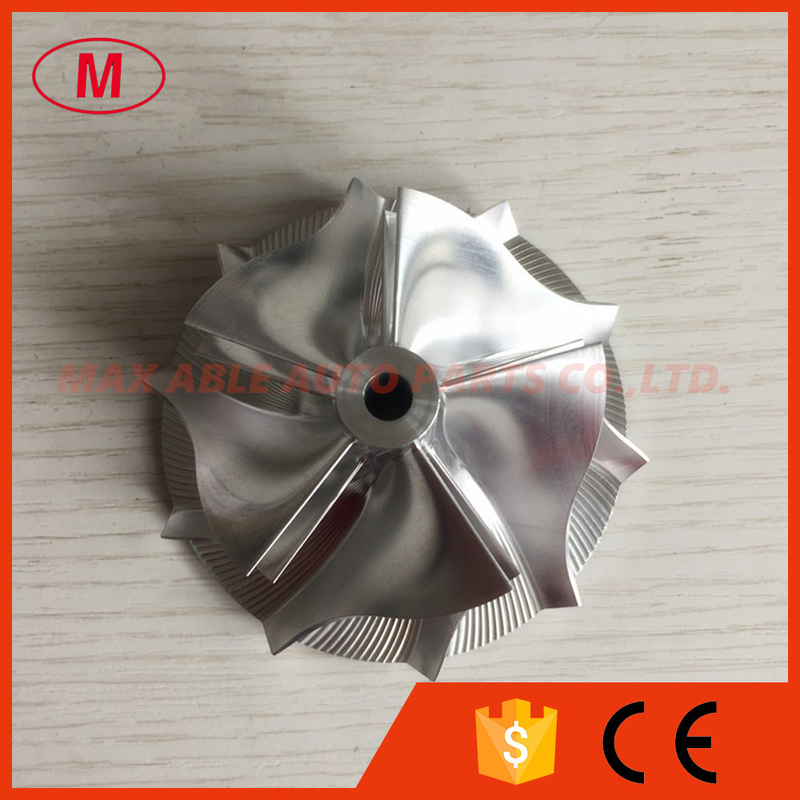

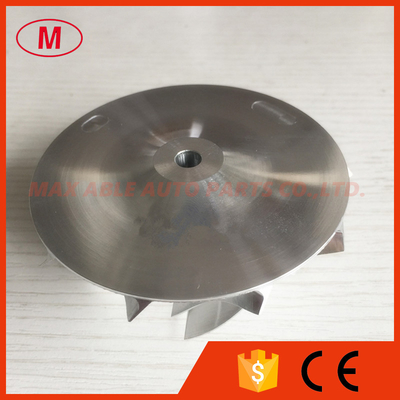

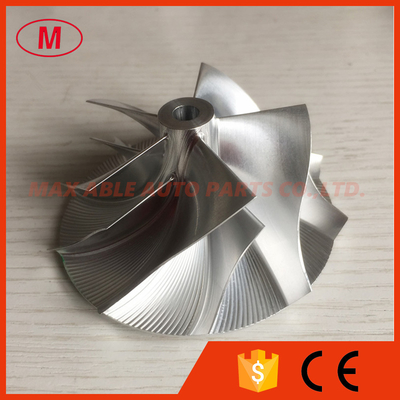

2. TD05H reverse 60.50/78.00mm 5+5 blades Turbocharger Billet/aluminum 2618/milling compressor wheel
3.Size:
Nose diameter:13.92mm
Inducer: 60.50mm
Exducer:78.00mm
Tapered tip exducer:83.54mm
Tip height:5.80mm
Superback:2.60mm
Overall height:37.01mm
Trailing angle:60 degree
bore size :6.50mm
Cutback:2.5
Blades height:31.90mm
Splitter height:20.90mm
SP Height angle:-1.60
5+5 Blades
Reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
