| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H forward

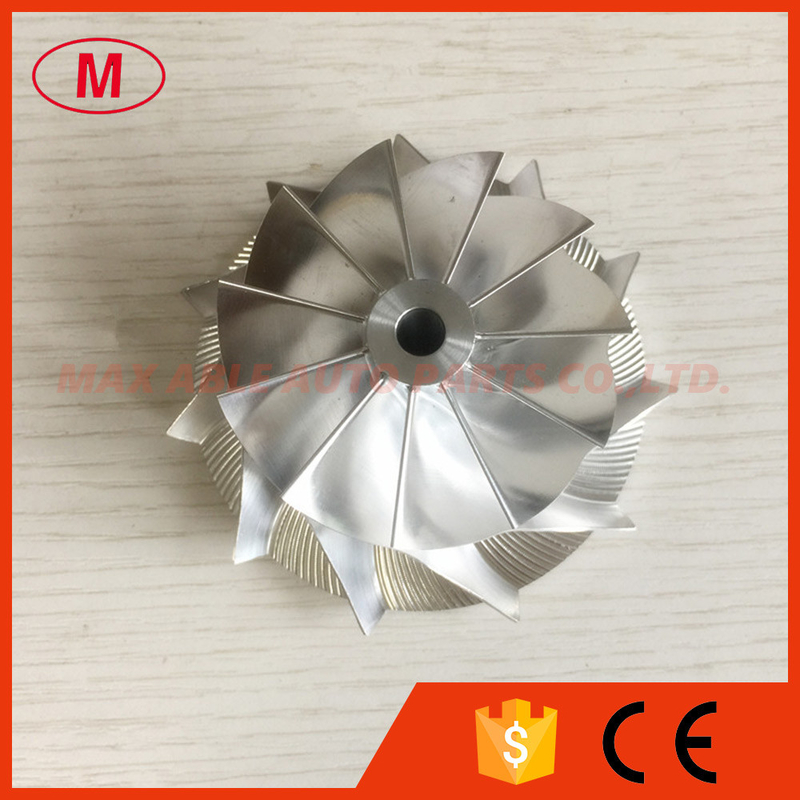

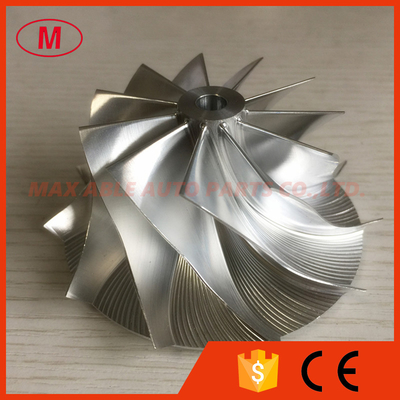

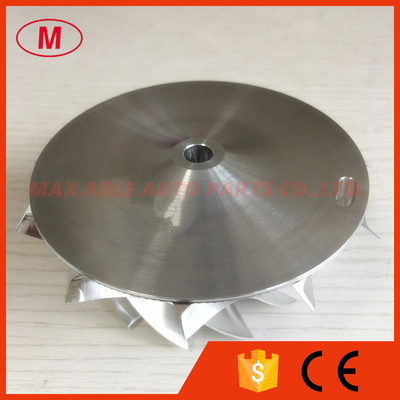

2.TD05H 49179-02712 56.24/75.00mm 11+0 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for 49179-02712
3.Size:
Nose diamter:14.37mm
inducer:56.24mm
Exduder:75.00mm
Tapered tip exducer:83.80mm
Tip height:5.40mm
Superback:2.70mm
Overall height:37.80mm
bore size :6.50mm
bore type:through
Trailing angle:70 degree
Blades height:33.30mm
Cutback:0.0
SP height angle:0.00
Splitter height:0.00mm
11+0 blades
Tapered tip angle:45 degree
Forward rotation
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
