Brand Name: | NO |
Certification: | ISO |
Model Number: | TD05H |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:TD05H forward

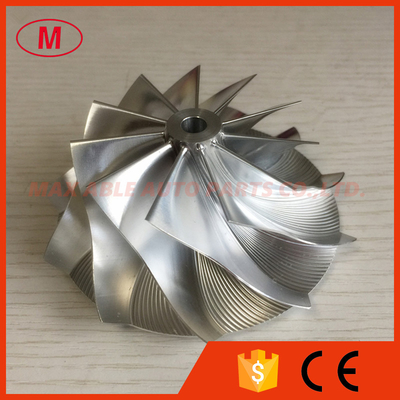

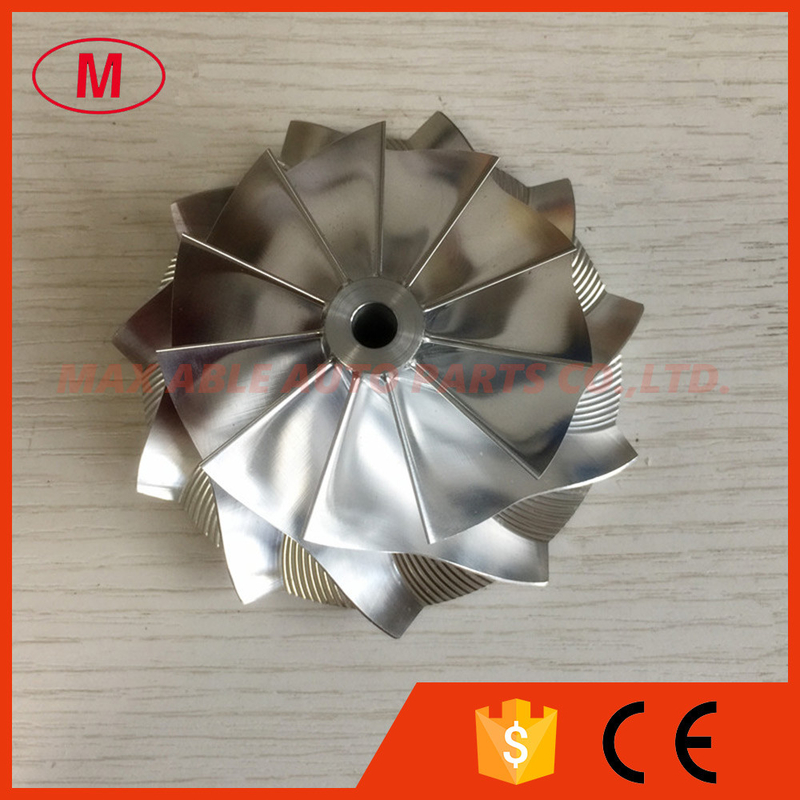

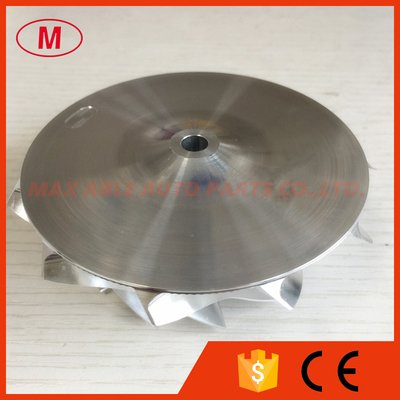

2.TD05H 62.45/82.36mm 11+0 blades high performance racing turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diamter:13.93mm
inducer:62.45mm
Exduder:82.36mm
Tapered tip exducer:91.17mm
Tip height:5.40mm
Superback:2.90mm
Overall height:35.00mm
bore size :6.50mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
SP Height angle:0.00
Blades height:30.43mm
Splitter height:0.00mm
11+0 blades
Forward rotation
Tapered tip angle:45 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced
The more models we also have.
