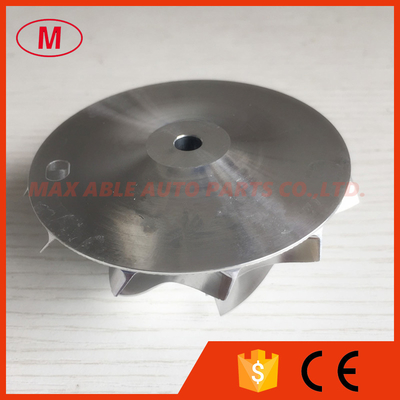

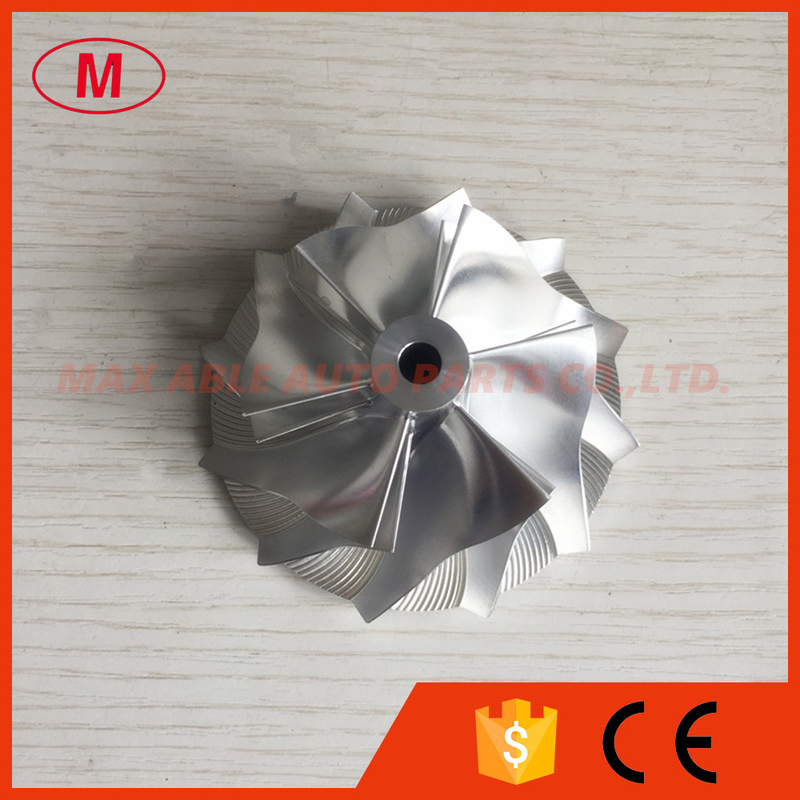

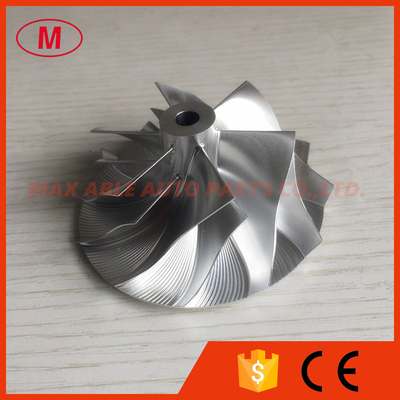

TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades turbo Billet compressor wheel

TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades turbo Billet compressor wheel

    • TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades turbo Billet compressor wheel
    • TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades turbo Billet compressor wheel
    • TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades turbo Billet compressor wheel
    • TD05H reverse 49179-02712 56.24/75.00mm 6+6 blades turbo Billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD05H

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000pcs
    Contact Now
    Detailed Product Description

    1. MODEL:TD05H reverse
    2.TD05H 56.24/75.00mm reverse 6+6 blades 49179-02712 turbo Turbocharger Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:15.05mm
    Inducer:56.24mm
    exducer:75.00mm
    Tapered tip exducer:80.58mm
    Tip height:5.83mm
    Superback:2.70mm
    Overall height:35.00mm
    bore size :6.50mm
    bore type:through
    Trailing Angle:55 degree
    Cutback:0.0
    Blades height:27.70 mm
    Splitter height:19.25mm
    SP height angle:-2.90
    6+6 blades reverse
    Tapered tip angle:30 degree
    It is custom size ,please check carefully before buying.
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
