| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H 25G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 25G/20G upgrade forward

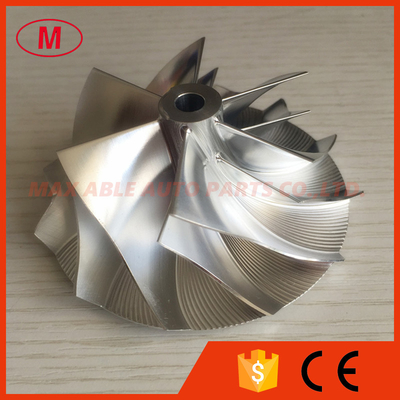

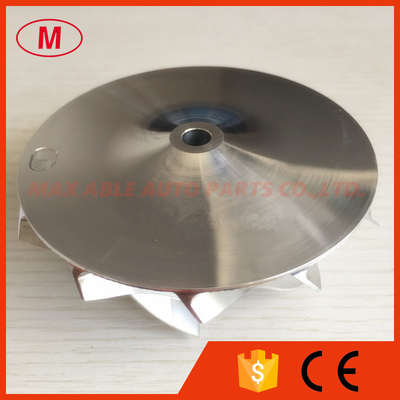

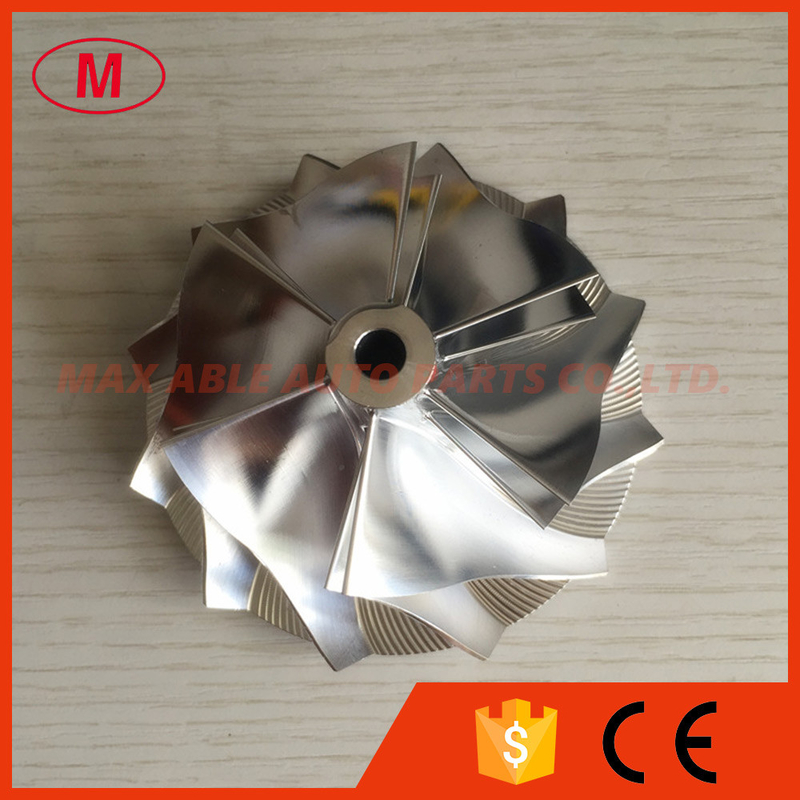

2.TD05H 25G/20G upgrade 60.50/78.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:14.07mm
Inducer:60.50mm
Exducer:78.00mm
Tapered tip exducer:83.54mm
Tip height:5.80mm
Superback:2.90mm
Overall height:33.70mm
bore size :6.50mm
bore type:through
Trailing angle:50
Cutback:0.0
Blades height:28.87mm
Splitter height:19.65mm
Sp height angle:-1.40
6+6 Blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the billet compressor wheels have been balanced.
