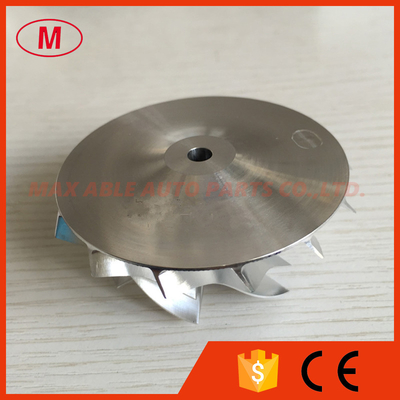

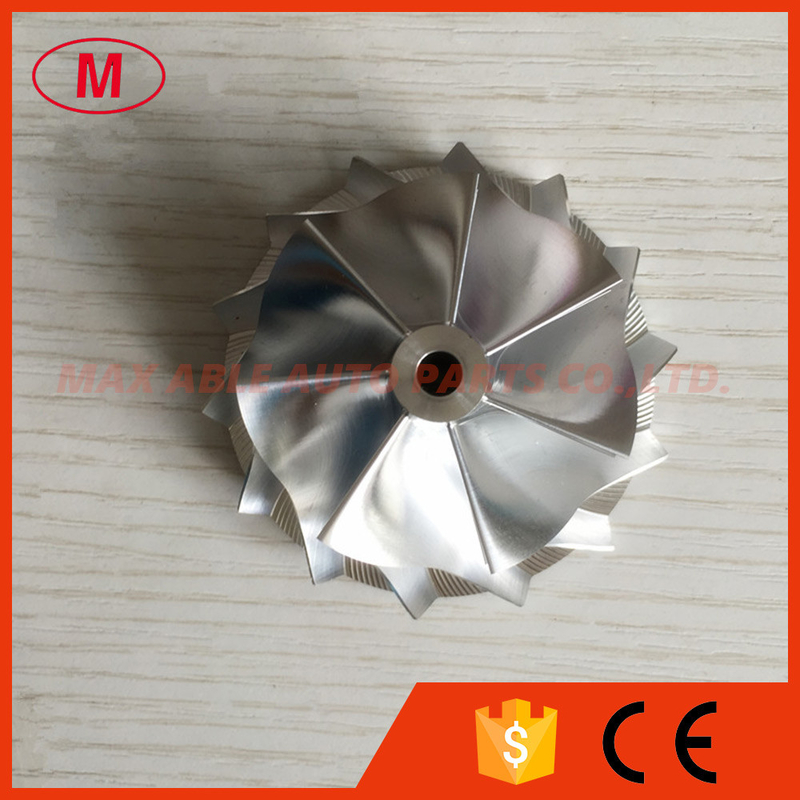

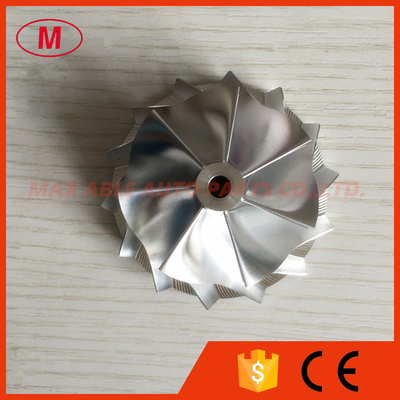

TD04HL 19T 46.02/58.00mm 7+7 blades 49189-X performance Turbo milling/billet compressor wheel

Model Number:	TD04HL 19T

Contact Now

Detailed Product Description

1. MODEL:TD04HL 19T forward

2.TD04HL 19T 46.02/58.00mm 7+7 blades 49189-X high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel.

3.Size:

Nose Diameter:10.87mm

Inducer:46.02mm

exducer:58.00mm

Tapered tip exducer:62.58mm

Tip height:4.97mm

Superback:1.90mm

Overall height:26.13mm

bore size :5.00mm

bore type:through

Trailing angle:60

Cutback:0.0

Blades height:22.40mm

Splitter height:14.85mm

Sp height angle:-6.90

7+7 blades

forward rotation
Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD04HL 19T 46.02/58.00mm 7+7 blades 49189-X performance Turbo milling/billet compressor wheel
