| Model Number: | TD04HL 13T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

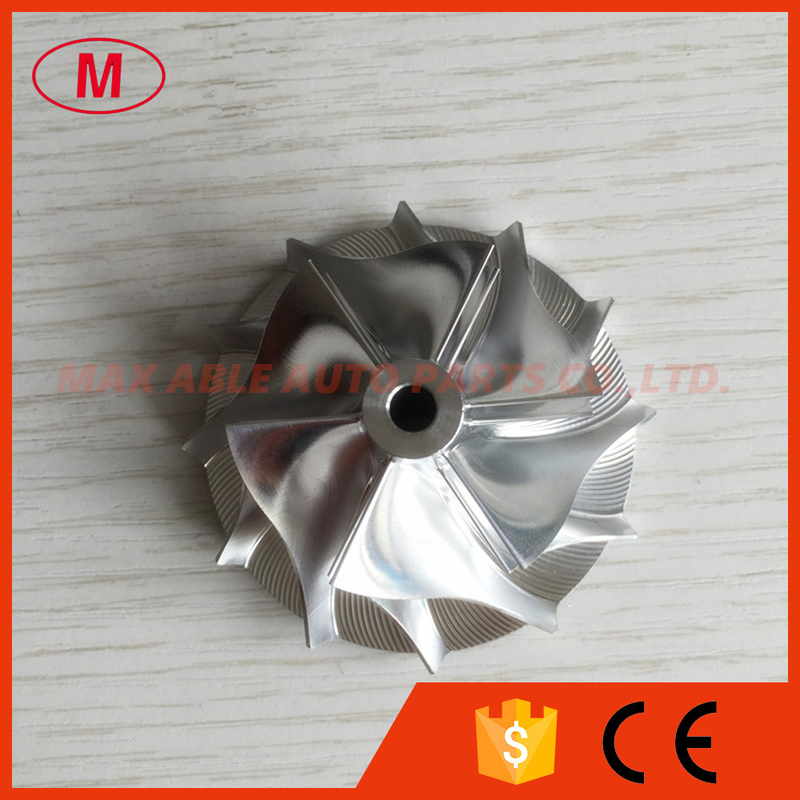

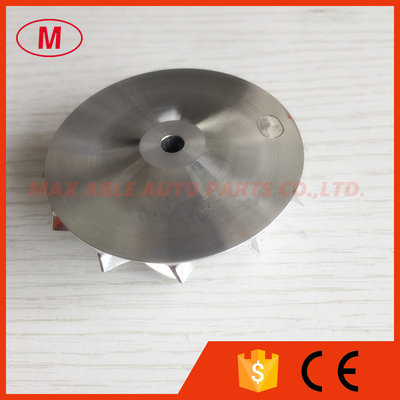

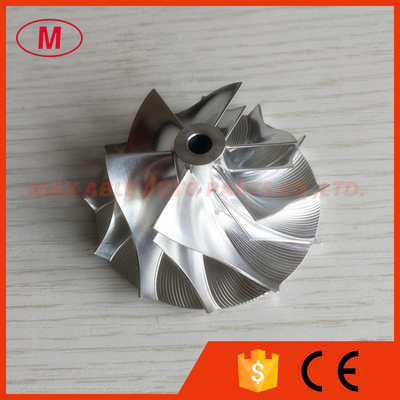

1.Model:TD04HL 13T 40.61/56.02mm 49377-04200HF 6+6 blades high performance turbo milling/aluminum 2618 billet compressor wheel
2.turbo Part no.:49377-04200HF 6+6 blades
3.SIZE:
Nose diameter:10.77mm
Inducer:40.61mm
Exducer:56.02mm
Tapered tip exducer:60.13mm
Tip height:4.56mm
Superback:1.83mm
Overall height:26.22mm
bore size :5.00mm
bore type:through
Trailing angle:60
Cutback:0.0
Splitter height:14.90mm
SP height angle:0.00
Blades height:22.38mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.Good quality and competitive price
5.all the billet wheels have been balanced.
