| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H FORWARD

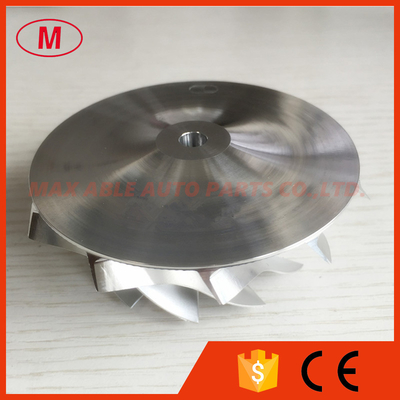

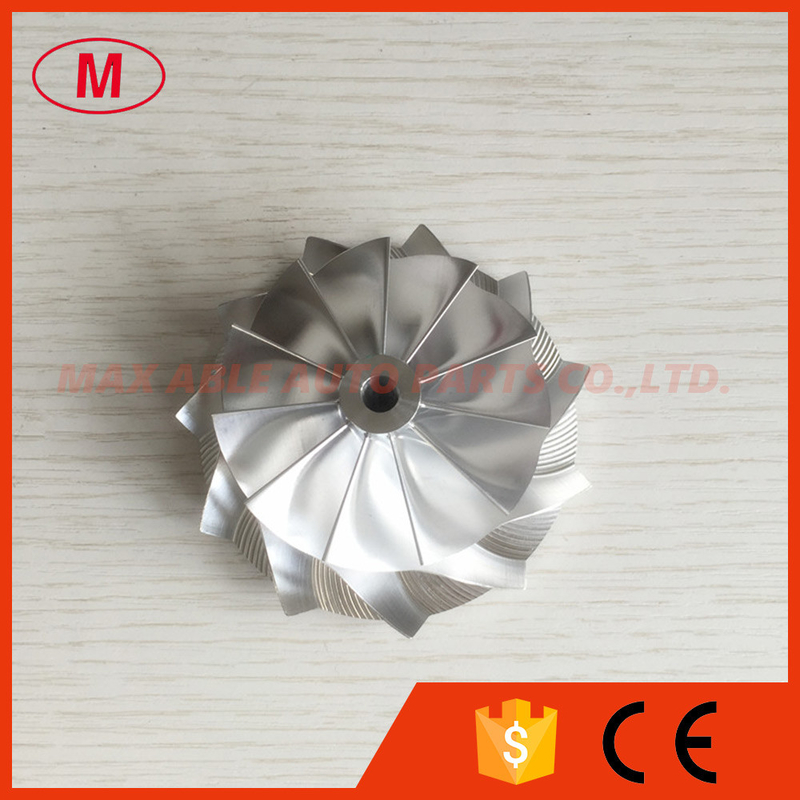

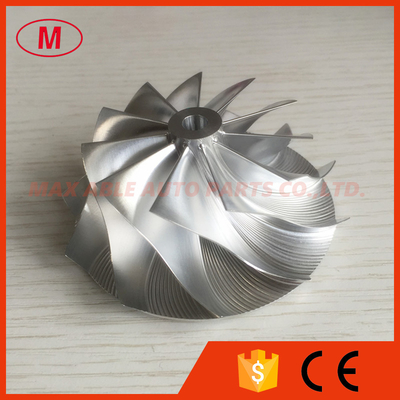

2. TD05H 59.05/76.13mm 11+0blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.93mm
Inducer:59.05mm
Exducer:76.13mm
Tapered tip exducer:83.13mm
Tip height:7.06mm
Superback:2.90mm
Overall height:34.10mm
Bore:6.50mm
bore type:through
Trailing angle:60
Blades height:28.73mm
Cutback:0.0
Sp height angle:0.00
Splitter height:0.00mm
11+0 blades
Tapered tip angle:30 degree
Forward rotation
Custom size ,please check the size carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheels have been balanced.
