| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD03 10T FORWARD

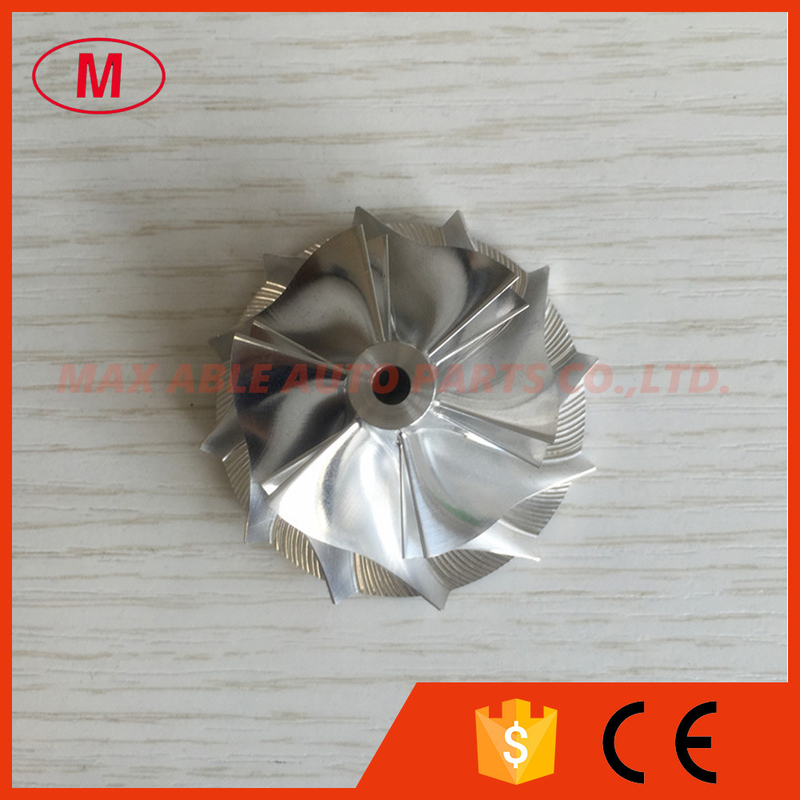

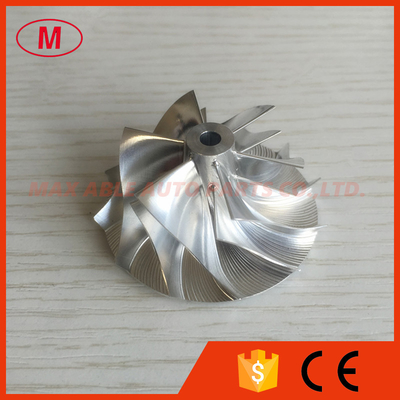

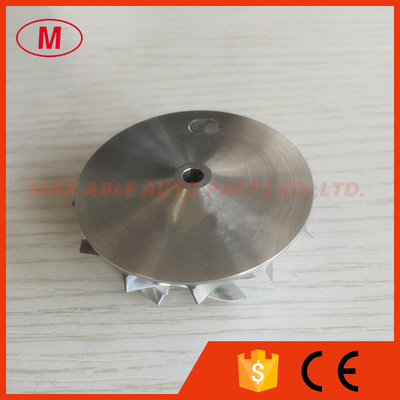

2.TD03 10T 49131-07005/49131-07015 35.57/46.00mm 6+6blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for N54B30 Twin Turbo
3.Size:
Nose diameter:9.13mm
Inducer:35.57mm
Exducer:46.00mm
Tapered tip exducer:49.58mm
Tip height:4.10mm
Superback:1.68mm
Overall height:22.49mm
Trailing angle:60
blades height:18.79mm
bore size :4.00mm
Bore type:through
Cutback:0.0
SP height angle:-1.50
Splitter height:13.30
6+6 Bladesmm
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced
we can also produce as your requirement.
