| Model Number: | TD05H 20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G FORWARD

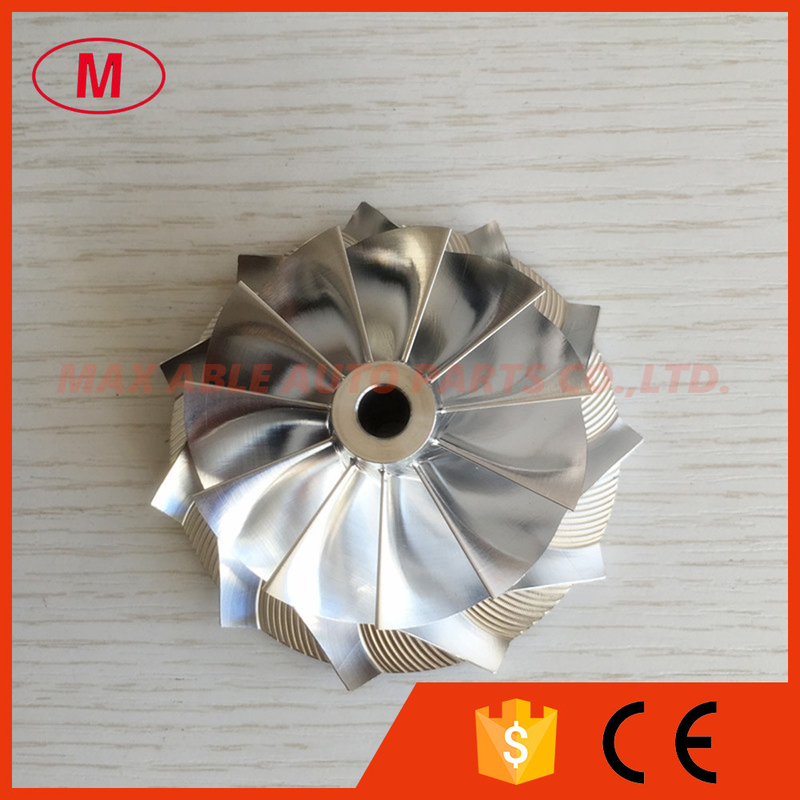

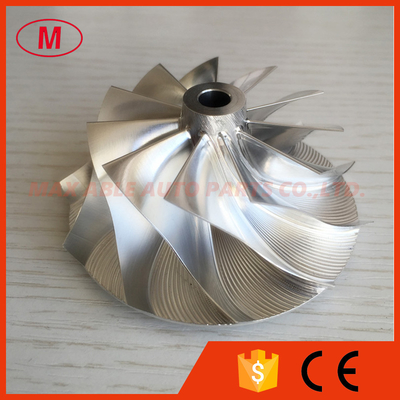

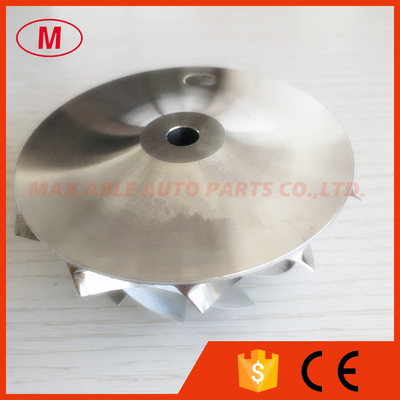

2.TD05H 20G 52.56/73.04mm 11+0 blades high performance Turbocharger aluminum 2618/milling/ Billet compressor wheel
3.Size:
Nose diameter:12.87mm
Inducer:52.56mm
Exducer:73.04mm
Tapered tip exducer :77.41mm
Tip height:4.79mm
Superback:2.90mm
Bore Size:6.50mm
bore type:through
Overall height:35.00mm
Trailing angle:50 degree
Cutback:0.0
SP Height angle:0.00
Blades height:28.90mm
Splitter height:0.00mm
11+0 blades
forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
