| Model Number: | TD04HL 20T |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD04HL 20T Forward

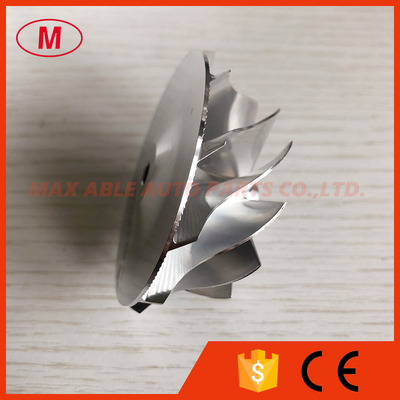

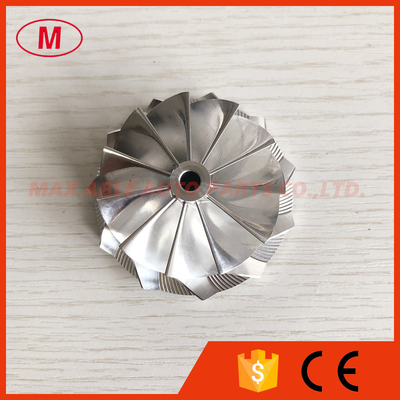

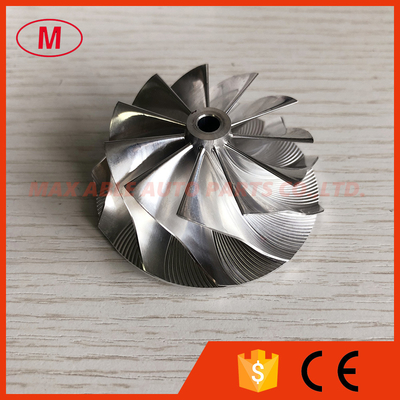

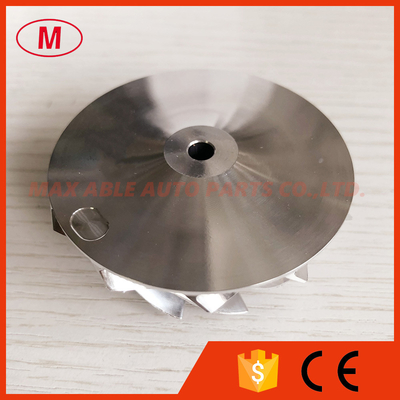

2. TD04HL 20T 49189-X 47.04/58.00mm 11+0 blades Turbocharger Billet/Milling/aluminum 2618 compressor wheel for 49189-07220
3.Size:
Nose Diameter:10.02mm
inducer:47.04mm
Exducer:58.00mm
Tapered tip exducer:60.37mm
Tip height:4.65mm
Overall height:26.13mm
Superback:1.90mm
Bore size:5.00mm
bore type:through
Trailing Angle:45
Cutback:0.0
SP height angle:0.00
Blade height:21.53mm
Splitter height:0.00
Tapered tip Angle:18 degree
11+0 blades
Fit for OE compressor housing
Forward rotation
4.High quality and competitive price.
5.Any questions please send email to me.
We have more size ,if you want ,please don't hesitate to contact me.
