| Model Number: | TD05H-20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G forward

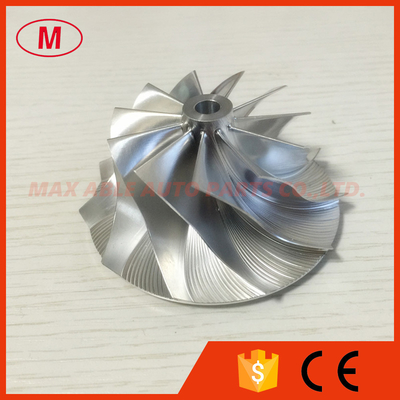

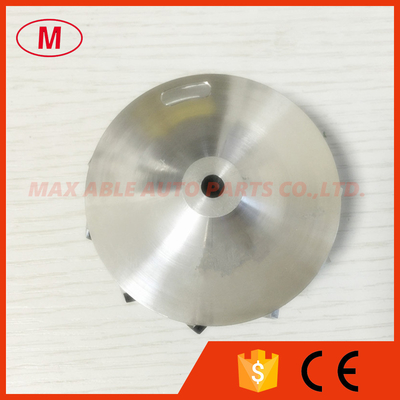

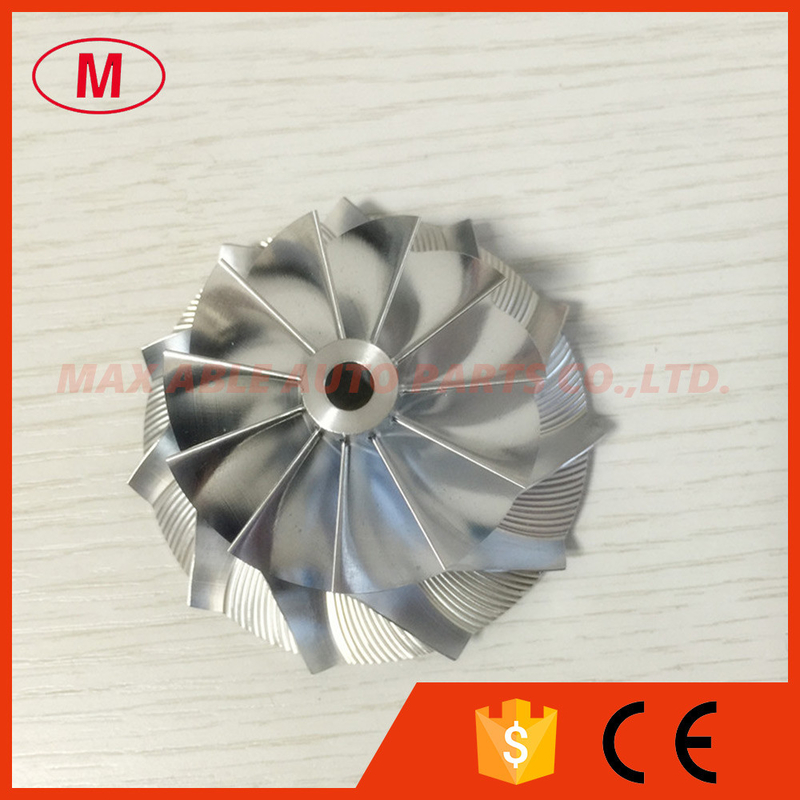

2.TD05H 20G 49179-43400 52.56/68.01mm 11+0 BLADES Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.80mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:31.50mm
Bore Size:6.50mm
bore type:through
Trailing angle: 50
Cutback:0.0
SP height Angle:0.00
Splitter height:0.00mm
Blades height:24.10mm
11+0 blades
Forward rotation
Tapered tip angle: 30 degree
It is fit for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
