| Model Number: | TD05H-20G |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:TD05H 20G forward

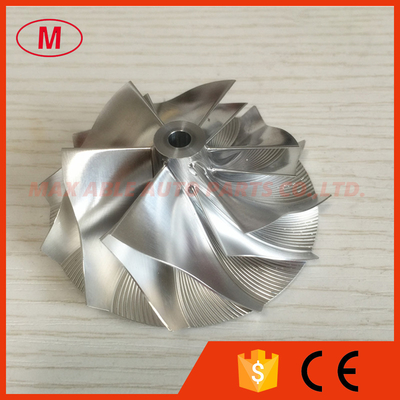

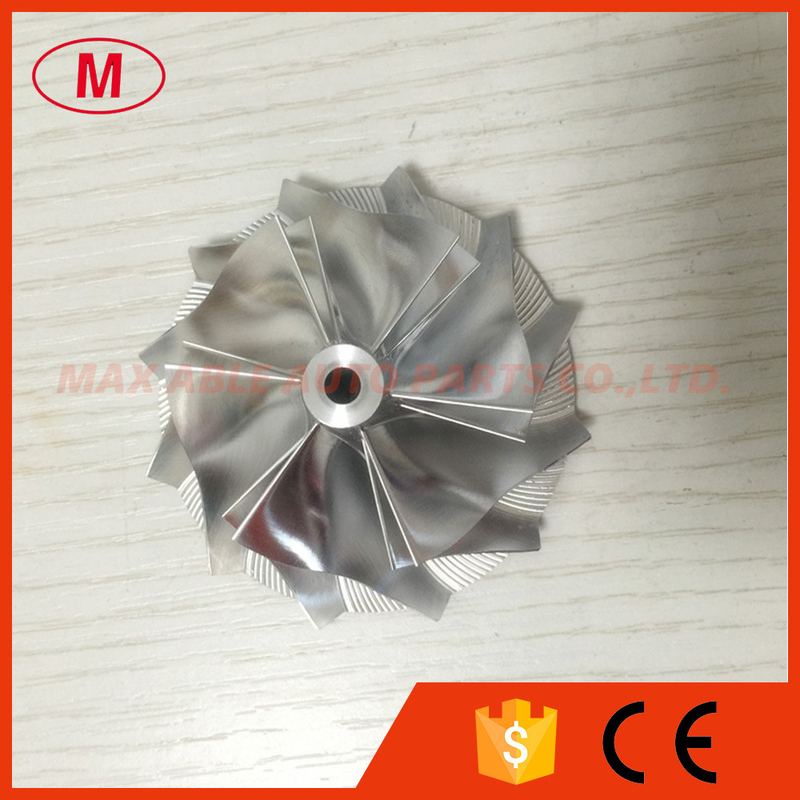

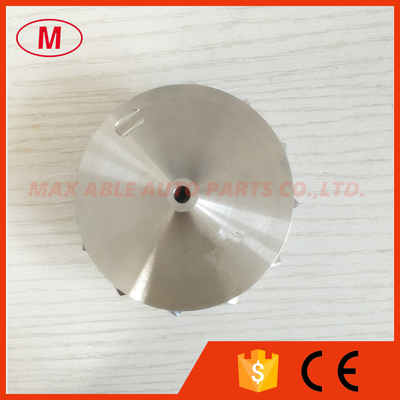

2.TD05H 20G 49179-43400 52.56/68.01mm 6+6 BLADES Turbocharger performance design high blade height Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer:52.56mm
Exducer:68.01mm
Tapered tip exducer :73.05mm
Tip height:5.37mm
Superback:2.90mm
Overall height:35.00mm
Bore Size:6.50mm
bore type:through
Trailing angle:45
Cutback:0.0
SP height angle:-8.50
Splitter height:20.20mm
Blades height:28.90mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
