| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:TD05H Forward rotation

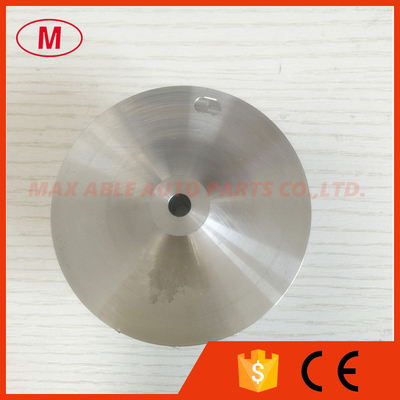

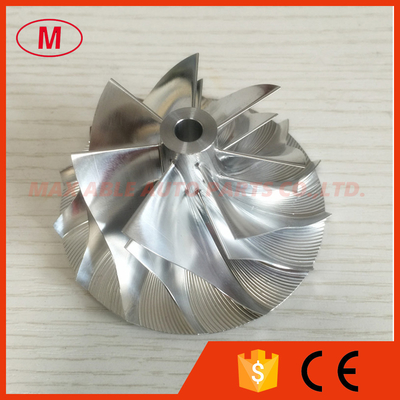

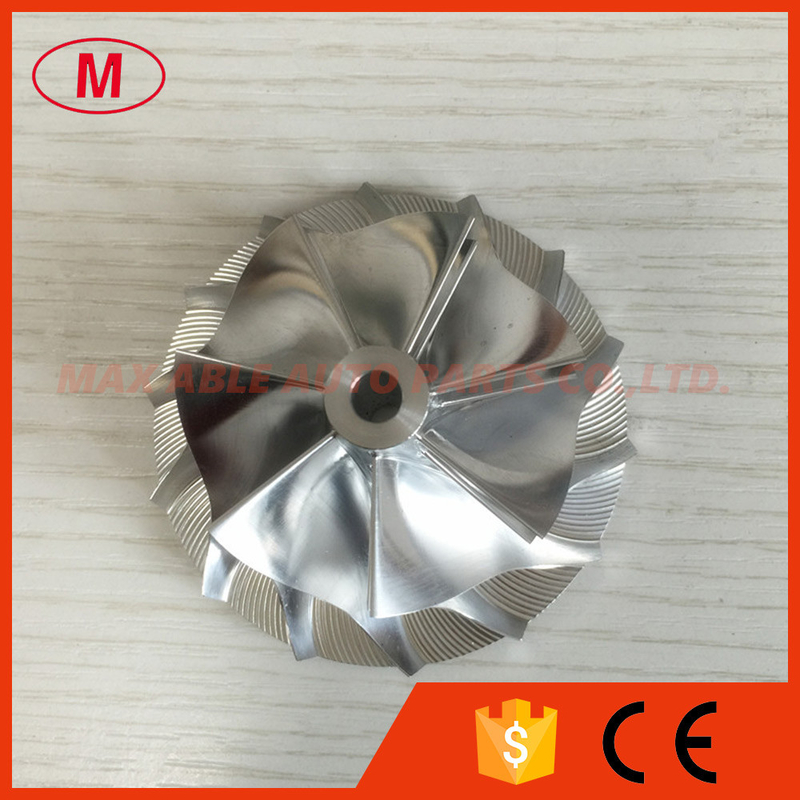

2. TD05H 55.50/76.13mm 7+7 blades billet/milling/aluminum 2618 turbo compressor wheel
3.Size:
Nose diameter:13.48mm
Inducer:55.50mm
Exducer:76.13mm
Tapered tip exducer:78.14mm
Tip height:5.02mm
Superback:2.90mm
Overall height:35.55mm
Bore size:6.50mm
bore type:through
Trailing angle:60 DEGREE
Cutback:-3.0
SP Height angle:-5.80
Blades height:29.74mm
Splitter height:20.10mm
7+7 blades
forward rotation
Tapered tip angle:14 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
