Model Number: | TD04HL 13T+ |
Minimum Order Quantity: | 1PC |
---|---|
Packaging Details: | neutral packing |
Delivery Time: | 3-7 days |
Payment Terms: | TT ,western union ,paypal |
Supply Ability: | 1000pcs |
1. MODEL:TD04HL 13T+ Forward

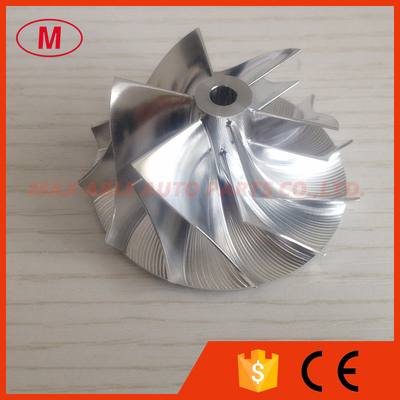

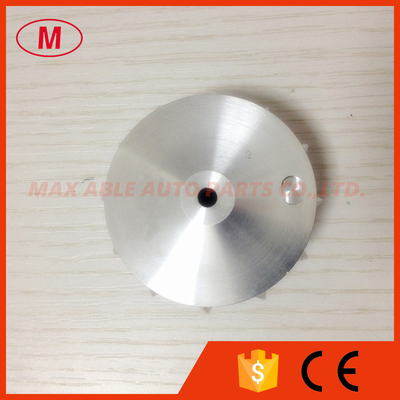

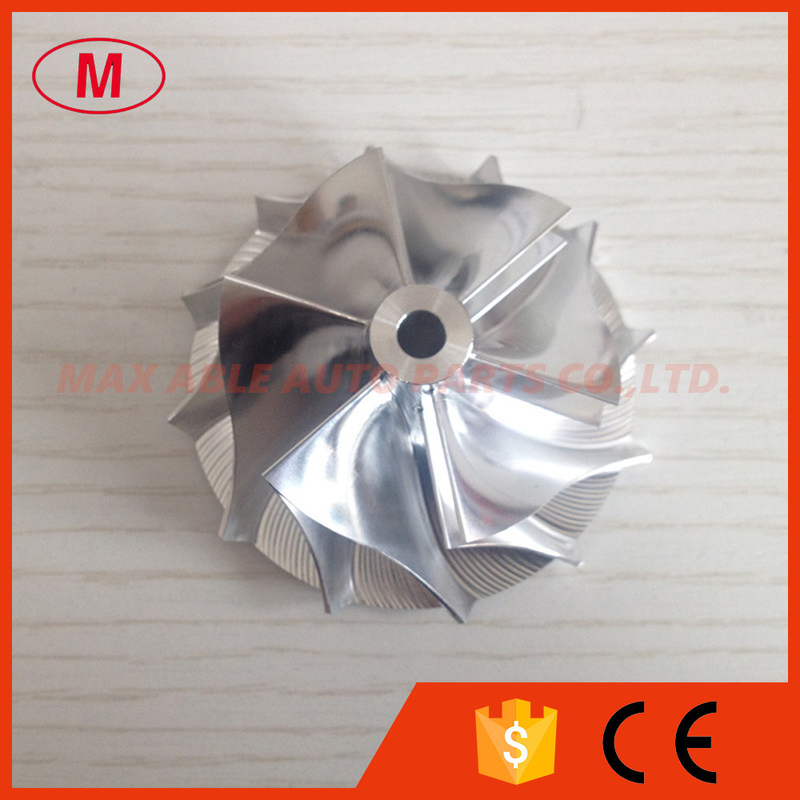

2. TD04HL 13T+ 43.61/56.02mm 49377-04200HF 6+6 blades high performanceTurbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.07mm
Inducer:43.61mm
Exducer:56.02mm
Tapered tip exducer:60.46mm
Tip height:4.85mm
Superback:1.83mm
Overall height:26.22mm
Bore size:5.00mm
bore type:through
Trailing angle:65
Cutback:0.0
Splitter height:15.40mm
SP height angle:-1.70
Blades height:22.18mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
We can produce as your requirement.
All the compressor wheels have been balanced.
